Design Guide | iC7 Series Liquid-cooled System Modules
1
2
3

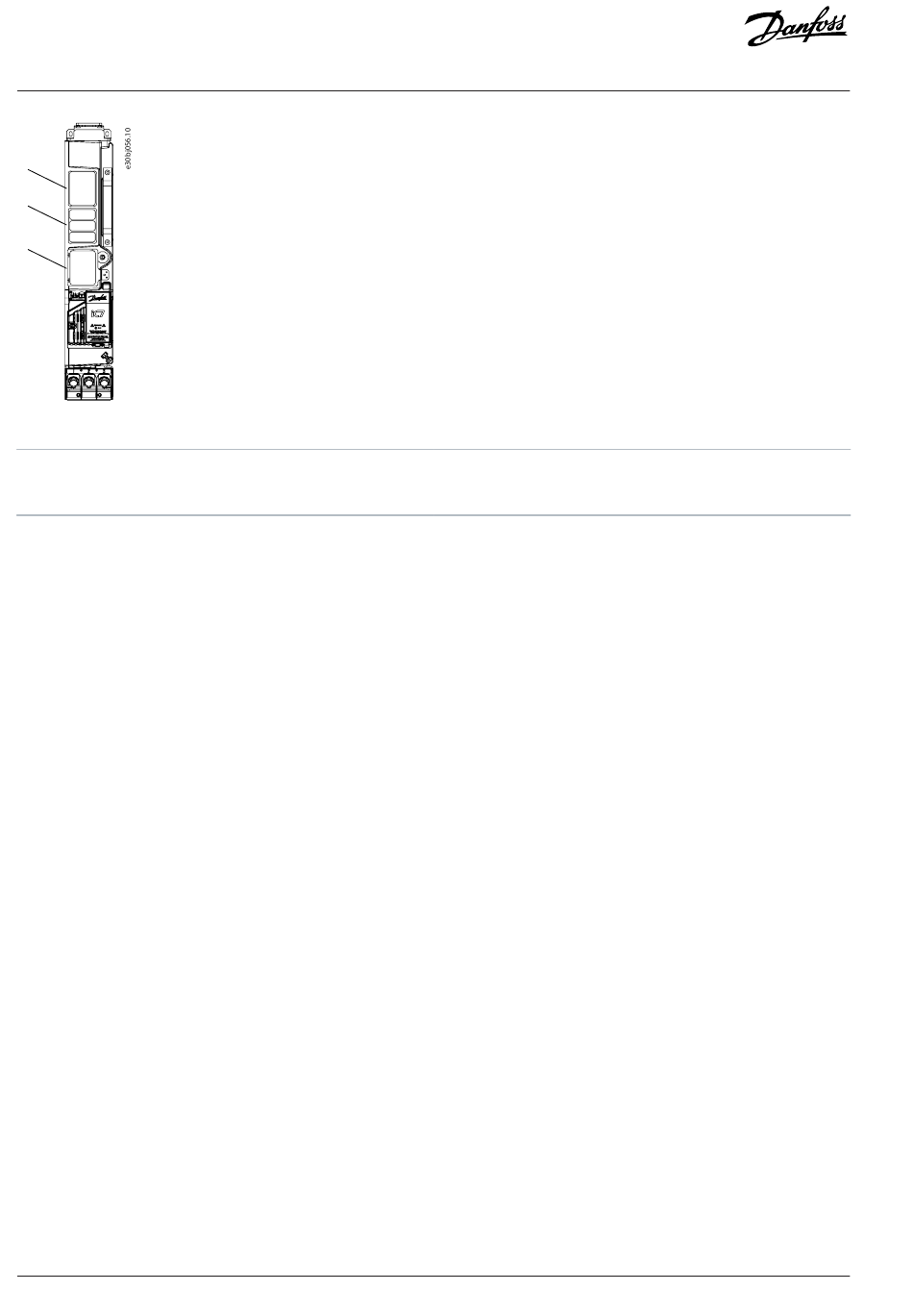

Figure 6: Locations of the Labels on the System Module
1
Power unit label
3
Product label

Labels on other Components

4.8.2
There is an identification label on the components to provide information about the part, and information to which product and system
modules the component belongs. It is important to match the components with the correct product and system modules.
The identification label on control units and star coupler boards includes:
Name of the component and information to which system modules the component belongs, for example, "Control for 4xAR12L" or
l
"Star for 3xIR10L".
The serial number (S/N) of the product to which the component belongs, for example DC1234XZ. This code is also shown in a small
l
QR code.
Code for the component, for example 137G2222.
l
QR code, which shows the model code of the product to which this component belongs.
l
There are similar identification labels on the integration units, filters, subassemblies, and other components. For example, the label on L
Filters includes:
Information about the filter.
l
The serial number (S/N) of the product to which the filter belongs.
l
24
| Danfoss Drives Oy © 2024.03
2
Approvals label, service label, and product modified label
