Design Guide | iC7 Series Liquid-cooled System Modules
Control for 5 X AR 1 0 L
DC 1 2 3 4 X Z
137H0741
1

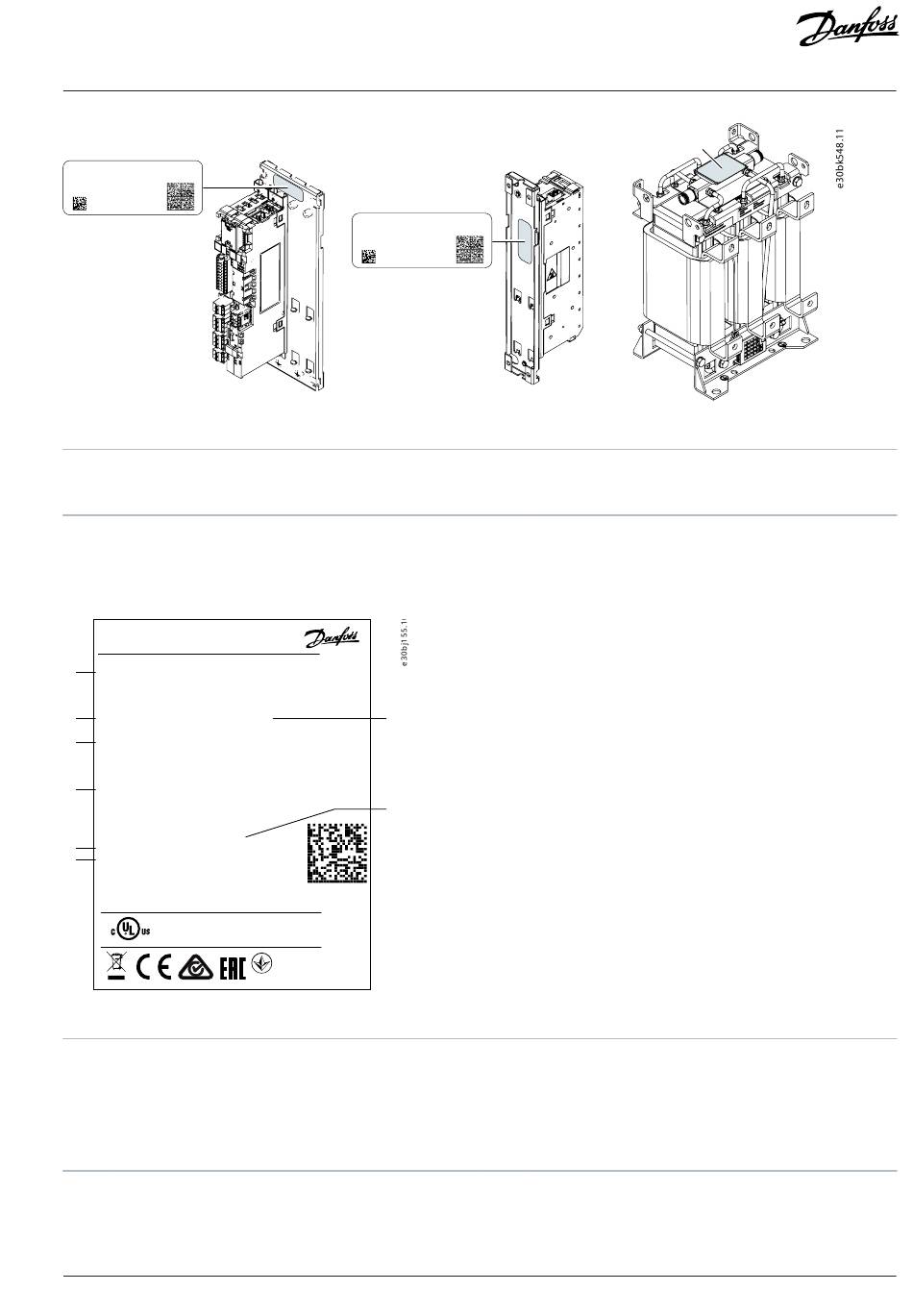

Figure 7: Locations of Labels on the Components
1
Label on the control unit
3
Label on the L Filter

Product Label

4.8.3
The product label gives information about the product.
iC7-60
1
T/C: iC7-60SLIN07-300AE00F4+ AEU2+ AKFX
+ ANN1+ BAMT+ BDC1+ BEF2+ BF01+ CAC1
+ CBT0+ CCV0
2
P/N: 123456789 S/N: 999X 9999
4
POWER: 600kW (690V)/ 700 HP (600V) High overload
IN: 460-1200 VDC (CE), 460-1000 VDC (UL)
OUT: Motor 3x 0-Vin 0-590Hz 923A/615A
5
POWER: 400kW (690V)/ 500 HP (600V) Low overload
IN: 460-1200 VDC (CE), 460-1000 VDC (UL)
OUT: Motor 3x 0-Vin 0-590Hz 902A/820A
Liquid Cooling Pmax: 500 kPA
6
ENCL: IP00/UL OPEN TYPE
7
Tamb 60 °C, T liquid 45 °C
Danfoss A/S
Nordborgvej 81, 6340 Nordborg
Denmark
UL1 SCCR 100 kA UL volt. 525-600V
UL2
Figure 8: Product Label for iC7 Series Liquid-cooled System Modules
1
Model code of the product
3
Serial number
5
Power, input, and output ratings for low overload
7
Temperature ratings for ambient air and coolant
Danfoss Drives Oy © 2024.03
S tar for 5 X AR 1 0 L
DC 1 2 3 4 X Z
137G2222
2
3
8
MADE IN
FINLAND
089
2
Label on the star coupler board
2
Product number
4
Power, input, and output ratings for high overload
6
Protection rating
8
Maximum continuous coolant pressure
AJ475942178716en-000101 / 172K2848A |
