Design Guide | iC7 Series Liquid-cooled System Modules

I/O and Relay Option Connections

8.8

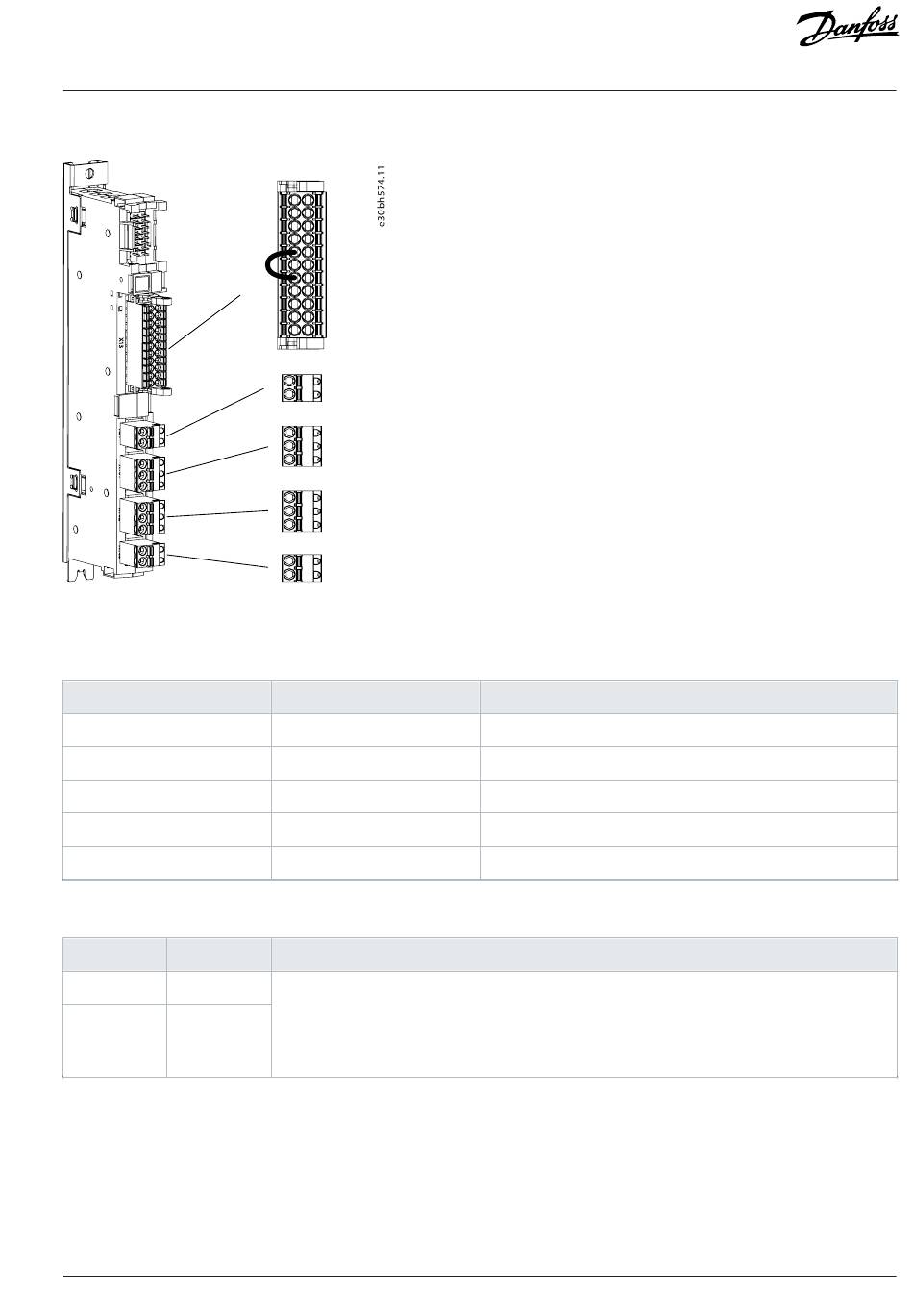

Figure 103: I/O and Relay Option Terminal Block and Terminal Numbering
Table 28: I/O and Relay Option Signals
Terminal
X13
X51
X101
X102
X103
Table 29: I/O Terminal Signals (X13)
Terminal
Function
11
+24 V
out
12
+24 V
out
Danfoss Drives Oy © 2024.03
X13
11
12
13
14
15
16
17
18
19
20
21
22
23
24
31
32
33
34
35
36
37
38
X51
71
72
X101
1
2
3
X102
4
5
6
X103
7
8
Function
I/O terminal
Thermistor input
Relay 1
Relay 2
Relay 3
Description
Control voltage output.
24 V DC (-15...+20%)
Maximum current 200 mA
Short-circuit protected
Connector type
2 x 11 spring force connector 0.2–1.5 mm
1 x 2 spring force connector 0.25–2.5 mm
1 x 3 spring force connector 0.25–2.5 mm
1 x 3 spring force connector 0.25–2.5 mm
1 x 2 spring force connector 0.25–2.5 mm
AJ475942178716en-000101 / 172K2848A |
2
2
2
2
2
101
