Design Guide | iC7 Series Air-cooled System Modules

Labels on the System Module

4.10
To provide information about the product and the system modules, several labels are placed on the modules.
Product label
l
Includes the model code and other information about the product. See
¢
Code.
When the product includes several power units, the product label is placed on the left-most power unit, and the other units
¢
have only power unit labels.
Power unit label
l
Includes information about the power unit.
¢
The information on the label is specific to each power unit.
¢
Product modified label
l
List of changes done to the system module.
¢
See 9.2 Using the Product Modified
¢
2

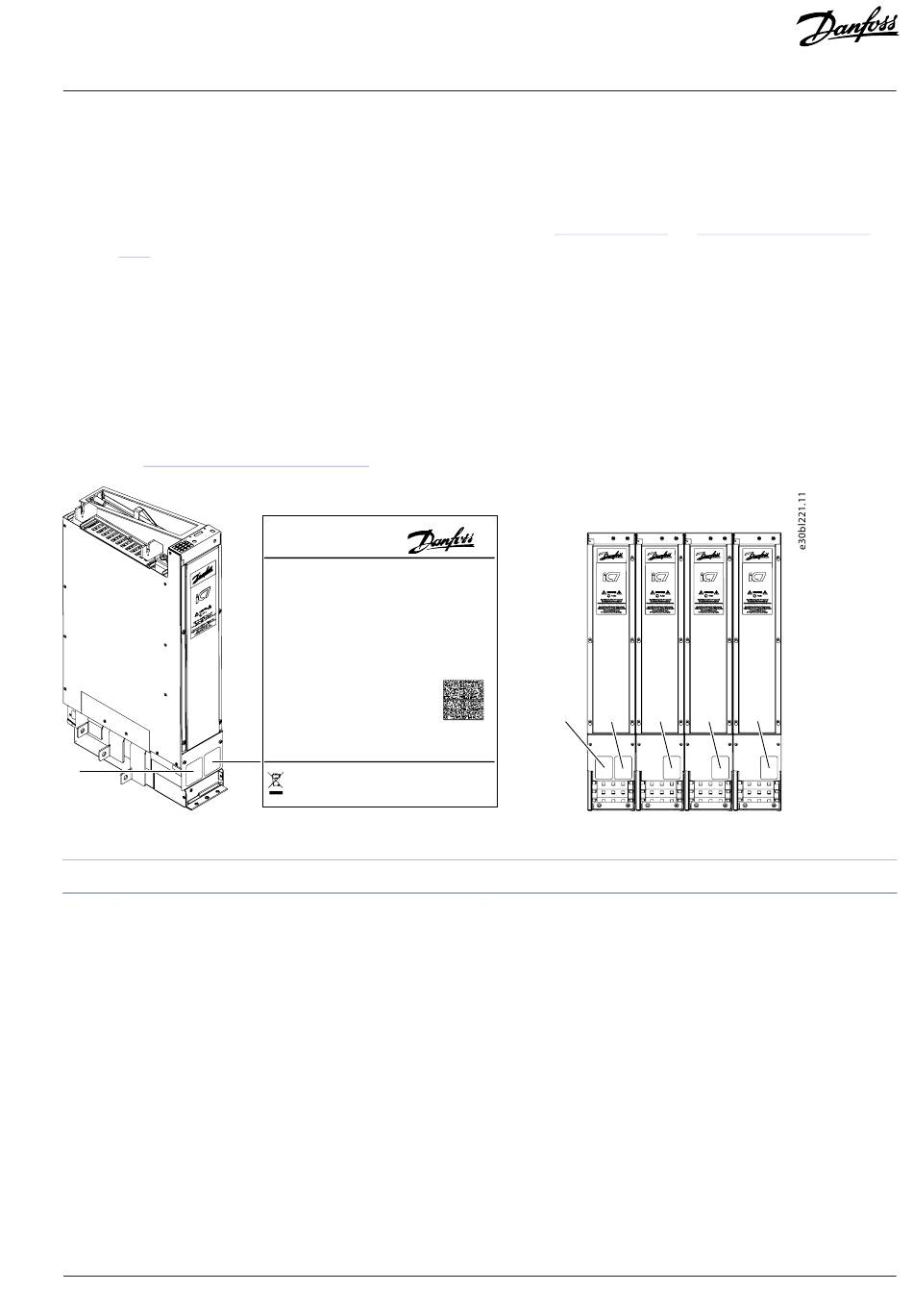

Figure 6: Locations of the Labels on System Modules
1
Power unit label

Labels on Other Components

4.11
There is an identification label on the components to provide information about the part, and information to which product and system
modules the component belongs. It is important to match the components with the correct product and system modules.
The identification label on control units and star coupler boards includes:
Name of the component and information to which system modules the component belongs, for example, "Control for 4xAR12" or
l
"Star for 3xIR10".
The serial number (S/N) of the product to which the component belongs, for example DC1234XZ. This code is also shown in a small
l
QR code.
Code for the component, for example 137G2222.
l
QR code, which shows the model code of the product, to which this component belongs.
l
Danfoss Drives Oy © 2024.03
Label.
1
iC7-Automation
Power Unit 1 / 4 for
M/C :IC7-60SA3A05-1630E00F3
+AE10+AJFX+AKFX+BAMT+BDC1+BEXX+BF20+BGK1+BH15+BK03+ BL15
+CAX0+DAAU+EGIN+EHEN
Main P/N: 137G1990 Main Product S/N: DC1234XX - 1234 - DC
Power Unit P/N: 141H7552
Power Unit S/N: DC1234XX
Air Cooled
ENCL :IP00 / OPEN TYPE
Tamb: 40°C/104°F
Protection class 1 AR11
SCCR: 100kA
DK-6430 Nordborg
www.danfoss.com
MADE IN FINLAND
4.12 Product Label
2 1
Danfoss A/S
2
Product label
and 4.8 Description of the Model
1 1 1
AJ389643111587en-000101 / 172F6361A |
