Summary of Contents for MICRO-EPSILON interferoMETER IMS5200

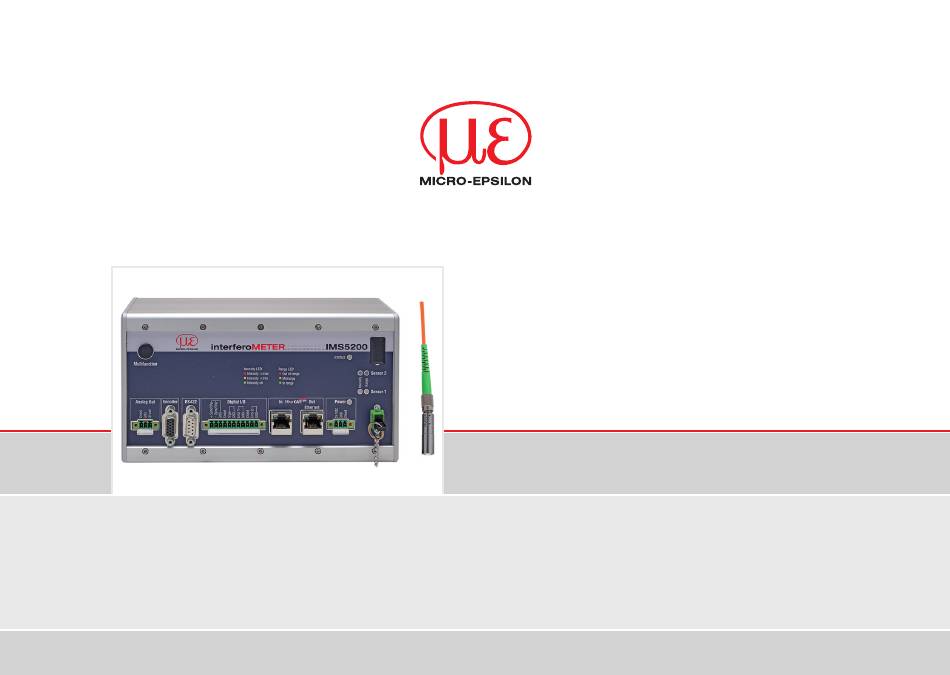

Page 1 Quick Manual interferoMETER IMS5200-TH IMS5200MP-TH...
Page 2 They are available at: Koenigbacher Str. 15 94496 Ortenburg / Germany https://www.micro-epsilon.com/download-file/man--interferometer-5200--en.pdf Tel. +49 (0) 8542 / 168-0 Fax +49 (0) 8542 / 168-90 EtherCAT® is registered trademark and patented technology, e-mail info@micro-epsilon.com licensed by Beckhoff Automation GmbH, Germany. www.micro-epsilon.com...
Page 3 General General Symbols used The following symbols are used in this document: CAUTION Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE Indicates a situation that may result in property damage if not avoided. Indicates a user action.
Page 4 General Avoid shocks and impacts to the sensor and the controller. NOTICE > Damage to or destruction of the components Never kink optical fibers or bend them in thight radii. > Damage to or destruction of the optical fibers; failure of measurement device Protect the ends of the optical fibers against contamination >...
Page 5 Operating Modes Operating Modes Ambient pressure Atmospheric pressure According to EN 61000-6-3 / EN 61326-1 The interferoMETER measuring system measures thick- (Class B) and EN 61 000-6-2 / EN 61326-1 nesses with high precision on transparent and multi-lay- er materials, e.g., glass or coatings, at a wavelength of Glossary 570 nm.
Page 6 Setup, Connection Options Setup, Connection Options A more detailed description of the connection options is available in the operating instructions. Connect the components together and mount the sensors into the clamps. Sensor Cable 2-Port Sensor and controller are connected through an Switch / EtherCAT optical fiber.
Page 7 Setup, Connection Options General Rules Mounting, Mounting Adapter As a matter of principle, avoid: The sensors use an optical measuring principle that - any contamination of the connector, e.g., dust or allows for measurements in the nm range. finger prints Ensure careful handling during installation and - unnecessary mating cycles.
Page 8 Electrical Connectors, IMS5200 Electrical Connectors, IMS5200 Description Comments 0 ... 5 V; 0 ... 10 V; R appr. 50 Ohm Analog Out Voltage output 5.5 V / 10.9 V with error, outside measuring range U/I out 4 ... 20 mA; R ≤...
Page 9 LEDs Controller LEDs Controller Power on Green Supply voltage available No error Status If EtherCAT is active, meaning of the LED is conform with the Ether-CAT guidelines. Signal in saturation Yellow Signal too low Green Signal ok No target object, or target object outside the operating range. The expected number of peaks was not found or it was not possible to assign a thickness.
Page 10 LEDs Controller Button Multifunction The Multifunction button of the controller has multiple functions. It enables, e.g., to operate the light source. The button is factory-set to the LED on/off feature. Set / reset Starts or stops the master measurement of the selected signals master value Key function LED on/off...
Page 11 The start screen of the controller software is now dis- played in the web browser. You can check the IP address of the controller, that are connected to a PC / network, with the sensorTOOL.exe program. This program is available online at https://www.micro-epsilon.com/download/software/sen- sorTOOL.exe. IMS5200-TH / IMS5200MP-TH Page 11...
Page 12 Initial Operation Positioning the Target, Thickness Measurement The visible light spot helps you align the sensor with the The LED Range on the controller front indicates the target during commissioning. position of the target in relation to the sensor. Turn on or off the light source in the menu Settings > No target or target outside the System settings.
Page 13 Initial Operation Presets, Measurement Configuration Common measurement configurations (presets) for various targets are stored on the controller. This allows you to quickly start with your individual measurement task. In a preset the basic features like peak or material selection and calculation functions are already set.
Page 14 Initial Operation Signal Quality Using the Signal quality function, you can influence the measuring rate and the respective averaging. Averaging with the Median function is specified by the preset. The subsequent moving averaging is specified by the Signal quality function. Averaging Description In the signal quality section, you can switch be-...
Page 15 Initial Operation FFT Signal Check Go to the Measurement chart menu. Show FFT signal display with FFT. The signal in the chart window shows the target thick- ness. Left 0 % (small thickness) and right 100 % (large thickness). The corresponding measured value is marked by a vertical line (peak marking).
Page 16 Initial Operation Number of Peaks Define the number of peaks of the FFT signal used for evaluation in thickness measurement. The number of peaks can be selected in the Settings > Data recording > Number of peaks. This function is available for the IMS5200MP system: a maximum of 5 layers can be evaluated. Make sure to count the peaks in the correct manner, see Chap.
Page 17 Initial Operation Example of glass with varnish and gap, measurement peak sorting: First, selected material IMP-TH Peak 1 Peak 4 Glass Peak 3 Peak 5 Peak 6 Peak 2 Range [%] The IMS5200MP controller can also measure the thickness of combined layers of the same material. A material does not necessarily have to be selected for layer 4.
Page 18 Initial Operation Measpeak Sorting The selection of peak/peaks dictates which region in the signal is used for the thickness measurement. Switch to material selection by going to Settings > Data recording. Switch to the chart type FFT. Choose between First peak and Highest peak. IMS5200 IMS5200MP Peak 4...
Page 19 Initial Operation In the case of a target consisting of several transparent layers, the material must be assigned for each layer. The mate- rial selection for a thickness measurement starts with the thinnest layer (layer 1) independent of the physical arrange- ment in the measuring object, see Chap.
Page 20 Initial Operation Material Selection The refractive index needs to be corrected in the controller for an exact thickness measurement. Only air may be pres- ent between the sensor face and the measuring object (Material Infront); other media such as water or alcohol are not permissible.
Page 21 Initial Operation The characteristic of the following material is also required for calculating the thicknesses. Click the icon to change an existing entry. Click the icon to add another material. Click the icon to save another or changed material. Click the icon to cancel the operation without saving. Click the icon to delete the entry.
Page 22 Initial Operation witch to material selection by going to Settings > Data recording. Assign the materials to the individual layers according to the target used. Peak 1 Layer 1 Peak 2 Layer 2 Peak 4 Compared to the example on the left, the Peak 4 Peak 3 Layer 3...
Page 23 Initial Operation Output Values Output value Description Scaling Unit 01ABS (2048 x 16Bit) FFT signal 2047 value / 2048 * 100 01SHUTTER Exposure time 400000 value / 40 µs 01ENCODER1 Encoder UINT32_MAX value Encoder ticks 01ENCODER2 Encoder UINT32_MAX value Encoder ticks 01ENCODER3 Encoder UINT32_MAX...
Page 24 Thickness Measurement, Web Page Display Thickness Measurement, Web Page Display Align the sensor vertically to the target object. Then, move the sensor (or the target) closer, until you more or less reach the working distance for your sensor. Once the object is within the sensor’s measuring range, the Range LED (green or yellow) on the front of the controller will light up.
Page 25 Thickness Measurement, Web Page Display The current values for distance, exposure time, current measuring rate and time stamp are displayed in the text boxes above the graphic. Errors are displayed as well. Mouseover feature. When moving the mouse over the graph, curve points are highlighted with a circle symbol while the corresponding values are displayed in the text boxes above the graph.
Page 26 Data Output, Interface Selection Data Output, Interface Selection The controller supports - three digital interfaces that can be used in parallel for data output, ƒ Ethernet: enables fast data transfer, but provides no real-time capabilities (packet-based data transfer). Both measurement and FFT data can be transferred e.
Page 27 Set IP Address Set IP Address Change to the menu Settings > Outputs > Ethernet Settings and enter the new IP address. Click on Apply settings to confirm. Start the web interface with the new IP address. Save the new device settings. Click on Save settings. Switching between Ethernet and EtherCAT You can switch between Ethernet and EtherCAT using an ASCII command, the web interface or an EtherCAT object.
Page 28 MICRO-EPSILON or to your distributor / retailer. MICRO-EPSILON undertakes no liability whatsoever for damage, loss or costs caused by or related in any way to the product, in particular consequential damage, e.g., due to...
