1.5 COMPONENT IDENTIFICATION

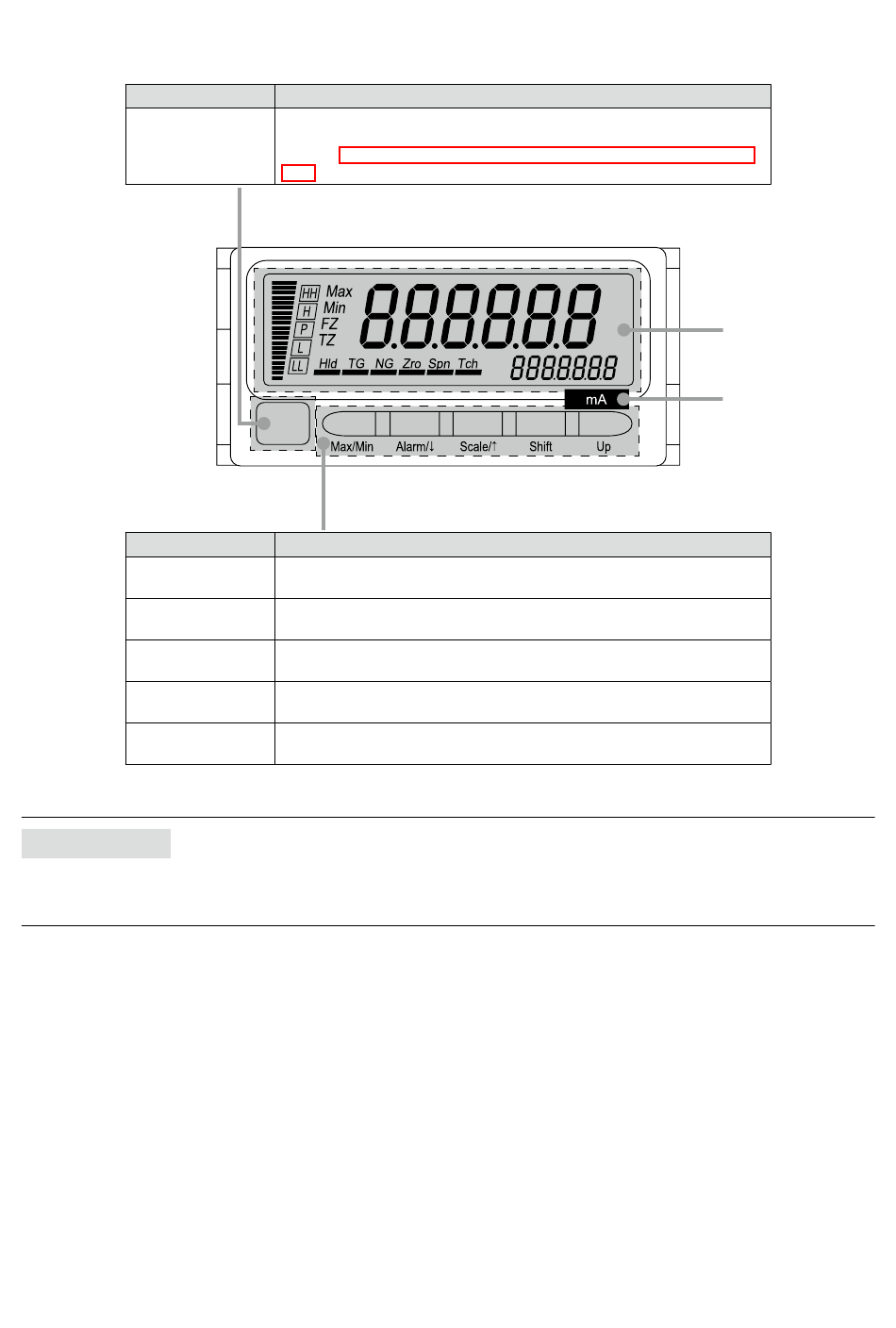

■ FRONT VIEW
COMPONENT
Infrared interface
BUTTON
Max/Min
↓
Alarm/
↑
Scale/
Shift
Up
NOTE
• The engineering unit sticker label position is our recommended position.
• When an engineering unit is specified by the Ordering Information Sheet, the unit(s) will be shipped with the sticker
label put on the above position.
FUNCTION
Used to configure parameters with a PC using PC Configurator Software
(model: 47DCFG) and Infrared Communication Adaptor (model: COP-IRU).
(Refer to 31. CONFIGURING PARAMETERS VIA INFRARED COMMUNICA-
TION.)
FUNCTION
Used to switch the main display to show the present value, MAX value or MIN
value, and to reset the MAX and MIN values. Also used to cancel a set item.
Used to confirm and configure the alarm setpoints, to move on to Alarm and
other Setting Modes; or to shift through setting items in each setting mode.
Used to move on to the scaling and other setting modes, or to shift through
setting items in each setting mode.
Used to move on to the setting standby status of each setting mode and to
shift through display digits in each setting item.
Used to change setting values; or to execute/cancel Forced Zero and Tare
Adjustment in Measuring Mode.
47DAC OPERATING MANUAL EM-9518-B Rev.4
Display
Engineering unit
sticker label position
