22.1 BCD LOGIC

22.1.1 OPERATING PROCEDURE

1,2,
4,5
1

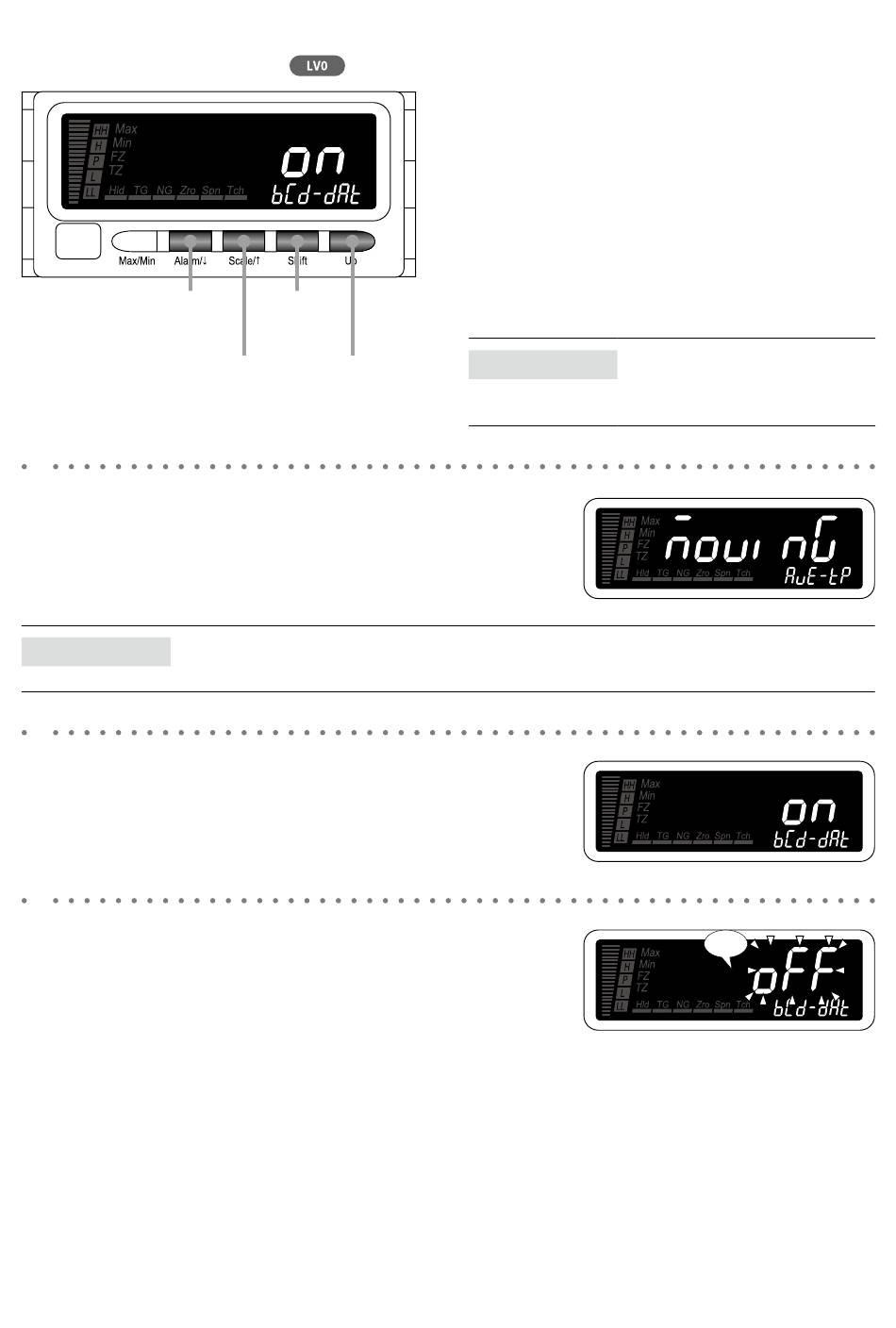

Hold down Alarm/↓ and Scale/↑ buttons at once for 3 seconds
or more to move on to Advanced Setting Mode.
• The averaging type is indicated.
• The SD indicates ' A VE-TP' .
NOTE
The event trigger mode is indicated ('EVENT' on the SD) with the I/O option code ' A ' .
2
Press Alarm/↓ or Scale/↑ button to go to the DATA output logic
setting.
• The DATA output logic is indicated.
• The SD indicates 'BCD-DAT' .
3
Press Shift and Up buttons to select the DATA output logic.
• Select 'ON' or 'OFF' .
3
1,2, 3
4,5
NOTE
Procedures to set the DATA output logic are described
here. To set other I/O logics, the procedures are same.
47DAC OPERATING MANUAL EM-9518-B Rev.4
Blinking
181
