13.2 LOW-END CUTOUT VALUE

13.2.1 OPERATING PROCEDURE

1,2,
4,5
1

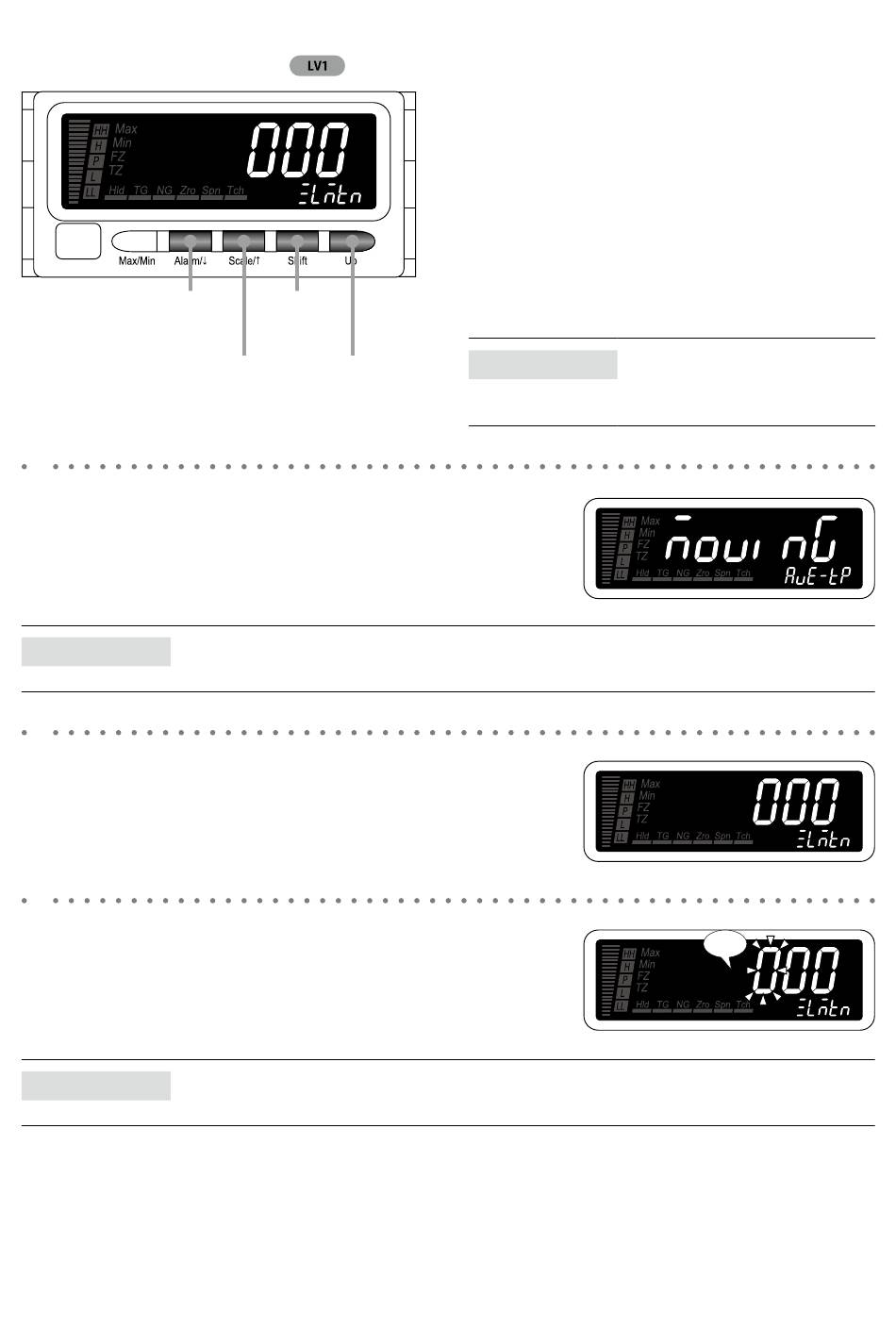

Hold down Alarm/↓ and Scale/↑ buttons at once for 3 seconds
or more to move on to Advanced Setting Mode.
• The averaging type is indicated.
• The SD indicates ' A VE-TP' .
NOTE
With the I/O option code '6' or ' A ' , the event trigger mode is indicated ('EVENT' on the SD).
2
Press Alarm/↓ or Scale/↑ button to go to the low-end cutout
value setting.
• The low-end cutout value is indicated.
• The SD indicates 'ZLMTN' .
3
Press Shift button to shift the display into the setting standby
mode. Then press Shift and Up buttons to set the low-end
cutout value.
• The third digit starts blinking, to which you can apply changes.
• Set within the range of 000 to 999.
NOTE
Set the value for the display scaling. The decimal point is not indicated.
3
1,2,
3
4,5
NOTE
The following figures are display examples. The displays
depend on the specifications and settings.
47DAC OPERATING MANUAL EM-9518-B Rev.4
