21.3 OFF TIMING DELAY

21.3.1 OPERATING PROCEDURE

1,2,
4
1

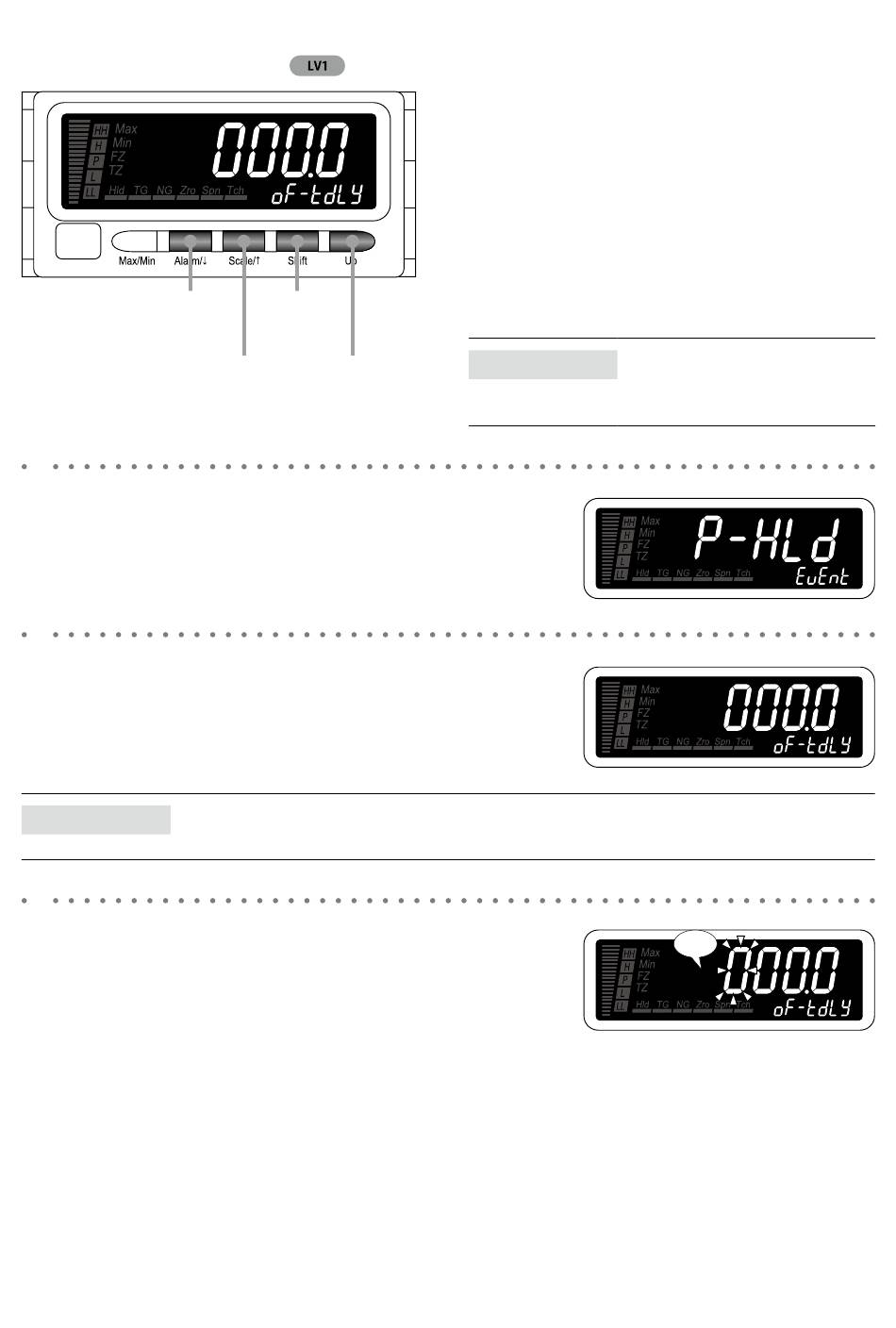

Hold down Alarm/↓ and Scale/↑ buttons at once for 3 seconds
or more to move on to Advanced Setting Mode.
• The event trigger mode is indicated.
• The SD indicates 'EVENT' .
2
Press Alarm/↓ or Scale/↑ button to go to the OFF timing delay
setting.
• The OFF timing delay is indicated.
• The SD indicates 'OF-TDLY' .
NOTE
The OFF timing delay is disabled with "normal" or "sampling hold" selected for the event trigger mode parameter.
3
Press Shift button to shift the display into the setting standby
mode. Then press Shift and Up buttons to set the OFF timing
delay.
• The forth digit starts blinking, to which you can apply changes.
• Set within the range of 000.0 to 999.9.
3
1,2, 3
4
NOTE
The following figures are display examples. The displays
depend on the settings.
47DAC OPERATING MANUAL EM-9518-B Rev.4
Blinking
175
