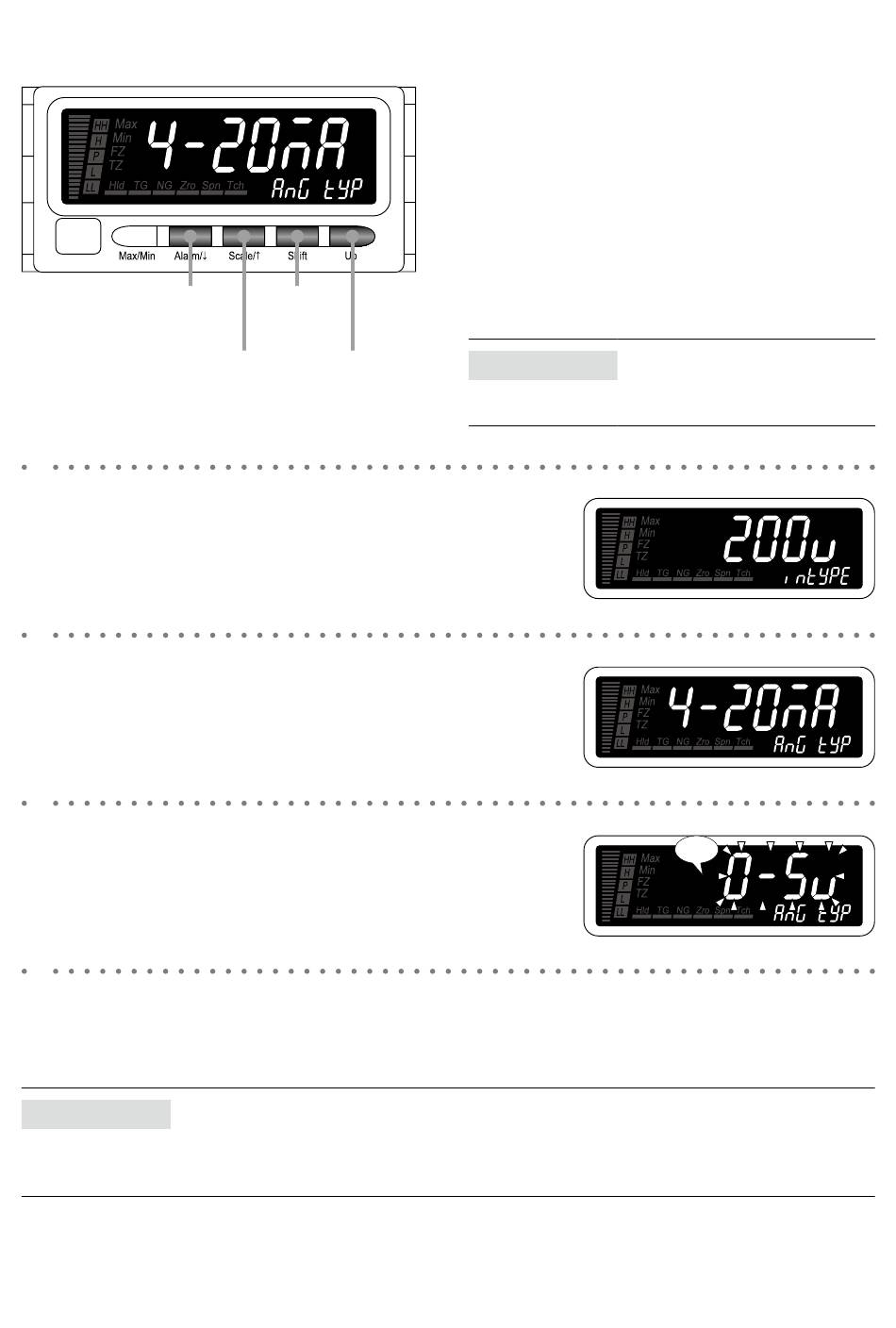

8.1 ANALOG OUTPUT TYPE

8.1.1 OPERATING PROCEDURE

2,4
1
Hold down Scale/↑ button for 3 seconds or more to move on to
Scaling Setting Mode.
• The input type is indicated.
• The SD indicates 'INTYPE' .
2
Press Alarm/↓ or Scale/↑ button to go to the analog output
type setting.
• The analog output type is indicated.
• The SD indicates ' A NG TYP' .
3
Press Shift and Up buttons to select the analog output type.
• Select one among '4-20MA' , '0-5V' , '5V' , '10V' and '0-20MA' .
4
Press Alarm/↓ or Scale/↑ button to apply the new setting.
• And the next parameter setting is indicated.
NOTE
• Press Alarm/↓ button, and the analog output function mode will be indicated (' A NG VAL' on the SD).
• Press Scale/↑ button, and the bargraph upper limit will be indicated ('BAR-H' on the SD), or the bargraph type will be
indicated ('BAR-GRH' on the SD) with the bargraph type set to "no bargraph" .
3
1,2,
3
4
NOTE
The following figures are display examples. The displays
depend on the specifications and settings.
47DAC OPERATING MANUAL EM-9518-B Rev.4
Blinking
86
