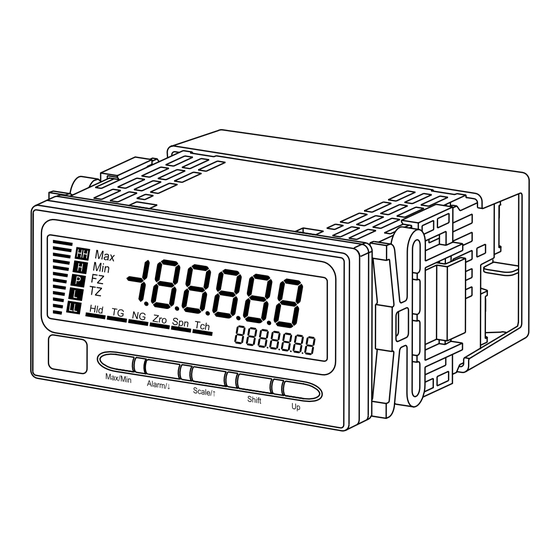

Page 1 Digital Panel Meters 47 Series AC INPUT DIGITAL PANEL METER (5 1/2 digit, LCD display type, true RMS sensing) Model: 47DAC OPERATING MANUAL 5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN Tel: +81-6-6659-8201 Fax: +81-6-6659-8510 http://www.m-system.co.jp/ E-mail: info@m-system.co.jp 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 2: Table Of Contents
2.1.3 BASIC SETTING PROCEDURE ................40 2.2 BASIC SETTING OPERATION AND INSTRUCTIONS ............41 2.2.1 BASIC SETTING OPERATION................41 2.2.2 INSTRUCTIONS ON BASIC OPERATION .............43 3. SETTING INPUT TYPE ................45 3.1 INPUT TYPE LIST ......................46 3.2 OPERATING PROCEDURE ....................47 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 3 9.1.1 OPERATING PROCEDURE ...................97 9.2 ALARM SETPOINT ......................98 9.2.1 ALARM SETPOINT LIST ..................98 9.2.2 OPERATING PROCEDURE ...................99 9.3 TRIP ACTION (LO/HI) ....................... 101 9.3.1 OPERATING PROCEDURE ................. 101 9.4 DEADBAND ........................103 9.4.1 OPERATING PROCEDURE ................. 103 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 4 12.2 AVERAGING TIME ......................138 12.2.1 OPERATING PROCEDURE ................138 13. ELIMINATING FLUCTUATION AROUND “0” ........140 13.1 LOW-END CUTOUT ....................... 141 13.1.1 OPERATING PROCEDURE ................141 13.2 LOW-END CUTOUT VALUE ................... 143 13.2.1 OPERATING PROCEDURE ................143 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 5 23. SETTING MODBUS COMMUNICATION ..........183 23.1 DEVICE ADDRESS ......................184 23.1.1 OPERATING PROCEDURE ................184 23.2 BAUD RATE ........................186 23.2.1 OPERATING PROCEDURE ................186 23.3 PARITY BIT ........................188 23.3.1 OPERATING PROCEDURE ................188 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 6 32.2.1 OPERATING PROCEDURE ................217 33. USER CALIBRATION ................219 33.1 TEACH CALIBRATION ....................219 33.1.1 TEACH CALIBRATION FLOW ................219 33.1.2 OPERATING PROCEDURE ................220 33.2 ANALOG OUTPUT ADJUSTMENT ................222 33.2.1 ANALOG OUTPUT ADJUSTMENT FLOW ............222 33.2.2 OPERATING PROCEDURE ................223 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 7 36.4.3 ALARM SETTING MODE ...................245 36.4.4 ADVANCED SETTING MODE ................247 36.4.5 MODBUS SETTING MODE ................249 36.4.6 INFRARED COMMUNICATION MODE ..............249 36.4.7 LOCKOUT SETTING MODE ................250 36.4.8 LOOP TEST OUTPUT MODE ................250 36.5 CHARACTER SET ......................251 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 8: Introduction
1. INTRODUCTION 1.1 BEFORE USE..Thank you for choosing M-System. Before use, please check contents of the package you received as outlined below. ■ PACKAGE INCLUDES Digital panel meter Accessories Mounting bracket (2) Terminal cover (1) Watertight packing (1) (tethered to the meter with a strap)
Page 9: Safety Precautions (That Must Be Observed)
• Using the unit continuously may result in a fire or electric shock. Stop using the unit if it is dropped or damaged. • Using the unit continuously may result in a fire or electric shock. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 10 Do not use the unit in an atmosphere where combustible gas is present. • Doing so may result in inflammation, ignition, or smoke. Do not cover the ventilation slits with cables, etc. • Doing so may result in malfunction or heating. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 11: Points Of Caution
• Prepare Infrared Communication Adaptor (model: COP-IRU) separately for the infrared communication. • Transmission distance between the 47DAC and the COP-IRU is maximum 1 meter. • Communication can be affected by sunlight, fluorescent lightings employing inverter technology and so forth. Try at a shorter distance if communication is not established.
Page 12 To ensure dustproof and waterproof for front panel follow conditions below. • Observe the designated panel cutout size (W92 × H45 mm) specified by M-System. • The watertight packing included in the product package must be placed between the body and panel when installing on the panel.
Page 13: Related Manuals And Products
■ TO USE CONNECTOR FOR BCD OUTPUT AND CONNECTOR TERMINAL BLOCK • Connector Special Cable (model: HDR40) (optional) • Terminal block Connector Terminal Block (model: CNT) (optional) The specification sheet of each product is downloadable at M-System’s web site: http://www.m-system.co.jp/. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 14: Component Identification
• The engineering unit sticker label position is our recommended position. • When an engineering unit is specified by the Ordering Information Sheet, the unit(s) will be shipped with the sticker label put on the above position. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 15 TIMING signal ON with the event alarm is tripped. trigger input. ‘LL’ indicator turns on when the (Refer to 21. SETTING EVENT LL alarm is tripped. TRIGGER INPUT.) ‘P’ indicator turns on when none of the other alarms is tripped. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 16 • The tag No. label sticker position is our recommended position. • When a tag No. is specified, the unit(s) will be shipped with the tag No. sticker label put on the above position. Max. 17 alphanumeric characters can be specified. Please consult M-System’s Hotline. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 17 Alarm Output, RS-485 / Modbus Terminal block (separable) Terminal block (separable) Strap Strap Terminal block (separable) BCD Output, Event Trigger Input, Alarm Output (Photo MOSFET Relay) Terminal block (separable) Strap Euro type connector terminal 50-pin connector 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 18: Installation
• No Options TERMINAL TERMINAL 6.6 (.26) 2–M3 SCREW 4–M3 SCREW 91.5 (3.60) BCD Output, Event Trigger Input, Alarm Output (Photo MOSFET Relay) • 10–M3 SCREW TERMINAL 2–M3 SCREW 12 13 EURO TYPE 50-pin CONNECTOR CONNECTOR TERMINAL 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 19: Panel Cutout Dimensions
1.6.2 PANEL CUTOUT DIMENSIONS + 0.8 unit: mm – 0 min. 120 Panel thickness: 1.6 to 8.0 mm 1.6.3 VIEWING ANGLE The display is designed to provide the optimal legibility when viewed from the angles as shown below. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 20: Installation
(2) Remove the mounting brackets. (a) Flip a tab of a bracket. (b) Then pull the bracket toward the terminal block to remove it. Bracket (3) Put the terminal cover through the panel cutout. Panel Terminal cover 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 21 (6) Push the mounting brackets into the grooves on both sides of the rear module, until they hit the panel’s rear side. Panel Bracket Fixing groove IMPORTANT To conform to degree of protection IP66, confirm visually that the packing is not contorted, cut off or excessively run off the edge after installation. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 22: Wiring Instructions
• Be sure to confirm the name and polarity of each terminal before wiring to it. • Do not connect anything to unused terminals. • M-System offers a series of lightning surge protectors for protection against induced lightning surges. Please contact M- System to choose appropriate models.
Page 23 AI 1,0-8 RD 0.75 to 1.0 mm AI-TWIN 2X 1,0-8 RD 1.0 to 1.5 mm AI 1,5-8 BK 1.0 to 1.5 mm AI-TWIN 2X 1,5-8 BK Torque: 0.51 N∙m Recommended manufacturer: Phoenix Contact GmbH & Co., KG 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 24: Terminal Assignment
Power Input signal DC output Power RS-485/Modbus Alarm output ■ BCD OUTPUT, EVENT TRIGGER INPUT, ALARM OUTPUT (PHOTO MOSFET RELAY) Input signal DC output Power Event trigger input, BCD output alarm output (photo MOSFET relay) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 25: Wiring Input Signal
MEASURING RANGE: 0 – 200 mA, 0 – 20 mA MEASURING RANGE: 0 – 2 mA, 0 – 0.2 mA 200 / 20 + 2 / 0.2 + COM– 200 / 20 + 2 / 0.2 + COM– AC current AC current 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 26: Wiring Dc Output
• Take measures to reduce noise as much as possible, e.g. by using shielded twisted pair wires for the output signal. Ground the output shield to the most stable earth to prevent noise troubles. DC output – Ground (resistance 100 ohms or less) DC output 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 27: Wiring Alarm Output (Relay)
Power Power Varistor Diode Varistor circuit circuit * It is effective to connect a varistor across a load with the supply voltage 24 to 28 V, and across a contact with 100 to 200 V. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 28: Wiring Alarm Output (Photo Mosfet Relay)
Power Power Varistor Diode Varistor circuit circuit * It is effective to connect a varistor across a load with the supply voltage 24 to 28 V, and across a contact with 100 to 120 V. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 29: Wiring Network Interface
RS-485 RS-485 47Dx 47Dx RS-232-C *1 Internal terminating resistor is used when the device is at the end of a transmission line. *2 Install shield cables to all sections and ground them at single point. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 30 TX–/RX– Terminator RX– * Connect terminating resistors at both ends of the transmission line. When the 47DAC is located at the end, close across the termi- nals T2 and T3 with a leadwire. ■ SYSTEM CONFIGURATION EXAMPLES • RS-485 / RS-232-C •...
Page 31: Wiring Bcd Output
• Be sure to confirm the polarity in wiring. • Make sure that the saturation voltage (residual voltage) of an input device meets the detecting levels of the unit. Other- wise the unit may not operate correctly. • Connect load within the specifications. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 32 BCD output data 8×10 Do61 BCD output data 1×10 Do44 BCD output data 4×10 Do11 BCD output data 1×10 Do42 BCD output data 2×10 GND (0 V) Do41 BCD output data 1×10 GND (0 V) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 33 (Fujitsu Component Ltd.) Cover type: HDR-E50LPAS Do41 Cover type: FCN-360C040-B (Honda Tsushin Kogyo Co., Ltd.) Do42 (Fujitsu Component Ltd.) 4th LSD Do44 Do48 Do68 MAX_REQ HDR40-05 HDR40-20 50 cm 2 meters (19.7 in) (6.6 ft) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 34: Wiring Event Trigger Input
+6 V TIMING Timing HOLD : 13 RESET : 14 S-TMR Startup timer ZERO : 15 2 kΩ HOLD Hold data 1.5 kΩ RESET Reset data open contact ZERO Forced zero collector GND (0 V) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 35: Wiring Power
• Use wires as thick as possible and twist them from the end. • For DC power, confirm the polarity. Power U(+) V(–) AC power DC power ‒ 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 36: Installing/Separating Terminal Block
(terminal No. 11 and 16 sides) to remove. IMPORTANT Be sure to turn off the power supply, input signal and power supply to the output relays before installing/separating the terminal block. Euro type connector terminal 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 37 IMPORTANT Be sure to turn off the power supply, input signal and power supply to the output relays before installing/separating the connector. Terminal cover Insert the connector through the opening. Unlocking buttons 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 38: Attaching/Removing Terminal Cover
(a) Insert the minus tip of a screwdriver into a hole at the lower left corner of the cover. (b) Pull the handle upward. (c) Then insert the screwdriver into a hole at the lower right corner. (d) Pull the handle upward to separate the terminal cover. Terminal cover 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 39: Basic Setting And Operation
20.000 mA Input value Input type: Type of input signal to 47DAC (measuring range) Input scaling: 0% input value (input scaling value Zero) and 100% input value (input scaling value Span) Display scaling: 0% display value (display scaling value Zero) and 100% display value (display scaling value Span)
Page 40: Basic Setting Procedure
• Press Shift button to shift the display into the setting standby mode and Up button to select the decimal point posi- tion. Return to Measuring Mode (measurement started). • Hold down Alarm/↓ or Scale/↑ button for 1 second or more to apply the new setting and return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 41: Basic Setting Operation And Instructions
• Each time pressing Up button, the numeral is incremented by 1. In setting an alarm setpoint, the indication following ‘9’ will be ‘-’ . • The negative sign (-) must be set to the 6th digit. For example, set ‘-004.00’ instead of ‘-4.00’ . * 6th digit ・・・・・ 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 42 Press Up button to select a desired decimal point position. Press Alarm/↓ or Scale/↑ button to apply the new setting. • The next or previous parameter setting is indicated. *1 Display depands on the speci cations and settings. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 43: Instructions On Basic Operation
Hold down the button while in the Teach Calibration, and the display will return to Measuring Mode. • If you get lost in a setting mode, you can execute initialization. (Refer to 35.2 INITIALIZING SETTING VALUES.) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 44 • Some parameters may not be displayed depending on the lockout settings, I/O option and DC output. • Refer to 6. PARAMETER CONFIGURATION for details. ■ TO TURN OFF POWER • Delay power off for 10 seconds or more after changing of settings including the one set with the ZERO signal. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 45: Setting Input Type
(trip action, deadband, OFF delay time and coil at alarm) except for the ones concerning the P status are reset to the default values. It is recommended to record the current settings as necessary. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 46: Input Type List
3.1 INPUT TYPE LIST Input type can be changed within the same input code. ■ INPUT CODE: 1 [MODEL: 47DAC-1XX-XX] MAIN DISPLAY FUNCTION SETTING RANGE OPERATIONAL RANGE DEFAULT VALUE 0.2V Measuring range 0 – 0.2 V 0.0000 – 0.2000 V 0 –...
Page 47: Operating Procedure
Some alarm indicators turn on with the parameter display. The alarm indication is due to the last status before mode transition held but does not show the unit failure. Press Shift button to shift the display into the setting standby mode. Blinking • The indication ‘200MA’ starts blinking, to which you can apply changes. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 48 • Hold down Max/Min button for 1 second or more in the setting standby mode (indication blinking in Step 3 and 4) to return to Measuring Mode without applying the last changes. • If you get lost in a setting mode, you can execute initialization. (Refer to 35.2 INITIALIZING SETTING VALUES.) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 49: Setting Scaling Values
• Decimal point position can be set in common for both display scaling value Zero and Span. e.g. Display value 0.00 – 600.00 A AC Display scaling value Zero 0.00 A Display scaling value Span 600.00 A Decimal point position 000.00 (2 decimal places) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 50 • Operating procedure to set scaling values Following pages describe operating procedures in each step to set the input scaling to 0 – 20 mA AC, and the display scal- ing to 0.00 – 600.00 A AC as an example. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 51: Step 1. Input Scaling Value Zero
Input scaling default values and setting ranges per input code are as shown in the following tables. The input scaling val- ues are reset to the default or the previously set values per input type when the input type has been changed. ■ INPUT CODE: 1 [MODEL: 47DAC-1XX-XX] INPUT TYPE...
Page 52: Operating Procedure
Zero setting. • The input scaling value Zero is indicated. • The SD indicates ‘IN-A’ . • ‘Zro’ and ‘Tch’ indicators turn on. NOTE Skip to Step 7 if the default value is acceptable. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 53 ■ TO GO ON TO SET THE DISPLAY SCALING VALUE ZERO, Skip to Step 3 in “4.2 STEP 2. DISPLAY SCALING VALUE ZERO” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 54 ■ SHIFTING DIGITS • Each time pressing Shift button, the blinking digit moves to the right. ■ SETTING A NUMERICAL VALUE * 6th digit ・・・・・ • Each time pressing Up button, the numeral is incremented by 1. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 55: Step 2. Display Scaling Value Zero
Display scaling default values and setting ranges per input code are as shown in the following tables. The display scaling values are reset to the default or the previously set values per input type when the input type has been changed. ■ INPUT CODE: 1 [MODEL: 47DAC-1XX-XX] INPUT TYPE DEFAULT VALUE...
Page 56: Operating Procedure
Press Alarm/↓ or Scale/↑ button to go to the display scaling value Zero setting. • The display scaling value Zero is indicated. • The SD indicates ‘DISP-A’ . • ‘Zro’ indicator turns on. NOTE Skip to Step 7 if the default value is acceptable. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 57 ■ TO GO ON TO SET THE INPUT SCALING VALUE SPAN, Skip to Step 3 in “4.3 STEP 3. INPUT SCALING VALUE SPAN” . ■ TO QUIT, Hold down Alarm/↓or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 58 ■ SHIFTING DIGITS • Each time pressing Shift button, the blinking digit moves to the right. ■ SETTING A NUMERICAL VALUE * 6th digit ・・・・・ • Each time pressing Up button, the numeral is incremented by 1. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 59: Step 3. Input Scaling Value Span
• The SD indicates ‘INTYPE’ . NOTE Some alarm indicators turn on with the parameter display. The alarm indication is due to the last status before mode transition held but does not show the unit failure. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 60 ■ TO GO ON TO SET THE DISPLAY SCALING VALUE SPAN, Skip to Step 3 in “4.4 STEP 4. DISPLAY SCALING VALUE SPAN” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 61 ■ SHIFTING DIGITS • Each time pressing Shift button, the blinking digit moves to the right. ■ SETTING A NUMERICAL VALUE * 6th digit ・・・・・ • Each time pressing Up button, the numeral is incremented by 1. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 62: Step 4. Display Scaling Value Span
• The SD indicates ‘INTYPE’ . NOTE Some alarm indicators turn on with the parameter display. The alarm indication is due to the last status before mode transition held but does not show the unit failure. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 63 ■ TO GO ON TO SET THE DECIMAL POINT POSITION, Skip to Step 3 in “4.5 STEP 5. DECIMAL POINT POSITION” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 64 ■ SHIFTING DIGITS • Each time pressing Shift button, the blinking digit moves to the right. ■ SETTING A NUMERICAL VALUE * 6th digit ・・・・・ • Each time pressing Up button, the numeral is incremented by 1. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 65: Step 5. Decimal Point Position
Default values of decimal point position per input type are as shown in the following tables. The decimal point position is reset to the default or the previously set position per input type when the input type has been changed. ■ INPUT CODE: 1 [MODEL: 47DAC-1XX-XX] INPUT TYPE DEFAULT VALUE (MAIN DISPLAY) 0 –...
Page 66: Operating Procedure
• The SD indicates ‘INTYPE’ . NOTE Some alarm indicators turn on with the parameter display. The alarm indication is due to the last status before mode transition held but does not show the unit failure. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 67 ■ TO GO ON TO SET THE BARGRAPH TYPE, Skip to Step 2 in “7.1 BARGRAPH TYPE” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 68 • “No decimal point” to “4 decimal places” can be selected in the decimal point position setting. SETTING VALUE FUNCTION SETTING VALUE FUNCTION No decimal point 3 decimal places (10 1 decimal place (10 4 decimal places (10 2 decimal places (10 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 69: Operation
• The main display color depends on the settings of the display color and setpoints. Apply 10 mA input (50%) and make sure that 300.00 A is indi- cated. Apply 20 mA input (100%) and make sure that 600.00 A is indicated. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 70: Parameter Configuration
6. PARAMETER CONFIGURATION ■ MODE Parameters can be grouped in several modes. The 47DAC has modes as shown in the following table. MODE FUNCTION MEASUREMENT Measuring Normal measurement state where the unit takes in input and provides alarms. Measuring Present value, MAX and MIN values can be indicated, and alarm setpoints can be indicated and set in Measuring Mode.
Page 71 + Scale/ + Shift buttons at once for 5 seconds or more. ■ TRANSITION FROM EACH MODE TO MEASURING MODE Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 72 • The display depends on the specifications and settings. The above displays show default values with the input code ‘1’ and type ‘200V’ . • Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode from each parameter. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 73 HH one-shot output L alarm setpoint HH OFF delay time L trip action HH ON delay time L deadband (hysteresis) HH deadband (hysteresis) L ON delay time Continued on the following page Continued on the following page 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 74 • The display depends on the specifications and settings. The above displays show default values with the input code ‘1’ and type ‘200V’ . • Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode from each parameter. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 75 Display color High-pass lter Automatic return time to Measuring Mode Display reading type Transition time to Lockout Setting Mode Round off low-digit reading Display refreshing rate Continued on the following page Continued on the following page 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 76 • The display depends on the specifications and settings. The above displays show default values. • Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode from each parameter. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 77 • Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode from each parameter. (7) Parameter shifting in Loop Test Output Mode There is no parameter shifting in this mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 78: Setting Bargraph
• The number of the LED segments is 20 divided by 10. The bar increases or decreases by 2 segments. • In setting ‘bargraph upper limit < bargraph lower limit’ , the bargraph image is upside down of the above ones. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 79 ■ SETTING RANGE OF BARGRAPH LOWER AND UPPER LIMITS The bargraph lower and upper limits can be set within the range of -20000 to 100000. The default values per input type are as shown in the following tables. • INPUT CODE: 1 [MODEL: 47DAC-1XX-XX] INPUT TYPE DEFAULT VALUE (MAIN DISPLAY) 0 –...
Page 80: Bargraph Type
SD) or the analog output type (‘ A NG TYP’ on the SD) will be indicated with the bargraph type set to “no bargraph” . • Press Scale/↑ button, and the decimal point position will be indicated (‘D-POINT’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 81 ■ TO GO ON TO SET THE BARGRAPH LOWER LIMIT/UPPER LIMIT, Skip to Step 2 in “7.2 BARGRAPH LOWER LIMIT/UPPER LIMIT” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 82: Bargraph Lower Limit/Upper Limit
Press Alarm/↓ button to apply the new value and go to the bargraph upper limit setting. • The bargraph lower limit is registered. • The bargraph upper limit is indicated. • The SD indicates ‘BAR-H’ . • ‘Zro’ indicator turns off and ‘Spn’ turns on. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 83 (‘ A NG TYP’ on the SD). • Press Scale/↑ button, and the bargraph lower limit will be indicated (‘BAR-L’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 84: Setting Analog Output
Display refreshing rate Display refreshing rate slower than read rate slower than read rate Display value Display value The DC output is proportional to the measured value. The DC output is proportional to the display value. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 85 ■ SETTING RANGE OF ANALOG OUTPUTS 0% AND 100% The analog outputs 0% and 100% can be set within the range of -20000 to 100000. The default values per input type are as shown in the following tables. • INPUT CODE: 1 [MODEL: 47DAC-1XX-XX] INPUT TYPE DEFAULT VALUE (MAIN DISPLAY) 0 –...
Page 86: Analog Output Type
• Press Scale/↑ button, and the bargraph upper limit will be indicated (‘BAR-H’ on the SD), or the bargraph type will be indicated (‘BAR-GRH’ on the SD) with the bargraph type set to “no bargraph” . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 87 ■ TO GO ON TO SET THE ANALOG OUTPUT FUNCTION MODE, Skip to Step 2 in “8.2 ANALOG OUTPUT FUNCTION MODE” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 88: Analog Output Function Mode
• Press Alarm/↓ button, and the analog output 0% will be indicated (‘ A NG L’ on the SD). • Press Scale/↑ button, and the analog output type will be indicated (‘ A NG TYP’ on the SD).. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 89 ■ TO GO ON TO SET THE ANALOG OUTPUTS 0% AND 100%, Skip to Step 2 in “8.3 ANALOG OUTPUT 0% / ANALOG OUTPUT 100%” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 90: Analog Output 0% / Analog Output 100
100% setting. • The analog output 0% is registered. • The analog output 100% is indicated. • The SD indicates ‘ A NG H’ . • ‘Zro’ indicator turns off and ‘Spn’ turns on. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 91 • Press Scale/↑ button, and the analog output 0% will be indicated (‘ A NG L’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 92: Basic Alarm Setting
Blinking in 1.0 second intervals Blinking in 0.5 second intervals Blinking in 0.3 second intervals *1 Selectable only at alarm setting lockout level ‘LV0’ (“completely unlock Alarm Setting Mode”). *2 Configurable for the P status. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 93 In the zone setting, alarm trips and resets between each setpoint and the trip action (direction) setting. The P setpoint. Alarm trip action setting is disregarded with status means the zone where the LL, L, H and HH alarm zone alarm. outputs are OFF. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 94 (2) The display value exceeds the setpoint and stays (2) The display value falls below the setpoint and stays over the ON delay time period. Therefore alarm over the OFF delay time period. Therefore alarm output is provided. output is canceled. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 95 • The trip action, deadband, OFF delay time and coil at alarm except for those concerning the P status are reset to the default values and all alarm setpoints are disabled (reset to ‘------’ status) when the input type has been changed. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 96: Alarm Output Pattern
LL alarm output (lo) LL alarm output (lo) ‘HH’ indicator ‘HH’ indicator ‘H’ indicator ‘H’ indicator ‘P’ indicator ‘P’ indicator ‘L’ indicator ‘L’ indicator ‘LL’ indicator ‘LL’ indicator No output for the zones adjoining the invalid setpoint 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 97: Operating Procedure
(‘ A LM BNK’ on the SD) with the bank switching set to “enabled via the front button control” . ■ TO SET THE NEXT PARAMETER, Skip to Step 2 in “9.2 ALARM SETPOINT” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 98: Alarm Setpoint
No. are disabled (reset to ‘------’ status) when the input type has been changed. 9.2.1 ALARM SETPOINT LIST Default values of alarm setpoints are as shown in the following tables. ■ INPUT CODE: 1 [MODEL: 47DAC-1XX-XX] PARAMETER DEFAULT VALUE...
Page 99: Operating Procedure
• The sixth digit starts blinking, to which you can apply changes. • Set within the range of -20000 to 100000. IMPORTANT Specify ‘------’ to disable the alarm output. NOTE Set the alarm setpoint with the decimal point position set in the decimal point position setting. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 100 ■ TO SET THE NEXT PARAMETER, Skip to Step 2 in “9.3 TRIP ACTION (LO/HI)” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 101: Trip Action (Lo/Hi)
• The SD indicates ‘LIMT LL’ (‘LIMT L’ , ‘LIMT H’ or ‘LIMT HH’). • ‘LL’ (‘L’ , ‘H’ or ‘HH’) indicator starts blinking. Press Shift and Up buttons to select the LL (L, H or HH) trip action. Blinking • Select ‘LOW’ or ‘HIGH’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 102 Repeat operation from Step 2. ■ TO SET THE NEXT PARAMETER, Skip to Step 2 in “9.4 DEADBAND” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 103: Deadband
HH) deadband. • The forth digit starts blinking, to which you can apply changes. • Set within the range of 0000 to 9999. NOTE Set the deadband for the setpoint. The decimal point is not indicated. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 104 ■ TO SET THE NEXT PARAMETER, Skip to Step 2 in “9.5 ON DELAY TIME” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 105: On Delay Time
• The third digit starts blinking, to which you can apply changes. • Set within the range of 000 to 999. NOTE The decimal point is not indicated. Set as ‘setting value × 100 milliseconds’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 106 ■ TO SET THE NEXT PARAMETER, Skip to Step 2 in “9.6 OFF DELAY TIME” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 107: Off Delay Time
• The LL (L, H, HH or P) OFF delay time is indicated. • The SD indicates ‘OFDLYLL’ (‘OFDLY L’ , ‘OFDLY H’ , ‘OFDLYHH’ or ‘OFDLY P’). • ‘LL’ (‘L’ , ‘H’ , ‘HH’ or ‘P’) indicator starts blinking. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 108 Repeat operation from Step 2. ■ TO SET THE NEXT PARAMETER, Skip to Step 2 in “9.7 ONE-SHOT OUTPUT” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 109: One-Shot Output
• The LL (L, H, HH or P) one-shot output is indicated. • The SD indicates ‘SHOT LL’ (‘SHOT L’ , ‘SHOT H’ , ‘SHOT HH’ or ‘SHOT P’). • ‘LL’ (‘L’ , ‘H’ , ‘HH’ or ‘P’) indicator starts blinking. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 110 Skip to Step 2 in “9.8 ALARM OUTPUT LOGIC (coil energized or de-energized at alarm)” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 111: Alarm Output Logic (Coil Energized Or De-Energized At Alarm)
• ‘LL’ (‘L’ , ‘H’ , ‘HH’ or ‘P’) indicator starts blinking. Press Shift and Up buttons to select the LL (L, H, HH or P) coil at alarm. Blinking • Select ‘EN’ or ‘DE’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 112 ■ TO SET THE NEXT PARAMETER, Skip to Step 2 in “9.9 MAIN DISPLAY BLINKING AT ALARM” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 113: Main Display Blinking At Alarm
With the bank switching set to “enabled via the front button control” , the bank No. is indicated (‘ A LM BNK’ on the SD). Press Alarm/↓ or Scale/↑ button to go to the main display blinking at alarm setting. • The main display blinking at alarm is indicated. • The SD indicates ‘ A LMBLNK’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 114 (‘RELAY P’ on the SD) with the alarm setting lockout set to “completely unlock Alarm Setting Mode” . Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 115: Bank Setting
10. BANK SETTING The 47DAC has 8 areas (banks) to save a set of preset alarm setpoints. Switching them enables the setpoints to be changed easily. This bank switching can be “enabled via the front button control” or “enabled via Modbus communication”...
Page 116: Bank Switching
Press Alarm/↓ or Scale/↑ button to go to the bank switching setting. • The bank switching is indicated. • The SD indicates ‘BNK-CHG’ . Press Shift and Up buttons to select the bank switching. Blinking • Select one among ‘OFF’ , ‘KEY’ and ‘COM’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 117 (‘BCD-REQ’ on the SD) with the I/O option code ‘5’ , ‘9’ or ‘ A ’ . • Press Scale/↑ button, and the LCD contrast will be indicated (‘CNTRAST’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 118: Bank Copy
• Press Alarm/↓ button, and the bank No. will be indicated (‘ A LM BNK’ on the SD). • Press Scale/↑ button, and the main display blinking at alarm will be indicated (‘ A LMBLNK’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 119 ■ TO GO ON TO SET THE BANK NO., Skip to Step 2 in “10.3 BANK NO.” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 120: Bank No
■ TO GO ON TO SET THE ALARM SETPOINT, Skip to Step 2 in “9.2 ALARM SETPOINT” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 121: Advanced Alarm Setting
Alarm power ON delay 0.0 – 999.9 seconds Standby sequence Output immediately at the startup Output standing by until the input enters P zone Scaling error Alarm trip action valid at over-range No alarm trip action at over-range 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 122 L setpoint. The output is held (4) The L alarm output is not provided when the input even when it exceeds the L setpoint. The display falls below the L setpoint. value corresponds to the measured value. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 123 (2) After the alarm power ON delay time is elapsed, the (2) After the display value enters the P zone, the alarm alarm output is provided when the display value falls output is provided when it falls below the L setpoint. below the L setpoint. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 124: P Output
With the I/O option code ‘6’ or ‘ A ’ , the event trigger mode is indicated (‘EVENT’ on the SD). Press Alarm/↓ or Scale/↑ button to go to the P output setting. • The P output is indicated. • The SD indicates ‘PASS’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 125 • Press Alarm/↓ button, and the latching alarm will be indicated (‘OUT-STP’ on the SD). • Press Scale/↑ button, and the manual sub display reset will be indicated (‘S-DISP’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 126: Latching Alarm
• The latching alarm is indicated. • The SD indicates ‘OUT-STP’ . Press Shift and Up buttons to select the latching alarm. Blinking • Select one among ‘OFF’ , ‘OUT’ and ‘ A LL’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 127 • Press Alarm/↓ button, and the alarm power ON delay will be indicated (‘PWR-DLY’ on the SD). • Press Scale/↑ button, and the P output will be indicated (‘PASS’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 128: Alarm Power On Delay
Then press Shift and Up buttons to set the alarm power Blinking ON delay. • The forth digit starts blinking, to which you can apply changes. • Set within the range of 000.0 to 999.9. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 129 • Press Alarm/↓ button, and the standby sequence will be indicated (‘STDBY’ on the SD). • Press Scale/↑ button, and the latching alarm will be indicated (‘OUT-STP’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 130: Standby Sequence
Press Alarm/↓ or Scale/↑ button to go to the standby sequence setting. • The standby sequence is indicated. • The SD indicates ‘STDBY’ . Press Shift and Up buttons to select the standby sequence. Blinking • Select ‘OFF’ or ‘ON’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 131 • Press Alarm/↓ button, and the scaling error will be indicated (‘SE-ALM’ on the SD). • Press Scale/↑ button, and the alarm power ON delay will be indicated (‘PWR-DLY’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 132: Alarm Trip Action At Over-Range
Press Alarm/↓ or Scale/↑ button to go to the scaling error set- ting. • The scaling error is indicated. • The SD indicates ‘SE-ALM’ . Press Shift and Up buttons to select the scaling error. Blinking • Select ‘ON’ or ‘OFF’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 133 • Press Alarm/↓ button, and the round off low-digit reading will be indicated (‘STEP’ on the SD). • Press Scale/↑ button, and the standby sequence will be indicated (‘STDBY’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 134: Averaging Input
× averaging time’ , depending on the display sample is added to be averaged with the oldest one refreshing rate. omitted. (3) Such operation is repeated. The display is updated every sampling period (50 milliseconds, depending on the display refreshing rate). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 135 64 samples (3.2 second intervals) 128 samples (6.4 second intervals) 256 samples (12.8 second intervals) 512 samples (32.6 second intervals) NOTE The averaging time setting affects the DC output. Refer to 8. SETTING ANALOG OUTPUT for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 136: Averaging Type
• Press Scale/↑ button, and the firmware version indication will be indicated (‘FRM-VER’ on the SD), or the startup timer will be indicated (‘STR-TMR’ on the SD) with the I/O option code ‘6’ or ‘ A ’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 137 ■ TO GO ON TO SET THE AVERAGING TIME, Skip to Step 2 in “12.2 AVERAGING TIME” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 138: Averaging Time
Press Shift and Up buttons to select the averaging time. Blinking • Select one among ‘OFF’ , ‘2’ , ‘4’ , ‘8’ , ‘16’ , ‘32’ , ‘64’ , ‘128’ , ‘256’ and ‘512’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 139 • Press Alarm/↓ button, and the low-end cutout will be indicated (‘ZEROLMT’ on the SD). • Press Scale/↑ button, and the averaging type will be indicated (‘ A VE-TP’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 140: Eliminating Fluctuation Around "0
• When the display scaling is set to negative to positive range, set the low-end cutout to absolute value low-end cutout • The low-end cutout setting affects the DC output when the analog output function mode is set to “proportional to the display value” . Refer to 8. SETTING ANALOG OUTPUT for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 141: Low-End Cutout
• The low-end cutout is indicated. • The SD indicates ‘ZEROLMT’ . Press Shift and Up buttons to select the low-end cutout. Blinking • Select one among ‘OFF’ , ‘ON’ and ‘ A BS’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 142 ■ TO GO ON TO SET THE LOW-END CUTOUT VALUE, Skip to Step 2 in “13.2 LOW-END CUTOUT VALUE” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 143: Low-End Cutout Value
• The third digit starts blinking, to which you can apply changes. • Set within the range of 000 to 999. NOTE Set the value for the display scaling. The decimal point is not indicated. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 144 • Press Alarm/↓ button, and the display color will be indicated (‘COLOR’ on the SD). • Press Scale/↑ button, and the low-end cutout will be indicated (‘ZEROLMT’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 145: Setting Display Color
With the I/O option code ‘6’ or ‘ A ’ , the event trigger mode is indicated (‘EVENT’ on the SD). Press Alarm/↓ or Scale/↑ button to go to the display color set- ting. • The display color is indicated. • The SD indicates ‘COLOR’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 146 • Press Scale/↑ button, and the low-end cutout value will be indicated (‘ZLMTN’ on the SD), or the low-end cutout will be indicated (‘ZEROLMT’ on the SD) with the low-end cutout set to “low-end cutout OFF” . Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 147: Going Back Automatically To Measuring Mode
Alarm Setting Mode Enabled Advanced Setting Mode Enabled Modbus Setting Mode Enabled Infrared Communication Mode Disabled Lockout Setting Mode Enabled Loop Test Output Mode Disabled *1 Refer to 25.2 MANUAL SUB DISPLAY RESET for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 148: Operating Procedure
Then press Shift and Up buttons to set the automatic Blinking return time to Measuring Mode. • The second digit starts blinking, to which you can apply changes. • Set within the range of 00 to 99. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 149 • Press Alarm/↓ button, and the transition time to Lockout Setting Mode will be indicated (‘PROTECT’ on the SD). • Press Scale/↑ button, and the display color will be indicated (‘COLOR’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 150: Adjusting Display Refreshing Rate
16. ADJUSTING DISPLAY REFRESHING RATE The 47DAC measures input signal at the read rate 50 milliseconds. The display refreshing rate can be slower than this rate (figure below) within the range of 0.1 to 99.9 seconds. With this value set to 00.0, the refreshing rate will be the same as the read rate (50 milliseconds) (table below).
Page 151: Operating Procedure
Then press Shift and Up buttons to set the display Blinking refreshing rate. • The third digit starts blinking, to which you can apply changes. • Set within the range of 00.0 to 99.9. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 152 • Press Scale/↑ button, and the transition time to Lockout Setting Mode will be indicated (‘PROTECT’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 153: Rounding Off Lowest Digit Reading
LOW-DIGIT INDICATION OF MEASURED VALUE NOTE The round off low-digit reading setting affects the DC output when the analog output function mode is set to “proportional to the display value” . Refer to 8. SETTING ANALOG OUTPUT for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 154: Operating Procedure
• The round off low-digit reading is indicated. • The SD indicates ‘STEP’ . Press Shift and Up buttons to select the round off low-digit reading. Blinking • Select one among ‘OFF’ , ‘2’ , ‘5’ and ‘10’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 155 • Press Alarm/↓ button, and the display reading type will be indicated (‘M-DISP’ on the SD). • Press Scale/↑ button, and the scaling error will be indicated (‘SE-ALM’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 156: Detecting Steep Input Changes
(5.0 + 4.0) = 4.5 9.5 – 4.5 = 5.0 (4.5 + 9.5) = 7.0 *2 Analog output may not simply increase/decrease depending upon timing of the input supplied in relation to the sampling rate. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 157 0% and 100% as necessary), taking account of this. • The high-pass filter setting affects the DC output when the analog output function mode is set to “proportional to the display value” . Refer to 8. SETTING ANALOG OUTPUT for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 158: Operating Procedure
Press Alarm/↓ or Scale/↑ button to go to the high-pass filter setting. • The high-pass filter is indicated. • The SD indicates ‘HP-F’ . Press Shift and Up buttons to select the high-pass filter. Blinking • Select ‘OFF’ or ‘ON’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 159 • Press Alarm/↓ button, and the backlight brightness will be indicated (‘BRIGHT’ on the SD). • Press Scale/↑ button, and the display reading type will be indicated (‘M-DISP’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 160: Adjusting Brightness Of Display
The brightness can be selected in the following table. ■ BACKLIGHT BRIGHTNESS MAIN DISPLAY FUNCTION DEFAULT VALUE Brightness level 1 (dark) Brightness level 2 Brightness level 3 (bright) ■ ADJUSTMENT IMAGE Increasing brightness Decreasing brightness Increasing brightness Decreasing brightness 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 161: Operating Procedure
• The backlight brightness is indicated. • The SD indicates ‘BRIGHT’ . Press Shift and Up buttons to select the backlight brightness. Blinking • Select one among ‘1’ , ‘2’ and ‘3’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 162 • Press Alarm/↓ button, and the LCD contrast will be indicated (‘CNTRAST’ on the SD). • Press Scale/↑ button, and the high-pass filter will be indicated (‘HP-F’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 163: Adjusting Lcd Contrast
Contrast level 3 Contrast level 4 Contrast level 5 (middle) Contrast level 6 Contrast level 7 Contrast level 8 Contrast level 9 Contrast level 10 (high) ■ ADJUSTMENT IMAGE Higher contrast Lower contrast Higher contrast Lower contrast 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 164: Operating Procedure
Press Shift and Up buttons to select the LCD contrast. Blinking • Select one among ‘1’ , ‘2’ , ‘3’ , ‘4’ , ‘5’ , ‘6’ , ‘7’ , ‘8’ , ‘9’ and ‘10’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 165 • Press Alarm/↓ button, and the bank switching will be indicated (‘BNK-CHG’ on the SD). • Press Scale/↑ button, and the backlight brightness will be indicated (‘BRIGHT’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 166: Setting Event Trigger Input
OFF. TO ZERO.) The forced zero lockout setting is disregarded. NOTE The negative logic (ON at low signal) is as shown in the figure on the right. Negative logic OFF (Hi) OFF (Hi) ON (Lo) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 167 OFF, the stored MIN value is indicated (Table 9). Peak-to-peak hold Measures and stores MAX and MIN values while the TIMING signal is ON. When the signal is OFF, the stored ‘MAX value - MIN value’ is indicated (Table 10). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 168 TIMING within RESET: Invalid *1 Scaling error Not measured if a scaling error occurs *2 Measuring DC output Proportional to the display reading. For no measured while TIMING is ON data, the value is 0%. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 169 • The MAX and MIN values while the TIMING signal is ON are indicated with the front button control in the modes except the normal and sampling hold modes. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 170 Available TIMING Counting Counting S-TMR 2 sec. Halt 3 sec. NOTE The startup timer can be set in the normal mode, however when the S-TMR is ON, the measurement is stopped during the timer period. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 171: Event Trigger Mode
• Press Alarm/↓ button, and the ON timing delay will be indicated (‘ON-TDLY’ on the SD), or the startup timer will be indi- cated (‘STR-TMR’ on the SD) with the event trigger mode set to “normal” . • Press Scale/↑ button, and the firmware version indication will be indicated (‘FRM-VER’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 172 ■ TO GO ON TO SET THE ON TIMING DELAY, Skip to Step 2 in “21.2 ON TIMING DELAY” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 173: On Timing Delay
Then press Shift and Up buttons to set the ON timing Blinking delay. • The forth digit starts blinking, to which you can apply changes. • Set within the range of 000.0 to 999.9. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 174 ■ TO GO ON TO SET THE OFF TIMING DELAY, Skip to Step 2 in “21.3 OFF TIMING DELAY” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 175: Off Timing Delay
Then press Shift and Up buttons to set the OFF timing Blinking delay. • The forth digit starts blinking, to which you can apply changes. • Set within the range of 000.0 to 999.9. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 176 ■ TO GO ON TO SET THE STARTUP TIMER, Skip to Step 2 in “21.4 STARTUP TIMER” . ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 177: Startup Timer
Press Shift button to shift the display into the setting standby mode. Then press Shift and Up buttons to set the startup Blinking timer. • The third digit starts blinking, to which you can apply changes. • Set within the range of 00.0 to 99.9. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 178 (‘EVENT’ on the SD) with the event trigger mode set to “normal” , or the ON timing delay will be indicated (‘ON-TDLY’ on the SD) with the event trigger mode set to “sampling hold” . Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 179: Setting Bcd Output
HH alarm trip output Follows HH alarm output. H alarm trip output Follows H alarm output. P status output Follows P status. L alarm trip output Follows L alarm output. LL alarm trip output Follows LL alarm output. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 180 • The HOLD and RESET signal logics are negative, not configurable. (default) • ON/OFF of the positive and negative logics is as shown in the right table. Positive logic ON (Hi) OFF (Lo) OFF (Lo) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 181: Bcd Logic
Press Alarm/↓ or Scale/↑ button to go to the DATA output logic setting. • The DATA output logic is indicated. • The SD indicates ‘BCD-DAT’ . Press Shift and Up buttons to select the DATA output logic. Blinking • Select ‘ON’ or ‘OFF’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 182 • Press Alarm/↓ button, and the status output logic will be indicated (‘BCD-STA’ on the SD). • Press Scale/↑ button, and the DAV output logic will be indicated (‘BCD-DAV’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 183: Setting Modbus Communication
23. SETTING MODBUS COMMUNICATION Data readout and parameter configuration of the 47DAC with a PLC or a PC are available via Modbus communication. This manual describes setting procedures of the device address, baud rate, parity bit, stop bit, long register and timers.
Page 184: Device Address
• And the next parameter setting is indicated. NOTE • Press Alarm/↓ button, and the baud rate will be indicated (‘B-RATE’ on the SD). • Press Scale/↑ button, and the long register will be indicated (‘L-WORD’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 185 ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. IMPORTANT Modbus setting changes are enabled only after the power supply has been turned off and on. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 186: Baud Rate
• And the next parameter setting is indicated. NOTE • Press Alarm/↓ button, and the parity bit will be indicated (‘PARITY’ on the SD). • Press Scale/↑ button, and the device address will be indicated (‘EQP-NO’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 187 ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. IMPORTANT Modbus setting changes are enabled only after the power supply has been turned off and on. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 188: Parity Bit
• And the next parameter setting is indicated. NOTE • Press Alarm/↓ button, and the stop bit will be indicated (‘STOPBIT’ on the SD). • Press Scale/↑ button, and the baud rate will be indicated (‘B-RATE’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 189 ■ TO QUIT, Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. IMPORTANT Modbus setting changes are enabled only after the power supply has been turned off and on. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 190: Stop Bit
• And the next parameter setting is indicated. NOTE • Press Alarm/↓ button, and the T1.5 timer will be indicated (‘T15’ on the SD). • Press Scale/↑ button, and the parity bit will be indicated (‘PARITY’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 191 Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. IMPORTANT Modbus setting changes are enabled only after the power supply has been turned off and on. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 192: Timer
• The second digit starts blinking, to which you can apply changes. • Set within the range of 01 to 60. NOTE The decimal point is not indicated. Set as ‘setting value × 0.1’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 193 • Modbus setting changes are enabled only after the power supply has been turned off and on. • The T1.5 and T3.5 timers are specified as 1.5 and 3.5 characters times in Modbus standard specifications. These pa- rameters are not necessary to be changed normally. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 194: Long Register
• And the next parameter setting is indicated. NOTE • Press Alarm/↓ button, and the device address will be indicated (‘EQP-NO’ on the SD). • Press Scale/↑ button, and the T3.5 timer will be indicated (‘T35’ on the SD). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 195 Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. IMPORTANT Modbus setting changes are enabled only after the power supply has been turned off and on. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 196: Loop Testing
24. LOOP TESTING The 47DAC can provide simulated analog output with the display value manually adjusted. It is called loop test output. It is convenient to check or calibrate a receiving instrument. The alarm trip and the BCD output function according to the scal- ing values during the loop test.
Page 197: Operating Procedure
• In moving on to Loop Test Output Mode while ‘-20000’ blinks, -10% of the display scaling span is indicated. • In moving on to Loop Test Output Mode while ‘100000’ blinks, 110% of the display scaling span is indicated. • The specified decimal point position is applied. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 198 ■ Decreasing display value brate the receiving instrument. Blinking Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. • The measuring is started with the loop test output reset. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 199: Confirming And Configuring Alarm Setpoints
SD to the bank No. indication (‘OFF’) or manual reset (‘ON’) can be selected. The default setting is “alarm set- point display automatically reset” (‘OFF’). The automatic return time is the same as the time set with the “automatic return time to Measuring Mode” . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 200: Configuration Of Alarm Setpoints
Press Shift and Up buttons to set the LL alarm setpoint. • Set within the range of -20000 to 100000. IMPORTANT Specify ‘------’ to disable the alarm output. NOTE Set the alarm setpoint with the decimal point position set in the decimal point position setting. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 201 Press Alarm/↓ button several times. NOTE When the manual sub display reset is set to “alarm setpoint display automatically reset” , the SD returns to the bank No. indication after the set automatic return time period. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 202: Manual Sub Display Reset
• The Manual sub display reset is indicated. • The SD indicates ‘S-DISP’ . Press Shift and Up buttons to select the manual sub display reset. Blinking • Select ‘OFF’ or ‘ON’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 203 • Press Alarm/↓ button, and the P output will be indicated (‘PASS’ on the SD). • Press Scale/↑ button, and the display refreshing rate will be indicated (‘D-REFSH’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 204: Forcing The Present Display Value To Zero
(5) Hold down Up button for 2 seconds or more to cancel the Forced Zero mode. The display value is forced to 0 once (Tare Adjustment). (6) Then the Tare Adjustment is canceled in approximately 1 second, and the Forced Zero is canceled in approximately 2 seconds. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 205 Hold down Up for ≥ 2 sec. (Tare Adj. cenceled in approx. 1 sec. and Forced Zero canceled in approx. another 1 sec.) *1 After executing Tare Adjustment, another Tare Adjustment can be executed. *2 Display depends on the settings and input. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 206 • The reference values in executing the Forced Zero and Tare Adjustment can be set to the ones other than ‘0’ using the 47DCFG or via Modbus communication. Refer to 47DCFG PC Configurator Software Users Manual and Modbus Proto- col Reference Guide for 47Dx for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 207: Retaining Max And Min Values
(3) The internal memory is reset for approx. 3 seconds after the power is off and on again, and then the unit starts to meas- ure MAX and MIN values again. NOTE With the MAX/MIN display control lockout set to ‘LV1’ , resetting with Max/Min button is not available. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 208 • The MAX and MIN values are not indicated while ‘S.ERR’ is indicated though the bargraph shows the signal level. In- crease or decrease the input signal within the measurable range and then press Max/Min button again. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 209: Setting Display Reading Type To Max Or Min Value
• The display reading type is indicated. • The SD indicates ‘M-DISP’ . Press Shift and Up buttons to select the display reading type. Blinking • Select one among ‘NORMAL’ , ‘MAX’ and ‘MIN’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 210 • Press Alarm/↓ button, and the high-pass filter will be indicated (‘HP-F’ on the SD). • Press Scale/↑ button, and the round off low-digit reading will be indicated (‘STEP’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 211: Retaining Measurement Status
• The ‘S.ERR’ indication or no measured data is held with the HOLD signal ON. • The Forced Zero and Tare Adjustment can be executed or canceled with the front button control while the HOLD signal is ON. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 212: Resetting Max/Min Values And Latching Alarm
• The MAX and MIN values can be reset with the RESET signal even when the MAX/MIN display control lockout is set to “lock MAX/MIN display reset” or “lock MAX/MIN display control” . • The RESET signal is not effective while ‘S.ERR’ is indicated. However all BCD outputs (including the status and DAV signals) turn OFF. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 213: Configuring Parameters Via Infrared Communication
31. CONFIGURING PARAMETERS VIA INFRARED COMMUNICATION The 47DAC is equipped with the infrared communication function in order to read and write parameters with a PC. The software 47DCFG is downloadable freely at M-System’s web site. Prepare the COP-IRU separately. The infrared communication is convenient in the following cases: •...
Page 214 L Type Holder COP-IRU Panel • Reading and writing parameters using the 47DCFG are available also via Modbus communication. In downloading, the main display indicates ‘MODBUS’ . Refer to 47DCFG PC Configurator Software Users Manual for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 215: Limiting Button Operation
■ TRANSITION TIME TO LOCKOUT SETTING MODE Time duration to hold down the buttons for transition to Lockout Setting Mode can be set within the range of 0 to 99 sec- onds. The default value is 5 seconds. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 216: Lockout Setting
• Press Alarm/↓ button, and the scaling setting lockout will be indicated (‘SC PRT’ on the SD). • Press Scale/↑ button, and the initialization will be indicated (‘INIT’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 217: Transition Time To Lockout Setting Mode
Then press Shift and Up buttons to set the transition Blinking time to Lockout Setting Mode. • The second digit starts blinking, to which you can apply changes. • Set within the range of 00 to 99. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 218 • Press Scale/↑ button, and the automatic return time to Measuring Mode will be indicated (‘RETURN’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 219: User Calibration
Input scaling value Zero and Span can be adjusted by applying actual input signals. Please note that M-System does not warrant the result of your own calibration (adjustment). The internal calibration data is overwritten every time the unit is calibrated and it is stored even if the power is turned off.
Page 220: Operating Procedure
Press Up button to go to the teach calibration (Zero) setting. • The present input is indicated. Blinking • ‘Tch’ indicator starts blinking in red. NOTE The decimal point position depends on the decimal point position setting. Disregard the decimal point to calibrate. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 221 • ‘Tch’ indicator turns on in green. IMPORTANT Confirm that the input signal is stable before pressing Up button. Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 222: Analog Output Adjustment
You can compensate deviation between the DC output and a device on site by the Analog Output Adjustment function. Please note that M-System does not warrant the result of your own adjustment. The internal adjustment data is overwritten every time the unit is adjusted and it is stored even if the power is turned off.
Page 223: Operating Procedure
• ‘Zro’ indicator turns on. NOTE Skip to Step 5 when the analog output 0% adjustment is not necessary. Press Shift button to switch the signal to increase (indication ■ Increasing output ‘UP’) or decrease (‘DOWN’). Blinking ■ Decreasing output Blinking 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 224 Press Up button until the desired output value. IMPORTANT • Confirm that the output signal is stable before pressing Up button while in checking it with a receiving instrument or a tester. • Adjustable range is 0 to 105%. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 225 • Press Scale/↑ button, and the analog output 0% adjustment will be indicated (‘ A ADJ L’ on the SD). Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 226: Inspection / Cleaning
• Check the terminal block screws periodically. In checking the screws, for safety, interrupt electricity to the power, input and alarm output. • Make sure periodically that the mounting brackets are fixed tightly. Loosened brackets may cause drop of the unit. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 227: Troubleshooting
• Error messages can be confirmed also via Modbus communication. Refer to Modbus Protocol Reference Guide for 47Dx for details. • The scaling error can be recognized with the OVF signal of the BCD output. Refer to 22. SETTING BCD OUTPUT for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 228: Initializing Setting Values
• The SD indicates ‘INIT’ . Press Shift or Up button to select ‘RESET’. Blinking Press Alarm/↓ or Scale/↑ button to execute the initialization. • All the settings are initialized and the display returns to Measuring Mode. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 229: Confirming Firmware Version
Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode. NOTE The firmware version number can be confirmed also with the 47DCFG or via Modbus communication. Refer to 47DCFG PC Configurator Software Users Manual or Modbus Protocol Reference Guide for 47Dx for details. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 230: Appendices
Device address, baud rate, parity bit, stop bit, T1.5 timer, T3.5 timer, long register Loop test output ---- Read rate 20 times/sec. (50 msec.) Averaging Simple average, moving average or no averaging Lockout setting Prohibiting certain operations; protecting settings 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 231 Turns on in green at zero setting of scaling setting mode Turns on in green at span setting of scaling setting mode Turns on in green at input scaling, blinking in red at teach calibration 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 232 0 – 20 mA 0-20MA Operational range -2 – +22 mA Load resistance 400 Ω maximum Analog output type: Output range 4 – 20 mA 4-20MA Operational range 2.4 – 21.6 mA Load resistance 400 Ω maximum 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 233 ≤ 1.1 V Leakage current ≤ 500 μA Event trigger input Dry contact or NPN open collector Input current ≤ 3 mA Sensing Contact detecting ≤ 1.5 V at ON; ≥ 3 V at OFF 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 234 2000 V AC @ 1 minute (input to DC output to HH output or H output to L output or LL output to network or BCD output or event trigger input to power to ground) 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 235: Model Numbering
9: Alarm output: N.O. photo MOSFET relay, 4 points + BCD output A: Event trigger input + BCD output ■ SPECIFICATIONS OF OPTION: Q COATING (For the detail, refer to M-System's web site.) Moving parts and indicators are not coated. /C01: Silicone coating /C02: Polyurethane coating...
Page 236: Parameter List
NOTE 2: SUB DISPLAY/INDICATOR: = ON, = Blinking NOTE 3: 1 and 2 in the columns of SETTING RANGE and DEFAULT VALUE in Measuring and Scaling Setting Modes show input codes. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 237 NOTE 4: ‘Tch’ indicator in the columns of the Teach calibration (Zero) and (Span) in Scaling Setting Mode blinks in red. NOTE 5: 1 and 2 in the columns of LL, L, H and HH alarm setpoints in Alarm Setting Mode show input codes. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 238 *1 Conforms to decimal point position setting. NOTE 2: SUB DISPLAY/INDICATOR: = ON, = Blinking NOTE 5: 1 and 2 in the columns of LL, L, H and HH alarm setpoints in Alarm Setting Mode show input codes. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 239 Measured value, ---- ---- MAX value, MIN value High-pass filter High-pass filter OFF, ---- ---- high-pass filter ON Backlight brightness 1 (dark) to 3 (bright) ---- ---- NOTE 2: SUB DISPLAY/INDICATOR: = ON, = Blinking 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 240 Forced Zero control / lock Tare Adj. control Loop test output Unlock, lock ---- ---- lockout IR communication Enable, disable ---- ---- lockout Modbus communica- Enable, disable ---- ---- tion lockout Initialization OFF, initialization ---- ---- 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 241 VALUE POINT POSITION Infrared IR communication ---- ---- ---- ---- ---- communi- (display blinking) cation Loop test Loop test output -20000 – 100000 ---- User-defined output (display blinking) *1 Conforms to decimal point position setting. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 242: Parameter Map
≥ 1 sec. Displaying MAX value Forced Zero Displaying MIN value NOTE The display reading type after power on can be changed to “MAX value” or “MIN value” with the display reading type set- ting. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 243 NOTE • The alarm setpoints cannot be confirmed and configured with the alarm setting lockout set to ‘LV2’ . • Alarm setpoints can be confirmed whenever in Measuring Mode except in error indication (excluding ‘S.ERR’). 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 244: Scaling Setting Mode
Bargraph lower limit adjustment -20000 to 100000 UP (increasing), DOWN (decreasing) Selectable only with the DC output code ‘1’. NOTE The bargraph lower and upper limits are disabled with “no bargraph” selected for the bargraph type parameter. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 245: Alarm Setting Mode
L ON delay time OFF (no copying) ON (copy current bank value to all banks) NOTE The bank No. and bank copy are enabled with “enabled via the front button control” selected for the bank switching pa- rameter. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 246 Bank copy OFF (no copying) ON (copy current bank value to all banks) NOTE The bank No. and bank copy are enabled with “enabled via the front button control” selected for the bank switching pa- rameter. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 247: Advanced Setting Mode
• With the event trigger mode set to “normal” , the ON timing delay and OFF timing delay are disabled. • With the event trigger mode set to “sampling hold” , the OFF timing delay is disabled. • With the low-end cutout set to OFF, the low-end cutout value setting is locked. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 248 • With the event trigger mode set to “normal” , the ON timing delay and OFF timing delay are disabled. • With the event trigger mode set to “sampling hold” , the OFF timing delay is disabled. • With the low-end cutout set to OFF, the low-end cutout value setting is locked. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 249: Modbus Setting Mode
Transition to Modbus Setting Mode is available only with the I/O option code ‘4’ , ‘7’ or ‘8’ (network interface). 36.4.6 INFRARED COMMUNICATION MODE Infrared Communicationt Mode Measurement stopped for ≥ 3 sec. Measuring Mode IR Communication Measurement started for ≥ 1 sec. 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 250: Lockout Setting Mode
≥ 5 sec. Measuring Mode Loop test output Measurement -20000 to 100000 started for ≥ 1 sec. NOTE Transition to Loop Test Output Mode is available only with the DC output code ‘1’ . 47DAC OPERATING MANUAL EM-9518-B Rev.4...
Page 251: Character Set
36.5 CHARACTER SET ■ NUMERALS AND NEGATIVE SIGN ■ ALPHABET 47DAC OPERATING MANUAL EM-9518-B Rev.4...

This manual is also suitable for:

47 series

M-system 47DAC Operating Manual

Quick Links

Need help?

Questions and answers

Related Manuals for M-system 47DAC

Summary of Contents for M-system 47DAC

This manual is also suitable for:

Table of Contents
