Press Shift button to shift the display into the setting standby
mode. Then press Shift and Up buttons to set the bargraph
upper limit.

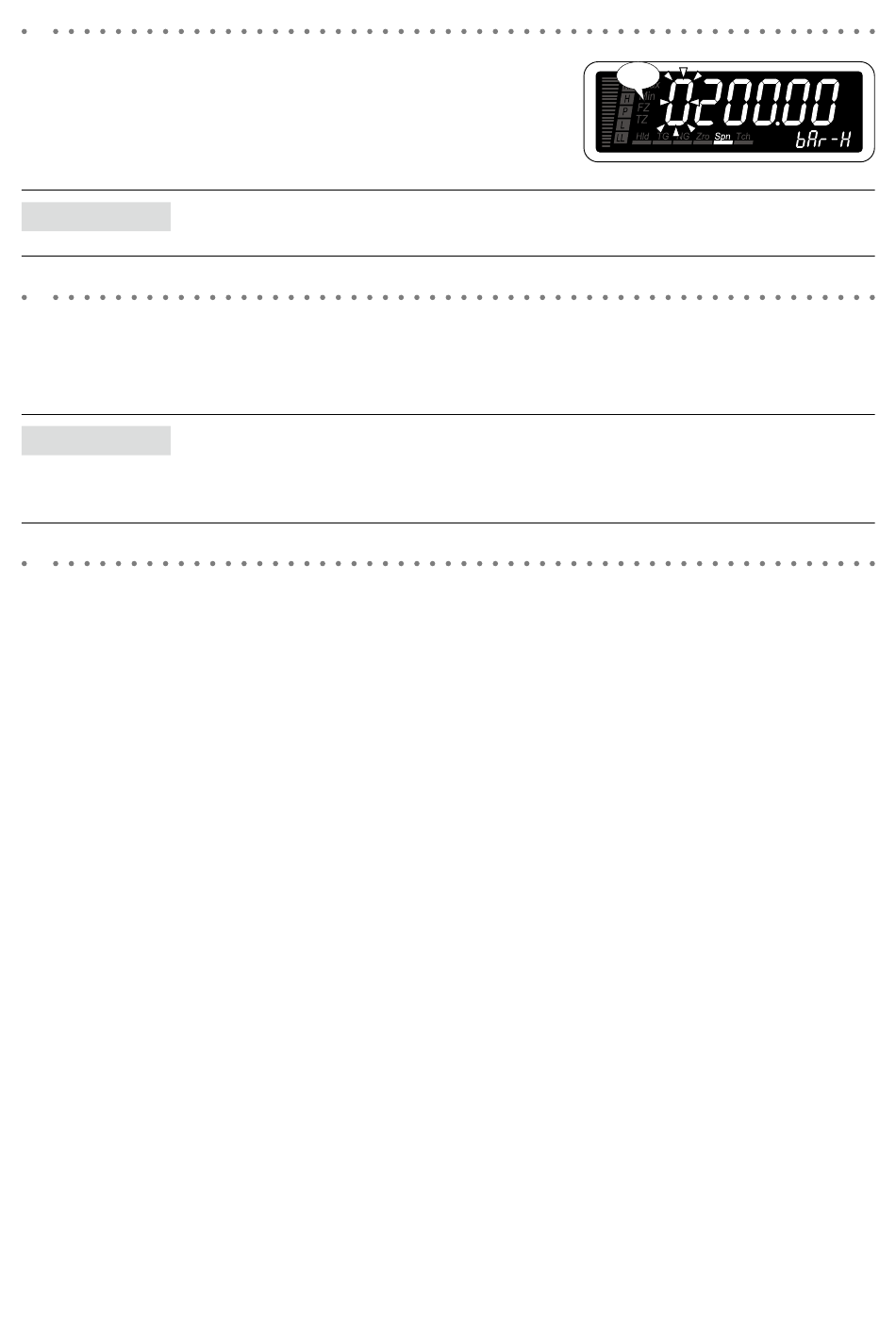

• The sixth digit starts blinking, to which you can apply changes.
• Set within the range of -20000 to 100000.
NOTE
Set the bargraph upper limit with the decimal point position set in the decimal point position setting.
6
Press Alarm/↓ or Scale/↑ button to apply the new value.
• The bargraph upper limit is registered and the next parameter setting is indicated.
NOTE
• Press Alarm/↓ button, and the input type will be indicated ('INTYPE' on the SD), or the analog output type will be indi-
cated (' A NG TYP' on the SD).
• Press Scale/↑ button, and the bargraph lower limit will be indicated ('BAR-L' on the SD).
7
Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode.
Blinking
47DAC OPERATING MANUAL EM-9518-B Rev.4
