36.4 PARAMETER MAP

Parameters, their settings and display order in each mode are as shown in the following figures.
The displays show default values, and depend on the specifications, input and settings.

36.4.1 OPERATION IN MEASURING MODE

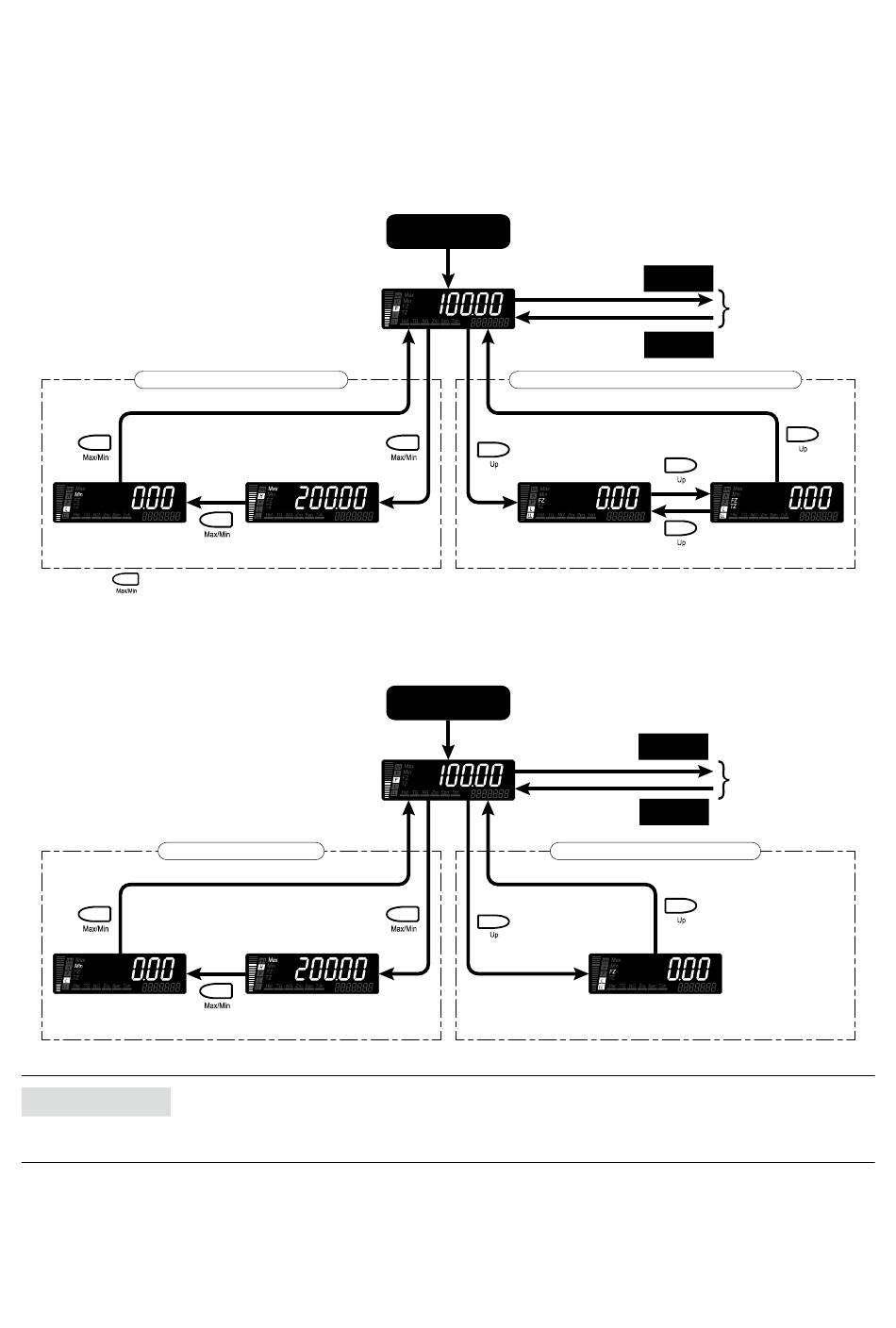

■ DISPLAY AND RESET OF MAX/MIN VALUES, EXECUTION AND CANCEL OF FORCED ZERO/TARE ADJUSTMENT
• Lockout 'LV0' (unlock MAX/MIN display control, unlock Forced Zero and Tare Adjustment control)
Displaying/resetting MAX/MIN values
Displaying MIN value
* Hold down for ≥ 1 sec. to reset MAX/MIN values.
• Lockout 'LV1' (lock MAX/MIN display reset, unlock Forced Zero control / lock Tare Adjustment control)
Displaying MAX/MIN values
Displaying MIN value
NOTE
The display reading type after power on can be changed to "MAX value" or "MIN value" with the display reading type set-
ting.
POWER ON
Present value
Displaying MAX value
POWER ON
Present value
Displaying MAX value
Measurement
Measurement
Executing/canceling Forced Zero/Tare Adjustment
Canceling Forced Zero
Executing Forced Zero
Executing Tare Adj.
Forced Zero
Canceling Tare Adj.
Measurement
Measurement
Measurement
Executing/canceling Forced Zero
Canceling Forced Zero
Executing Forced Zero
Forced Zero
