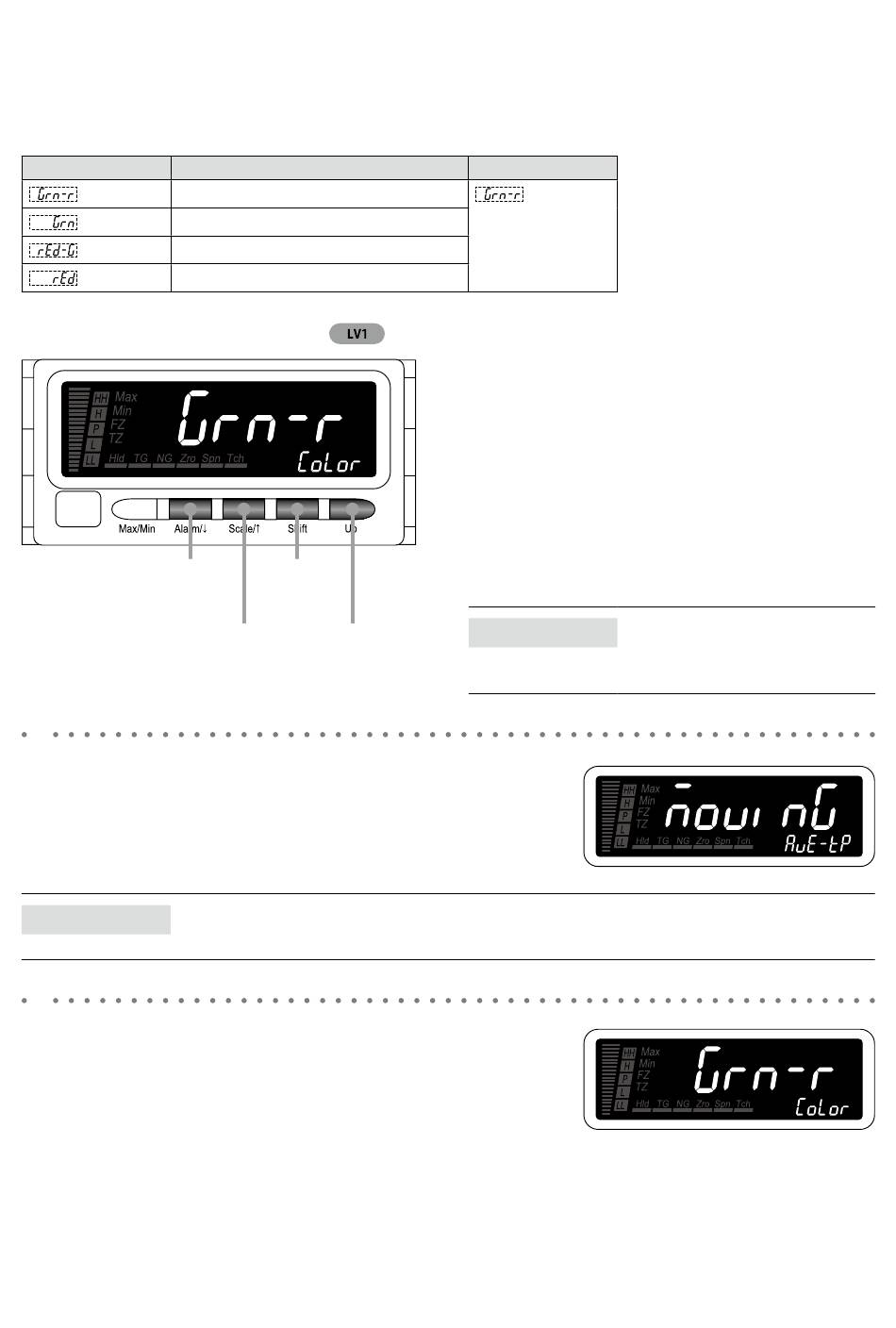

14. SETTING DISPLAY COLOR

The main display color red or green can be selected or switched. The display colors can be switched depending whether
in each mode and in the P zone, or in alarm and error status.
■ DISPLAY COLOR
MAIN DISPLAY FUNCTION
Green (normal) to red (alarm)
Green
Red (normal) to green (alarm)
Red

14.1 OPERATING PROCEDURE

1,2,
4,5
1
Hold down Alarm/↓ and Scale/↑ buttons at once for 3 seconds
or more to move on to Advanced Setting Mode.
• The averaging type is indicated.
• The SD indicates ' A VE-TP' .
NOTE
With the I/O option code '6' or ' A ' , the event trigger mode is indicated ('EVENT' on the SD).
2
Press Alarm/↓ or Scale/↑ button to go to the display color set-
ting.
• The display color is indicated.
• The SD indicates 'COLOR' .
3
1,2, 3
4,5
DEFAULT VALUE
NOTE
The following figures are display examples. The displays
depend on the specifications and settings.
47DAC OPERATING MANUAL EM-9518-B Rev.4 145
