1.7.5 WIRING DC OUTPUT

IMPORTANT
• Connect load resistance within the specifications.
• Do not connect anything with no-DC-output type.
• Take measures to reduce noise as much as possible, e.g. by using shielded twisted pair wires for the output signal.
Ground the output shield to the most stable earth to prevent noise troubles.

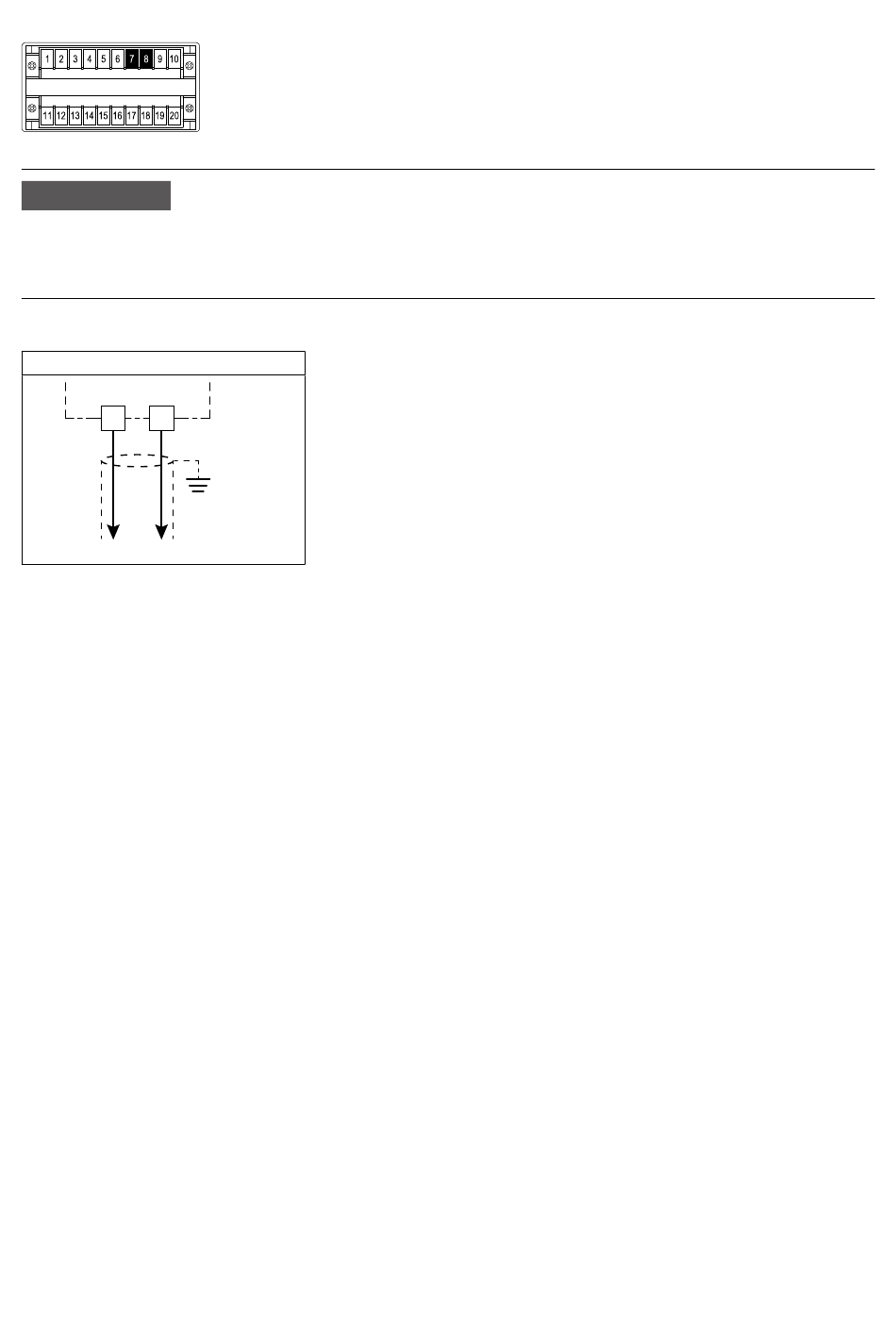

DC output
+ –
7 8
Ground
(resistance
100 ohms or less)
DC output
Voltage or current signal is output.
