20.1 OPERATING PROCEDURE

1,2,
4,5
1

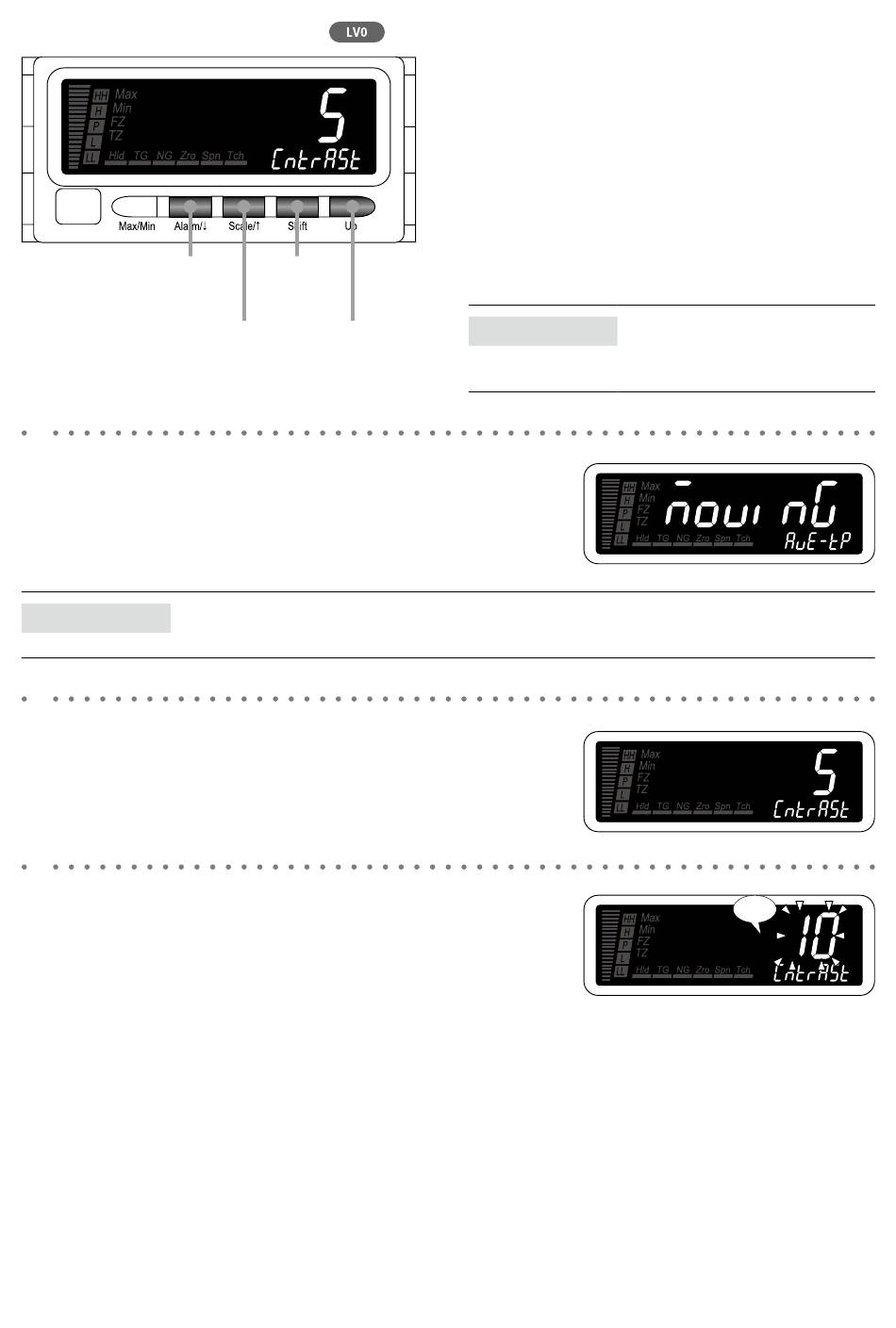

Hold down Alarm/↓ and Scale/↑ buttons at once for 3 seconds
or more to move on to Advanced Setting Mode.
• The averaging type is indicated.
• The SD indicates ' A VE-TP' .
NOTE
With the I/O option code '6' or ' A ' , the event trigger mode is indicated ('EVENT' on the SD).
2
Press Alarm/↓ or Scale/↑ button to go to the LCD contrast set-
ting.
• The LCD contrast is indicated.
• The SD indicates 'CNTRAST' .
3
Press Shift and Up buttons to select the LCD contrast.
• Select one among '1' , '2' , '3' , '4' , '5' , '6' , '7' , '8' , '9' and '10' .
3
1,2, 3
4,5
NOTE
The following figures are display examples. The displays
depend on the specifications and settings.
