2.2 BASIC SETTING OPERATION AND INSTRUCTIONS

This section describes basic operation and instructions when setting parameters.

2.2.1 BASIC SETTING OPERATION

Parameters can be grouped into three setting types, "numerical value setting" , "setting value selection" and "decimal point
position selection" . Basic operation of each type is as shown below.
■ NUMERICAL VALUE SETTING

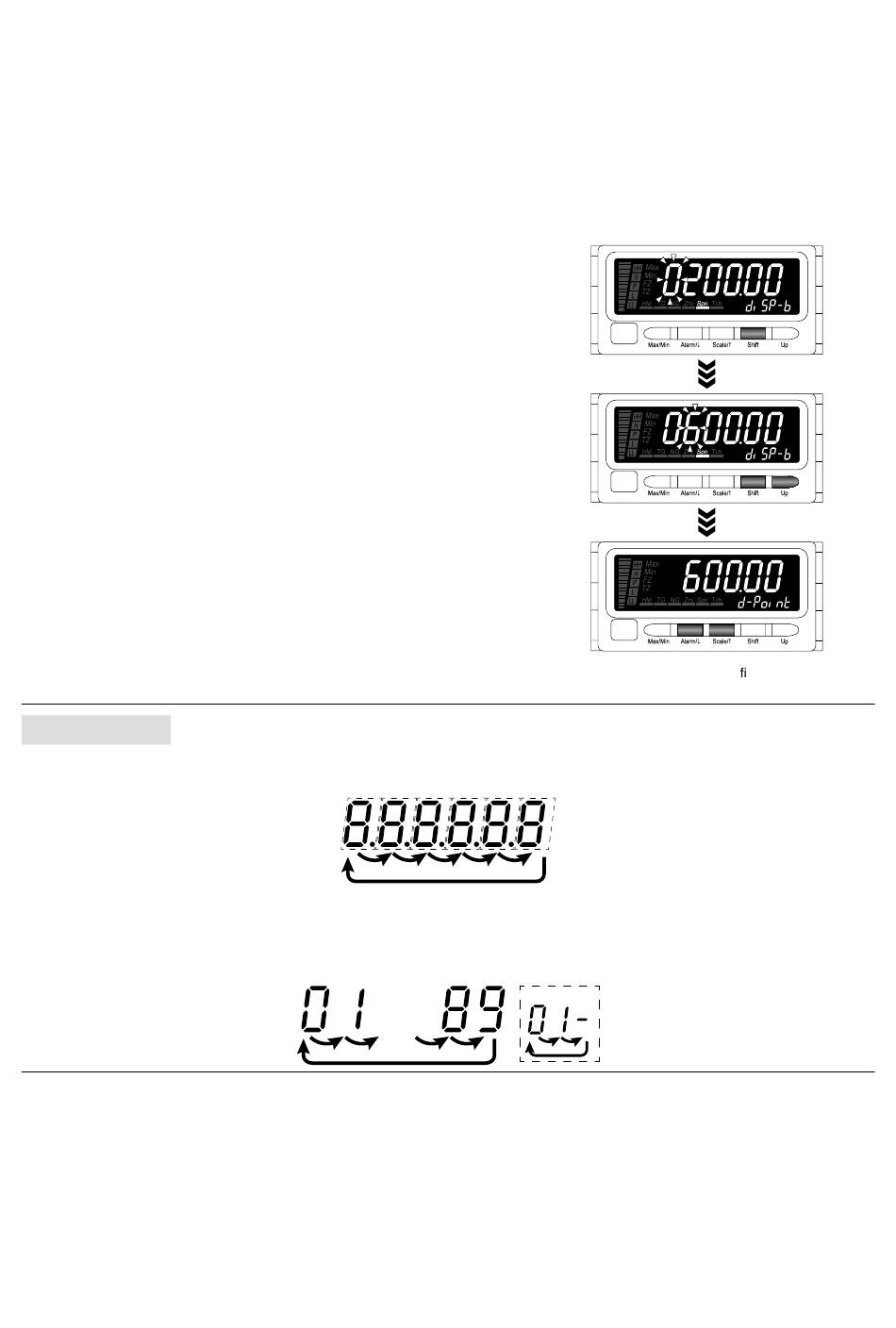

1
Press Shift button to shift the display into the setting standby
mode.
• The most significant digit starts blinking.
2
Press Shift and Up buttons to set a numerical value.
• Press Shift button to go to the next digit.
• Press Up button to change the blinking value.
3
Press Alarm/↓ or Scale/↑ button to apply the new setting.
• The next or previous parameter setting is indicated.
NOTE
■ SHIFTING DIGITS
Each time pressing Shift button, the blinking digit moves to the right.
■ SETTING A NUMERICAL VALUE
• Each time pressing Up button, the numeral is incremented by 1. In setting an alarm setpoint, the indication following '9'
will be '-' .
• The negative sign (-) must be set to the 6th digit. For example, set '-004.00' instead of '-4.00' .
* 6th digit
・・・・・
