M-system 47DAC Operating Manual page 198

2
Press Shift and Up buttons to adjust the display value.
• Press Shift button to switch the signal to increase or decrease.
Increase with 'TEST UP' indicated on the SD.
Decrease with 'TEST DN' indicated on the SD.
• Press Up button to control it toward the desired output value.
• Hold down Up button to control at high speed.
• The DC and BCD outputs change according to the display value.
• When the display value reaches the desired one, check or cali-
brate the receiving instrument.
3
Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode.
• The measuring is started with the loop test output reset.

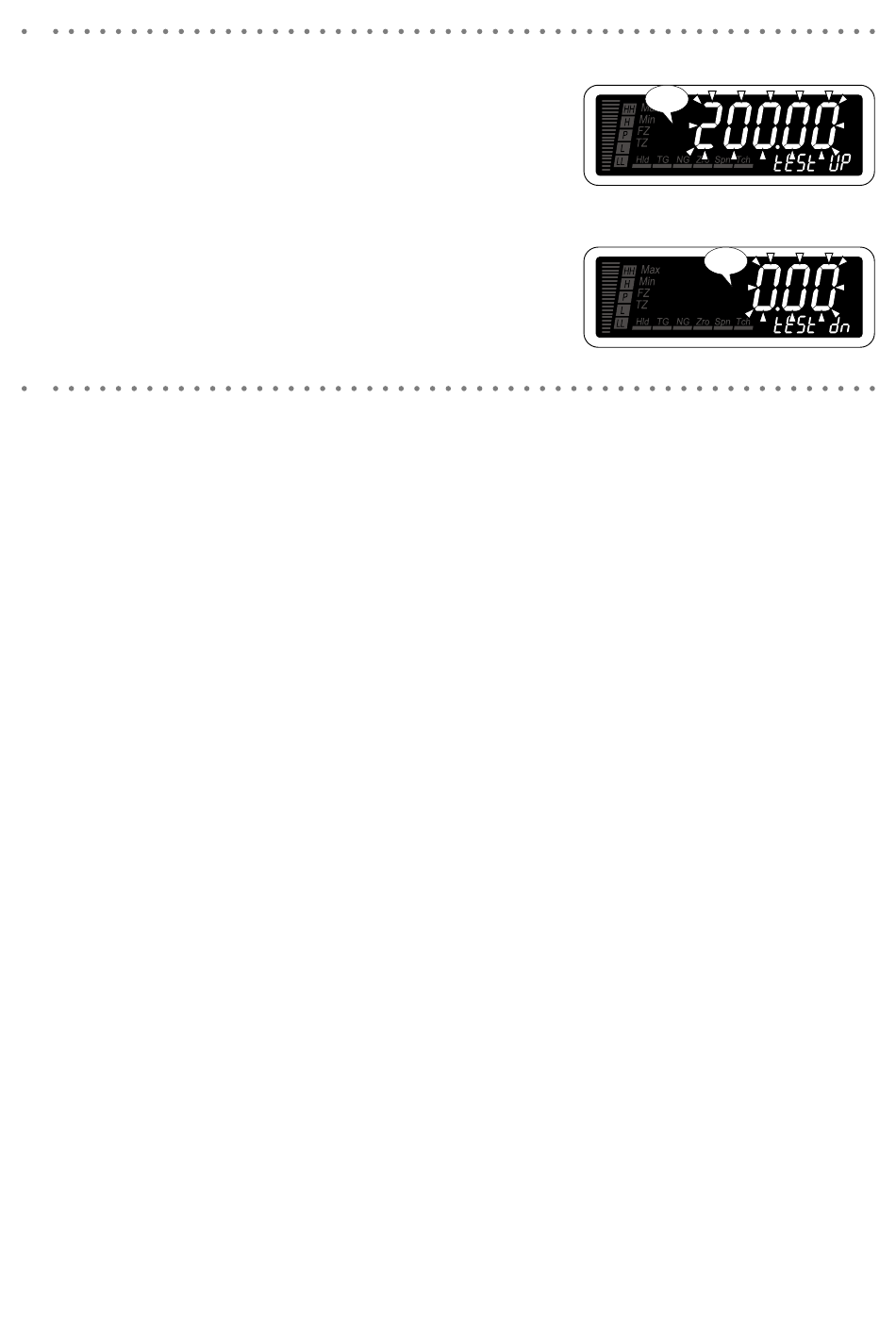

■ Increasing display value
Blinking
■ Decreasing display value
47DAC OPERATING MANUAL EM-9518-B Rev.4
Blinking
198
