7. SETTING BARGRAPH

A bargraph with 20 segments divided by 10 is in the left on the display, which shows the signal level of the indicated value
(present, MAX or MIN value) against the scaled range. The bargraph range is set with the bargraph lower and upper limits.
The bargraph type can be selected among those shown in the following table.
The bargraph lower and upper limits can be set within the range of -20000 to 100000.

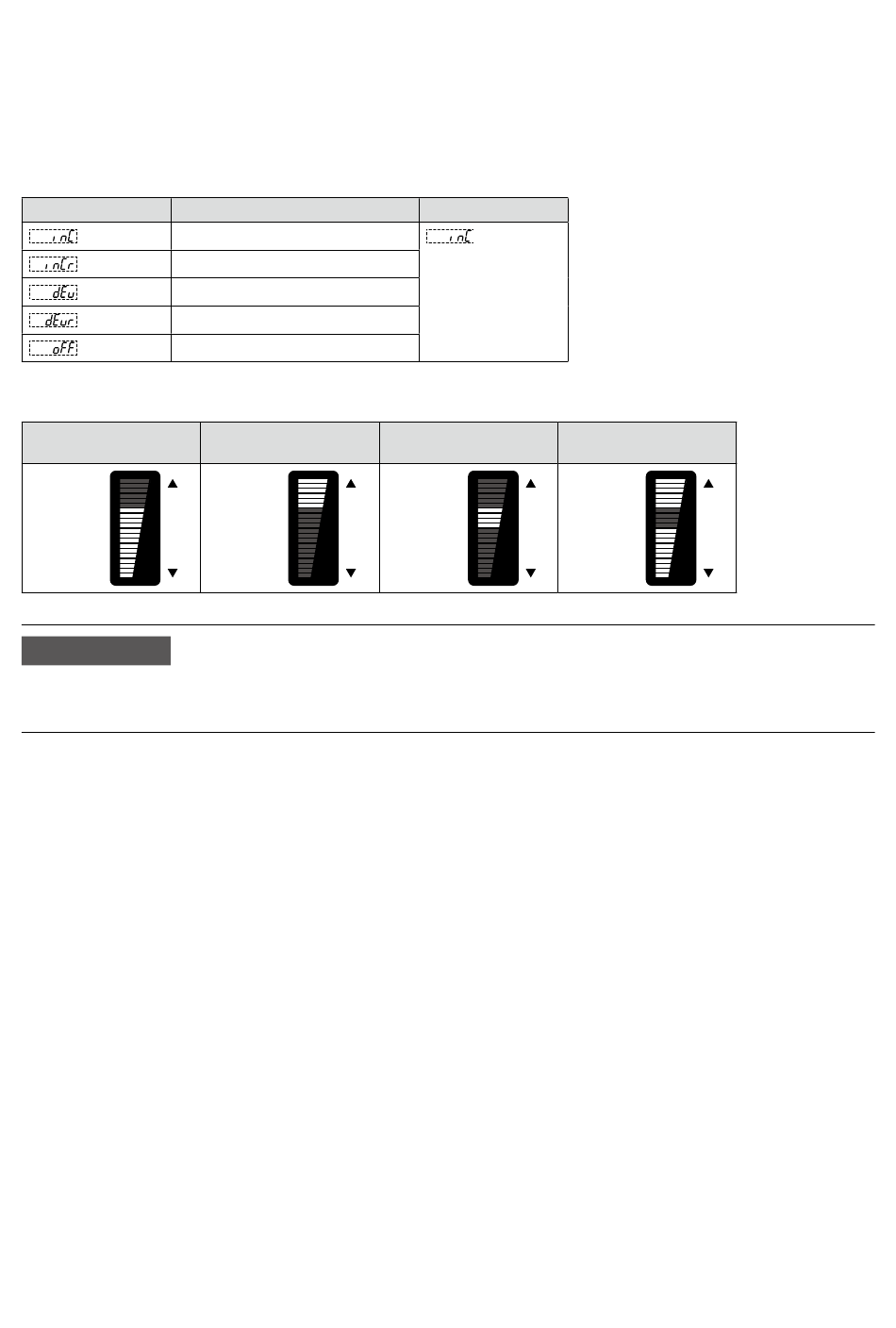

■ BARGRAPH TYPE
MAIN DISPLAY FUNCTION
Unidirectional bar
Unidirectional bar (reverse LCD)
Bidirectional bar
Bidirectional bar (reverse LCD)
No bargraph
■ BARGRAPH IMAGE
UNIDIRECTIONAL
Upper limit 100
Up
Present value 70
Down
Lower limit 0
IMPORTANT
• The bidirectional bar shows deviation in both directions from the middle point between the lower and upper limits.
• The number of the LED segments is 20 divided by 10. The bar increases or decreases by 2 segments.
• In setting 'bargraph upper limit < bargraph lower limit' , the bargraph image is upside down of the above ones.
UNIDIRECTIONAL
(REVERSE LCD)
Upper limit 100
Up
Present value 70
Down
Lower limit 0
DEFAULT VALUE
BIDIRECTIONAL
Upper limit 100
Up
Present value 70
Middle point 50
Down
Lower limit 0
47DAC OPERATING MANUAL EM-9518-B Rev.4
BIDIRECTIONAL
(REVERSE LCD)
Upper limit 100
Up
Present value 70
Middle point 50
Down
Lower limit 0
