M-system 47DAC Operating Manual page 76

Continued from the previous page
*1 Enabled with the I/O option code '6' or 'A' (event tripper input).
*2 Disabled with "normal" selected for the event trigger mode parameter.
*3 Disabled with "normal" or "sampling hold" selected for the event trigger mode parameter.
*4 With the cutout set to OFF, the low-end cutout value setting is locked.
*5 Enabled with "completely unlock Advanced Setting Mode" selected for the advanced setting lockout parameter.
*6 Enabled with the I/O option code '5' , '9' or 'A' (BCD output).
NOTE
• The display depends on the specifications and settings. The above displays show default values.
• Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode from each parameter.
(4) Parameter shifting in Modbus Setting Mode

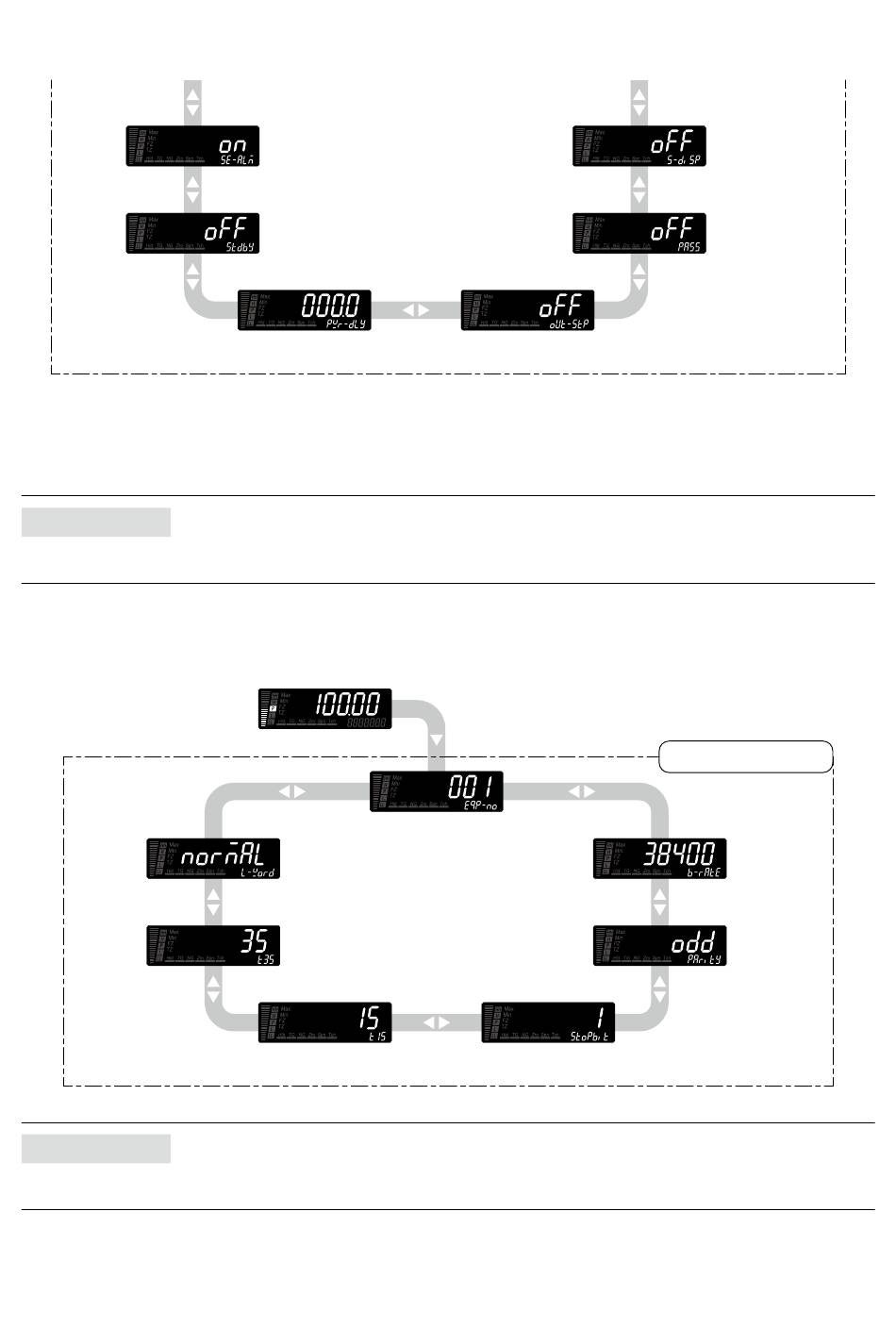

In Modbus Setting Mode, pressing Alarm/↓ button shifts one parameter to the next (clockwise in the following figure).
Pressing Scale/↑ button shifts one to the previous (counterclockwise).
NOTE
• The display depends on the specifications and settings. The above displays show default values.
• Hold down Alarm/↓ or Scale/↑ button for 1 second or more to return to Measuring Mode from each parameter.
Scaling error *5
Standby sequence
*5
Alarm power ON delay *5
Measuring Mode
Device address
Long register
T3.5 timer
T1.5 timer
Continued from the previous page
Latching alarm *5
Hold down Alarm/↓ + Shift
at once for ≥ 3 sec.
Stop bit
47DAC OPERATING MANUAL EM-9518-B Rev.4
Manual sub display reset *5
P output
*5
Modbus Setting Mode
Baud rate
Parity bit
76
