3.2 OPERATING PROCEDURE

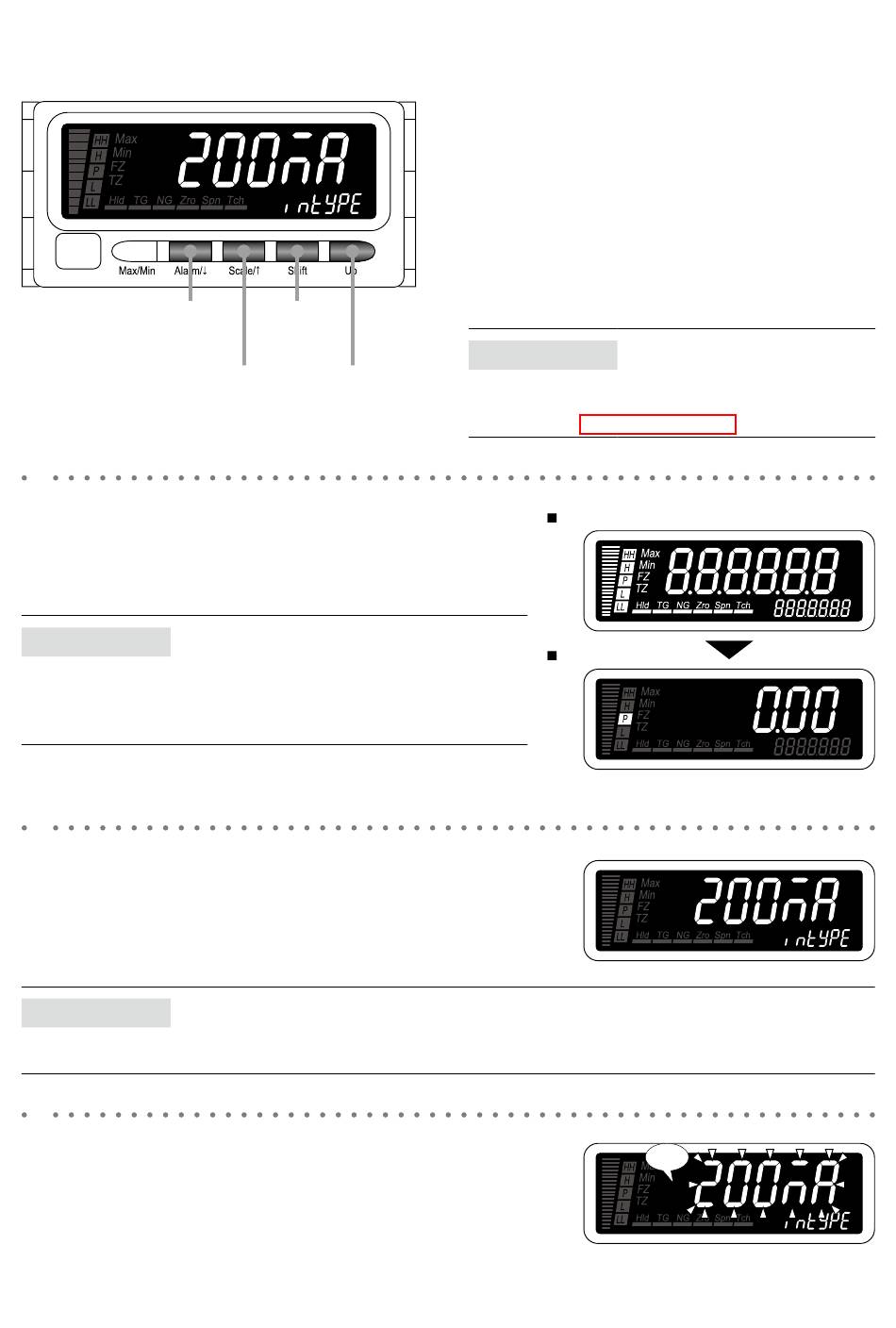

Procedures to change '200MA' (measuring range 0 – 200 mA) (default) to '20MA' (measuring range 0 – 20 mA) are de-
scribed here.
5
1
Confirm the wiring, and turn on the power.
• All the indications turn on for approximately 3 seconds and then
the display moves on to Measuring Mode.
NOTE
• Indication 'S.ERR' may blink, which shows the input out of the meas-
uring range and does not show the unit failure.
• The SD indicates the bank No. with the bank switching set to "ena-
bled" .
2
Hold down Scale/↑ button for 3 seconds or more to move on to
Scaling Setting Mode.
• The input type is indicated.
• The SD indicates 'INTYPE' .
NOTE
Some alarm indicators turn on with the parameter display. The alarm indication is due to the last status before mode
transition held but does not show the unit failure.
3
Press Shift button to shift the display into the setting standby
mode.
• The indication '200MA' starts blinking, to which you can apply
changes.
3
2,5 4
NOTE
The left figure shows a display example (default value
of input code '2'). The display depends on the and set-
tings. Refer to 3.1 INPUT TYPE LIST for details.
Immediately after power on (all indicators on)
Measuring Mode
*1 Display depends on the settings and input.
47DAC OPERATING MANUAL EM-9518-B Rev.4
