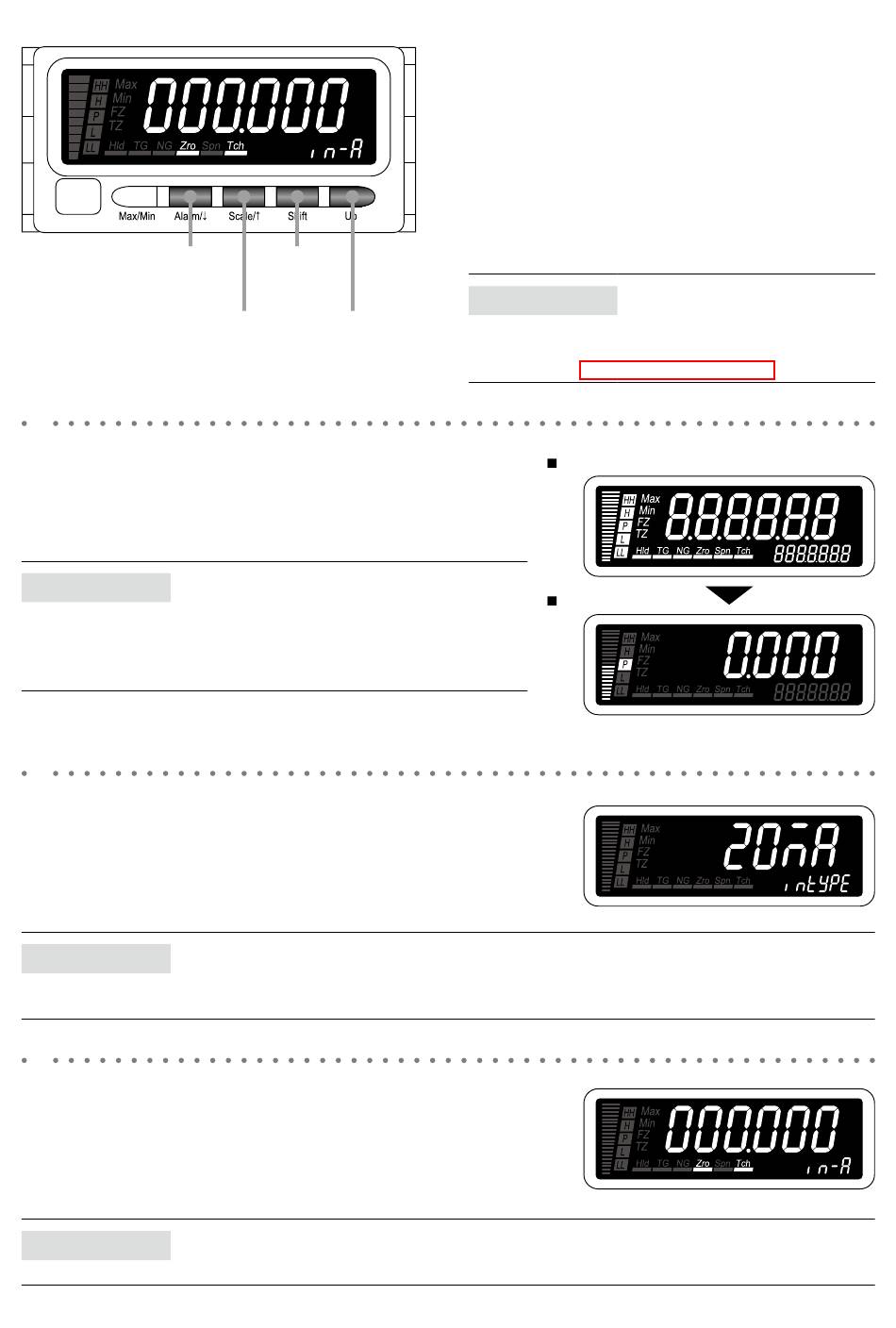

4.1.2 OPERATING PROCEDURE

3,6
1
Confirm the wiring, and turn on the power.
• All the indications turn on for approximately 3 seconds and then
the display moves on to Measuring Mode.
NOTE
• Indication 'S.ERR' may blink, which shows the input out of the meas-
uring range and does not show the unit failure.
• The SD indicates the bank No. with the bank switching set to "ena-
bled" .
2
Hold down Scale/↑ button for 3 seconds or more to move on to
Scaling Setting Mode.
• The input type is indicated.
• The SD indicates 'INTYPE' .
NOTE
Some alarm indicators turn on with the parameter display. The alarm indication is due to the last status before mode
transition held but does not show the unit failure.
3
Press Alarm/↓ or Scale/↑ button to go to the input scaling
value Zero setting.
• The input scaling value Zero is indicated.
• The SD indicates 'IN-A' .
• 'Zro' and 'Tch' indicators turn on.
NOTE
Skip to Step 7 if the default value is acceptable.
4,5
2,3, 5
6
NOTE
The left figure shows a display example (default value of
input type '20MA'). The display depends on the and set-
tings. Refer to 4.1.1 INPUT SCALING LIST for details.
Immediately after power on (all indicators on)
Measuring Mode
*1 Display depends on the settings and input.
