16.1 OPERATING PROCEDURE

1,2,
4,5
1

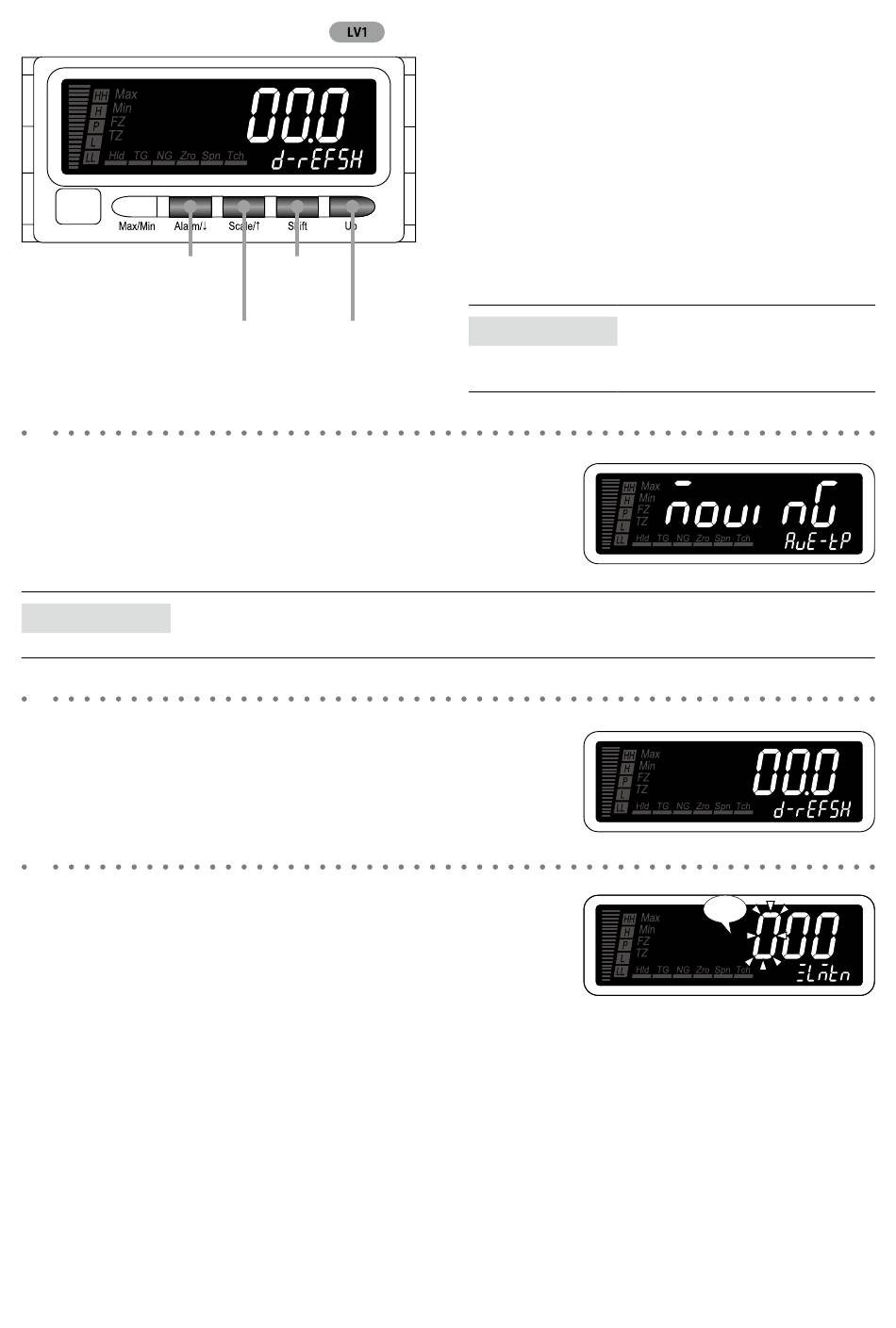

Hold down Alarm/↓ and Scale/↑ buttons at once for 3 seconds
or more to move on to Advanced Setting Mode.
• The averaging type is indicated.
• The SD indicates ' A VE-TP' .
NOTE
With the I/O option code '6' or ' A ' , the event trigger mode is indicated ('EVENT' on the SD).
2
Press Alarm/↓ or Scale/↑ button to go to the display refreshing
rate setting.
• The display refreshing rate is indicated.
• The SD indicates 'D-REFSH' .
3
Press Shift button to shift the display into the setting standby
mode. Then press Shift and Up buttons to set the display
refreshing rate.
• The third digit starts blinking, to which you can apply changes.
• Set within the range of 00.0 to 99.9.
3
1,2, 3
4,5
NOTE
The following figures are display examples. The displays
depend on the specifications and settings.
