1.7.11 WIRING POWER

CODE RATING
M2 100 to 240 V AC
R 24 V DC
P 110 V DC
IMPORTANT
• For safety, make sure that wiring is performed by qualified personnel only.
• In order to prevent potential electric shock, wire the unit after turning off the power supply and making sure that the
power is not supplied to the cable.
• Use wires as thick as possible and twist them from the end.
• For DC power, confirm the polarity.

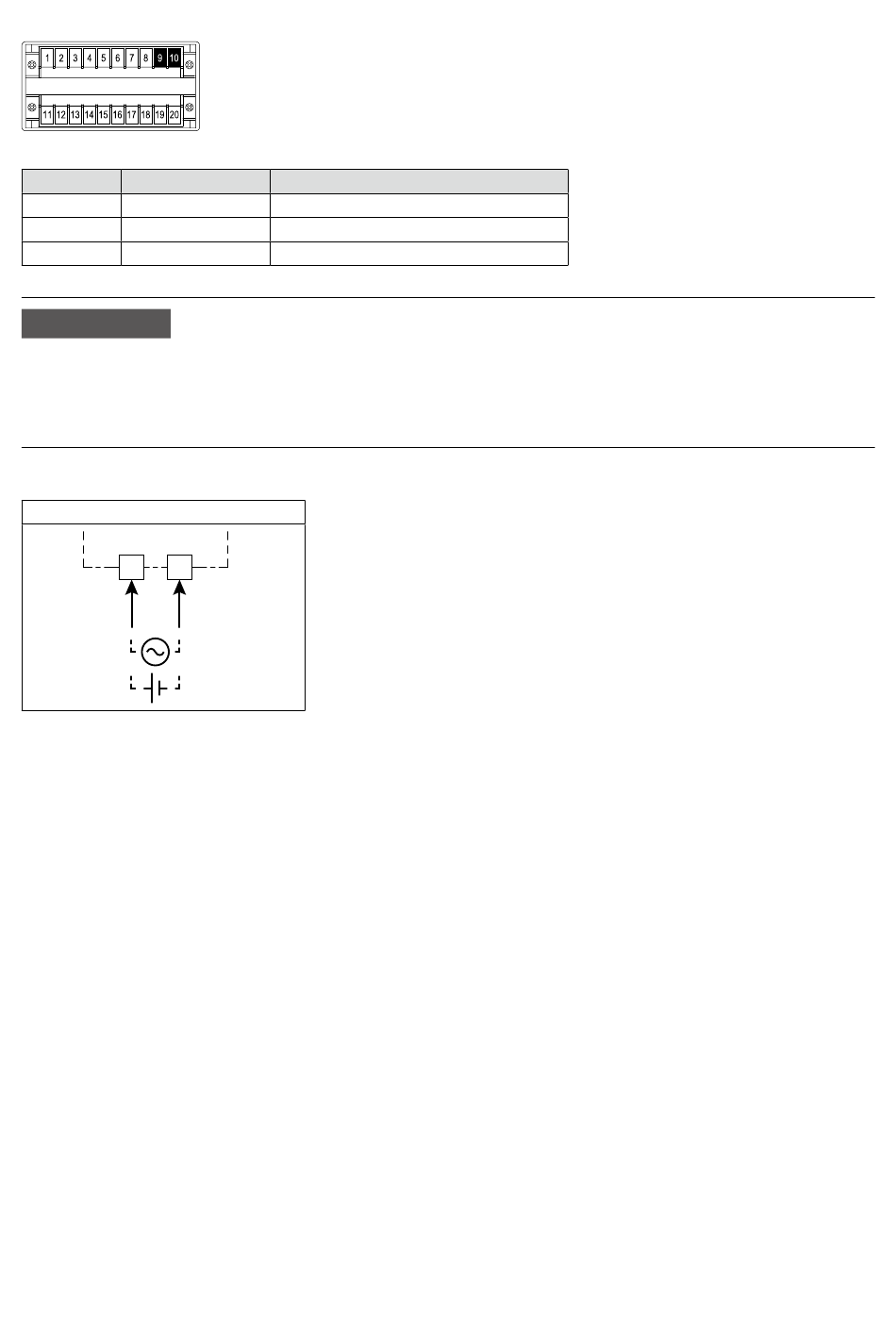

Power
U(+) V(–)
9
10
AC power
DC power
‒
+
Connect power according to the power input code. The power specifications are shown in the
following table.
PERMISSIBLE RANGE
85 to 264 V AC, 50/60 Hz Max. 12 VA
±10% approx. 3.5 W
85 to 150 V DC approx. 3.5 W
47DAC OPERATING MANUAL EM-9518-B Rev.4 35
