(Scaling)

Changes the input of VOLT, TC and RTD into a quantity.
Setting the unit is possible.(See 7.1.3 on page 58)

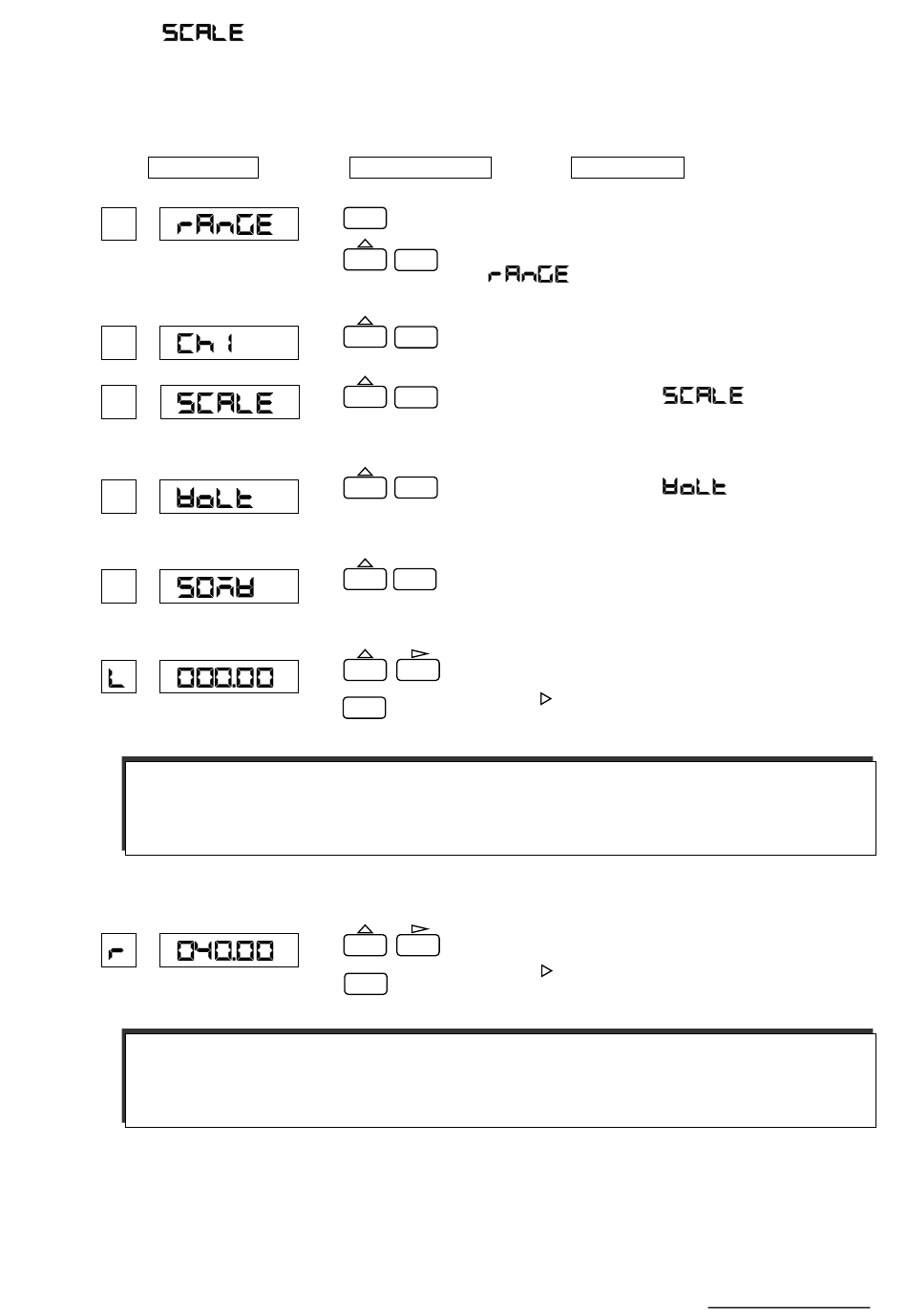

Example) When setting the voltage of 0 to 40 mV and scale of 000.00 to 100.00 for Channel 1.
Display
(Zero input value)
[Note]
When input TC and RTD, set the Zero input value equal to the Zero-side scale value.
But, set a decimal point position to the standard position. (＊1:next page)
(Span input value)
[Note]
When input TC and RTD, set the Span input value equal to the Span-side scale value.
But, set a decimal point position to the standard position. (＊2:next page)
Operation keys
ESC
Hold down the "MENU" key for 3 seconds or more
3sec
MENU
to enter the setup mode. Use the △ key to display
PRINT
ENT
"
Use the △ key to select the channel you want to set.
PRINT ENT
Press the "ENT" key.
Use the △ key to select "
PRINT ENT
Press the "ENT" key.
Use the △ key to select "
PRINT ENT
Press the "ENT" key.
Use the △ key to select a range(50 mV).
PRINT ENT
Press the "ENT" key.
Use the △ key to select a numeral.
PRINT FEED
Use the
ENT
Use the △ key to select a numeral.
FEED
PRINT
Use the
ENT
―48―
Description
". Press the "ENT" key.
key to shift a digit. Press the "ENT" key.
key to shift a digit. Press the "ENT" key.
