5.2 Setting the Ribbon Cassette

CAUTION
If the chart holder is taken out with recording operation being activated, the ink ribbon may be
damaged. To replace the ribbon cassette, be sure to press the "RUN" key to stop recording.
If the ribbon cassette is not set properly, the recording color may change or the ribbon may be
damaged.
(1) Pressing the "RUN" key for 3 seconds or more
Stop recording. With the power turned on, press the "RUN" key for 3 seconds or more.
Once recording stops, the RUN lamp goes off.(See Fig. 5.1 on page 23)
(2) Opening the Door
Push the door hook to unlock the door. Pull the door to this side to open it. (See Fig.5.2 on page 23)
WARNING
Because you may be hurt when you put fingers at the time of the opening and closing of the
door, please be careful.
CAUTION
Maximum angle of the door in opened-state is 135 degree. Do not further open the door otherwise
hinge will be broken.
(3) Taking out the Ribbon Cassette
Grab the left side of the ribbon cassette. Holding down the ribbon holder, take out the ribbon
cassette to the front.
Ribbon Cassette

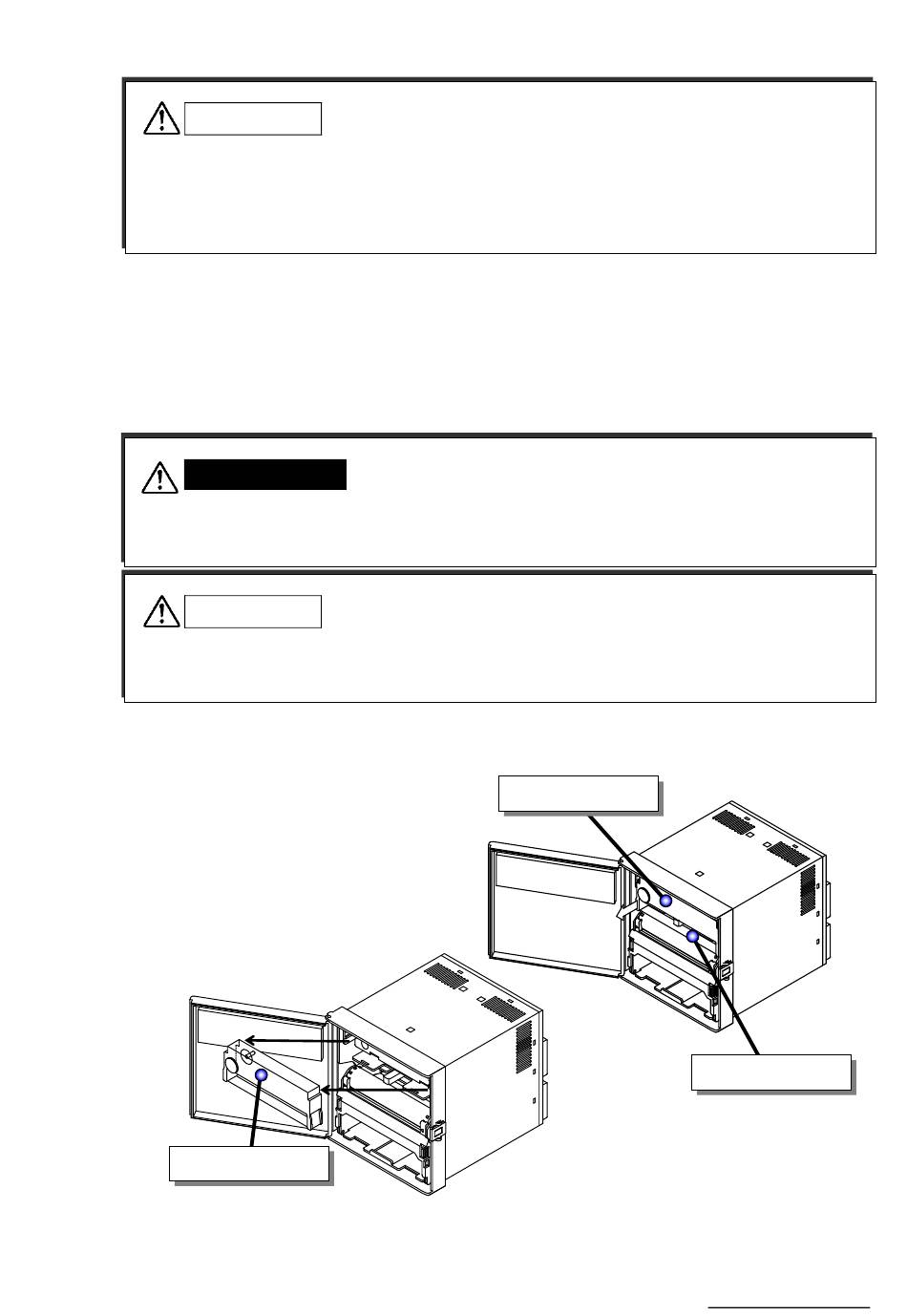

Fig. 5.12 Taking Out the Ribbon Cassette
―29―
Ribbon Cassette
Ribbon Holder
