2.2.2 Operation Keys

The following describes each operation key.
This manual represents the actual operation keys as shown in the figure below.
CH. No.
RUN ALM
Table 2.1 Names of Operation Keys and Their Functions
Key
"RUN" key
RUN
"MENU" key
ESC
MENU
"ESC" key
"PRINT" key
PRINT
"△" key
"FEED" key
FEED
" " key
"ENT" key
ENT
H
L
ESC
RUN MENU
ESC
RUN
MENU

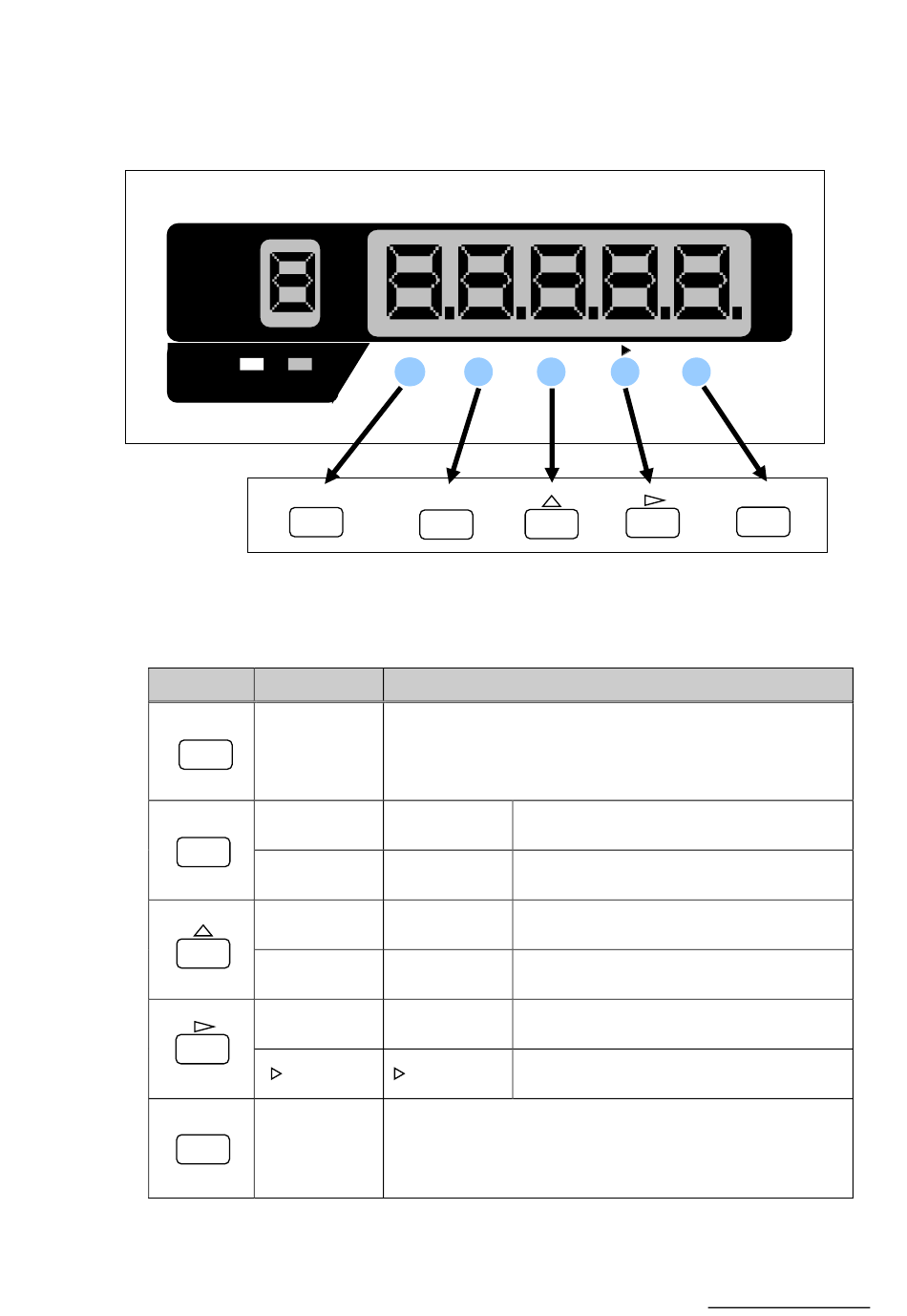

Fig. 2.3 Actual Display and Operation Keys
Name
Starts/stops recording.
To stop, hold down the "RUN" key for 3 seconds or more.
(Gone out the "RUN" lamp.) To start, press the "RUN" key.
(Illuminates the "RUN" lamp.)
MENU function
ESC function
PRINT function
△ function
FEED function
function
Used for registering a setting parameter (numeral or built-in command)
after selecting it, or executing a function. Pressing this key executes the
setting.
