3.2.2 Mounting to the Panel in compliance with the IP65

Prior to mounting the instrument to the panel, attach a packing to the position shown in the figure.
The rest of the procedure is the same.
Mounting of Packing
Packing

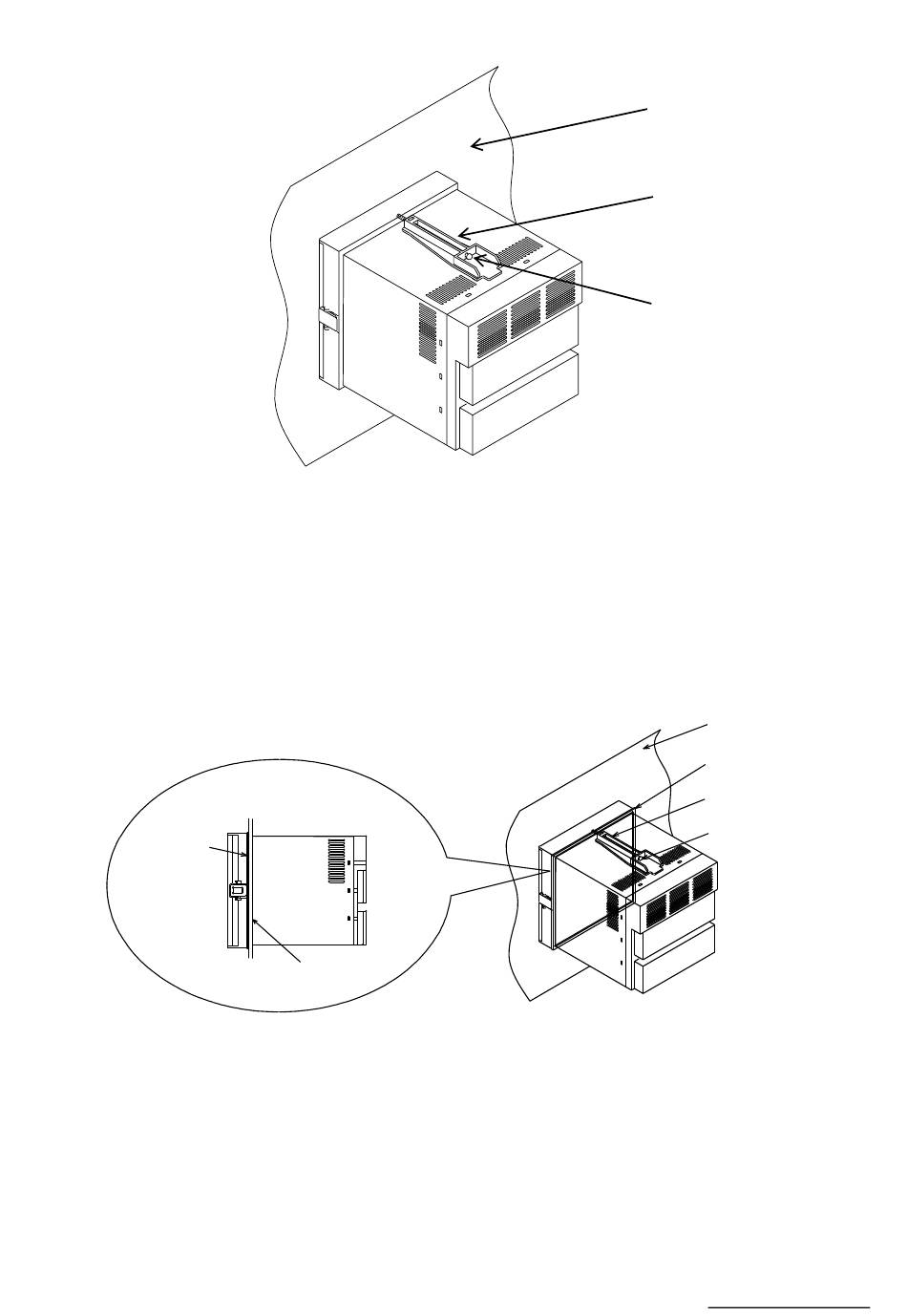

Fig. 3.4 Mounting to the Panel（in compliance with the IP65）
Fig. 3.3 Mounting to the Panel
Panel
―14―
Panel
Mounting bracket
Screw
Panel
Packing
Mounting bracket
Screw
