CAUTION
① As an electric wire for the power source, use a 600 V vinyl insulated wire (AWG20 to 16, IEC60227-3)
or its equivalent or above.
② Attach a ring terminal with insulated sleeve (for M3.5) to the end of the electric wire.
③ Please install a protective ground terminal on the device to which the recorder is installed. It is
necessary to connect
④ Connect a protective grounding (resistance:100Ωor lower, a minimum diameter of a grounding
conductor:1.6mm) to the protective grounding terminal.
⑤ If other instrument shares the protective grounding conductor, there may be an effect caused by
noise coming from the grounding conductor. It is recommended not to share it with other instrument.
⑥ In order to comply with the requirements of safety standard EN61010-1, the recorder shall have one
of the following as a disconnecting device, fitted within easy reach of the operator, and labeled as the
disconnecting device.
a.A circuit breaker which complies with the requirements of IEC60947-1,IEC60947-3
(Rated current 1A).
b.A separable coupler which can be disconnected without the use of a tool.
c.A separable plug, without a locking device, to mate with a socket outlet in the building.
⑦ This product has designed to conform to EN61010-1 installation CategoryⅡ and pollution
degree 2.
⑧ Please use the main power supply by the change within 10% of the rated voltage.
⑨ Transitional current might flow to the main power supply when the power supply is turned on.
4.1.3 Wiring Procedure
CAUTION
The transparent protective cover should surely remove the left and right (both sides) hooks simultaneously.
If it removes by turns, there is a possibility that it may damage.
1) Put your fingers on the left and right (both sides) hooks of the transparent protective cover on the
power source terminal block. Pushing them inside, take out the cover to this side.
2) Connect the power source electric wire refer to Fig. 4.2. Connect the protective grounding to the
terminal. Connect the non-grounding side of the power source to "L" terminal. Connect the
grounding side to the "N" terminal.
3) Put back the transparent protective cover.
4) Make sure that protective grounding is properly provided.
terminal to the protective ground terminal provided on the device.

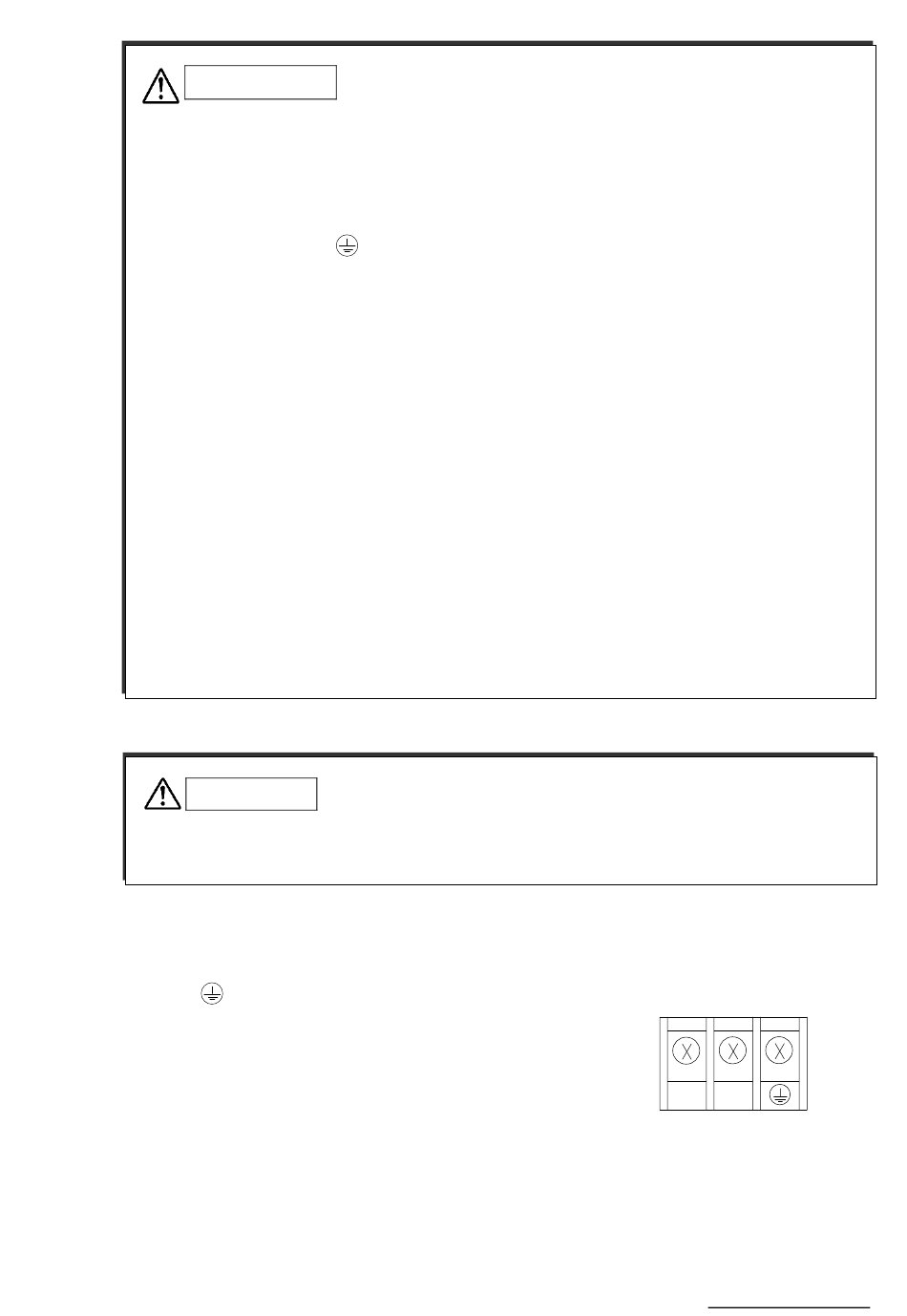

Fig. 4.2 Power source Terminal block
―16―
L
N
Power supply voltage
Rated power voltage range
Working supply voltage range :85-264VAC
Rated power frequency
HXPRM10mnCT001E
:100-240VAC
:50/60Hz
