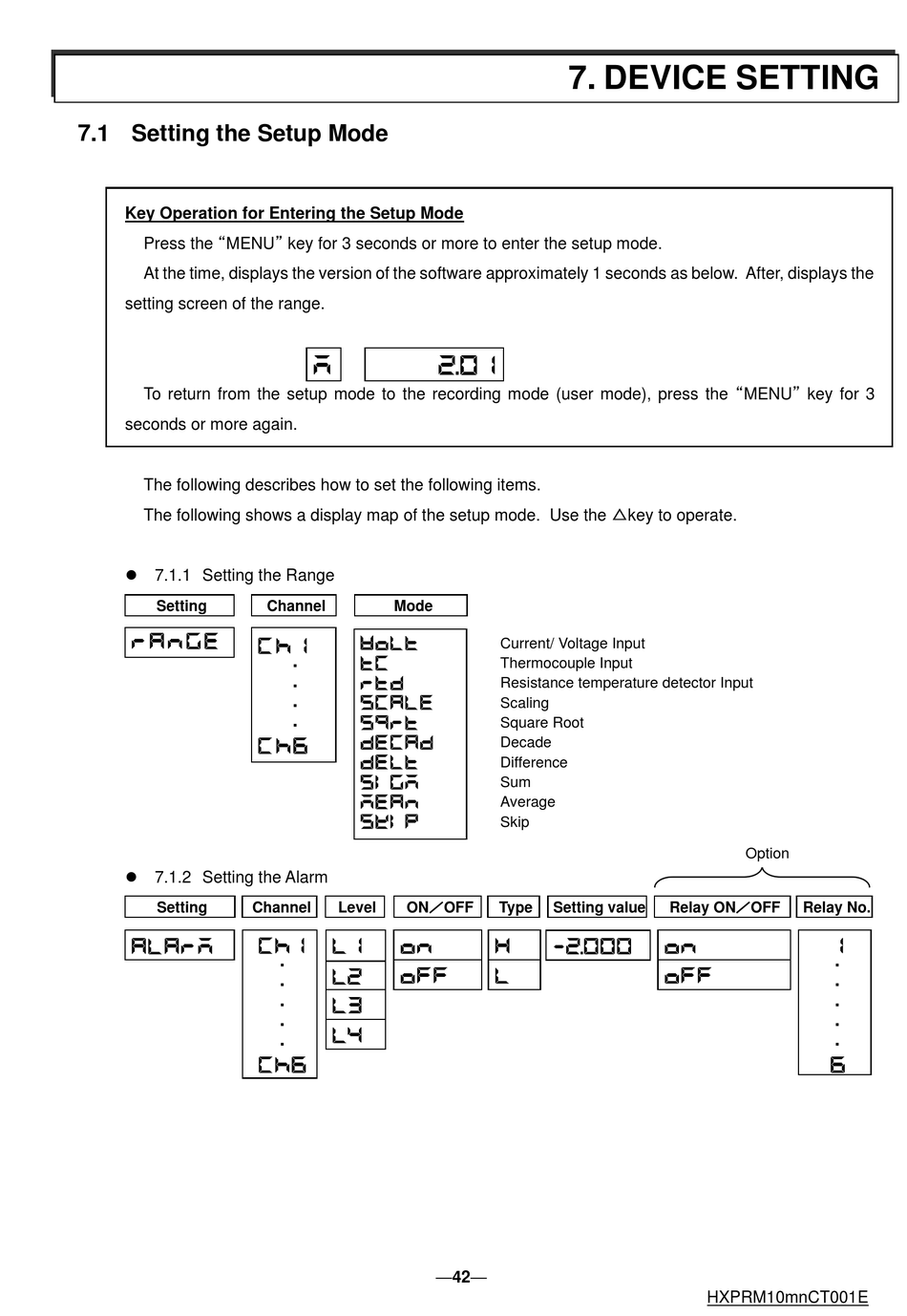

7.1 Setting the Setup Mode

Key Operation for Entering the Setup Mode
Press the "MENU" key for 3 seconds or more to enter the setup mode.
At the time, displays the version of the software approximately 1 seconds as below. After, displays the
setting screen of the range.
To return from the setup mode to the recording mode (user mode), press the "MENU" key for 3
seconds or more again.
The following describes how to set the following items.
The following shows a display map of the setup mode. Use the △key to operate.
⚫
7.1.1 Setting the Range
Setting
⚫
7.1.2 Setting the Alarm
Setting
Channel Mode
・
・
チャネル
・
・
Channel Level ON／OFF
・
・
・
・
・

7. DEVICE SETTING

Current/ Voltage Input
Thermocouple Input
Resistance temperature detector Input
Scaling
Square Root
Decade
Difference
Sum
Average
Skip
Type Setting value
―42―
Option
Relay ON／OFF Relay No.
・
・
・
・
・
HXPRM10mnCT001E
