(Partial Compression/Expansion) - Toho Electronics TRM-10C Instruction Manual

(3)

(Partial Compression/Expansion)

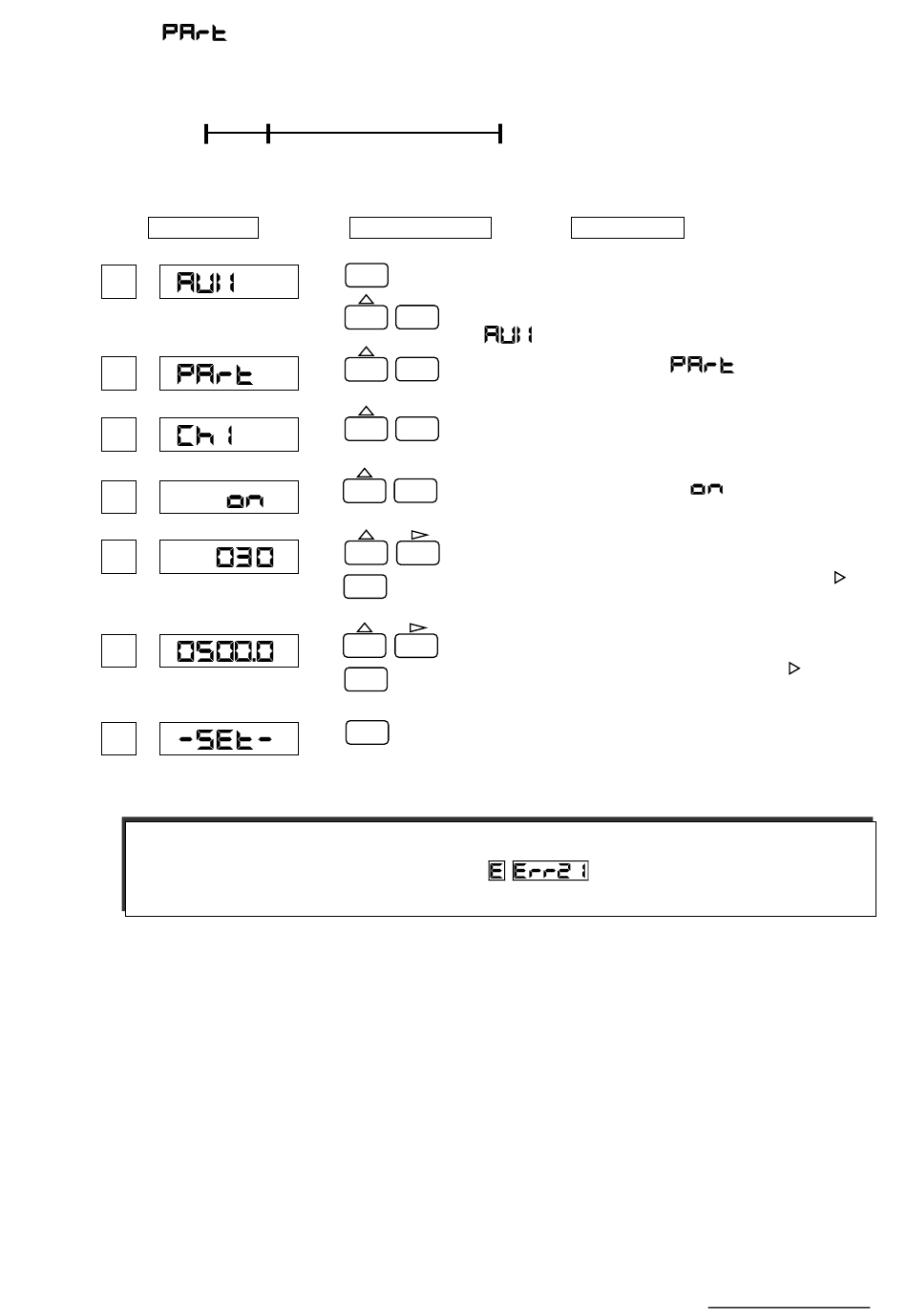

Example) When setting Channel 1 scale of 0 to 1,000.0 ℃ to 500.0 ℃ at a boundary point of 30 %.
0 ℃ 5 0 0 . 0 ℃
(0%) (30%)
Display
[Note]
If you enter an incorrect numeral, displays an error
Press the "ENT" key and re-enter a correct numeral.
1 0 0 0 . 0 ℃
(100%)
Operation keys
ESC
Hold down the "MENU" key for 3 seconds or more
3sec
MENU
to enter the setup mode. Use the △ key to display
ENT
PRINT
"
Use the △ key to select "
ENT
PRINT
"ENT" key.
Use the △ key to select the channel you want to set,
ENT
PRINT
and press the "ENT" key.
Use the △ key to select "
ENT
PRINT
"ENT" key.
Set a boundary point position in percentage (%).
PRINT
FEED
Use the △ key to select a numeral, and use the
ENT
key to shift a digit. Press the "ENT" key.
Set a boundary point position to "0500.0". Use the
PRINT
FEED
△ key to select a numeral, and use the
ENT
shift a digit. Press the "ENT" key.
Press the "ENT" key. Setting is completed.
ENT
To return to the user mode, hold down the "MENU"
key for 3 seconds or more.
