2.2 Display Screen and Operation Keys

2.2.1 Display Screen

The following describes the display screen. Since the channel numbers and data are indicated by a
7-segment LED, alphabets are symbolized to represent them.
For the LED display, see " Symbolized Alphabets for Display" at [Reference] below.
Channel No. Display
Indicates a channel
number in orange.
Status Display
The "RUN" lamp (orange) is illuminated when
recording. The "ALM" lamp (red) is illuminated
when the alarm is being activated.
that the lamp goes out and
is illuminated.
[Reference] Symbolized Alphabets for Display
Display
Alphabet
Display
Alphabet
Alarm Type Display
Indicates an alarm type in red.
"H" is illuminated when the alarm is High.
And "L" is illuminated when the alarm is
Low. Neither of them is illuminated when
there is no alarm.
CH.No
H
L
RUN
RUN ALM
denotes that it

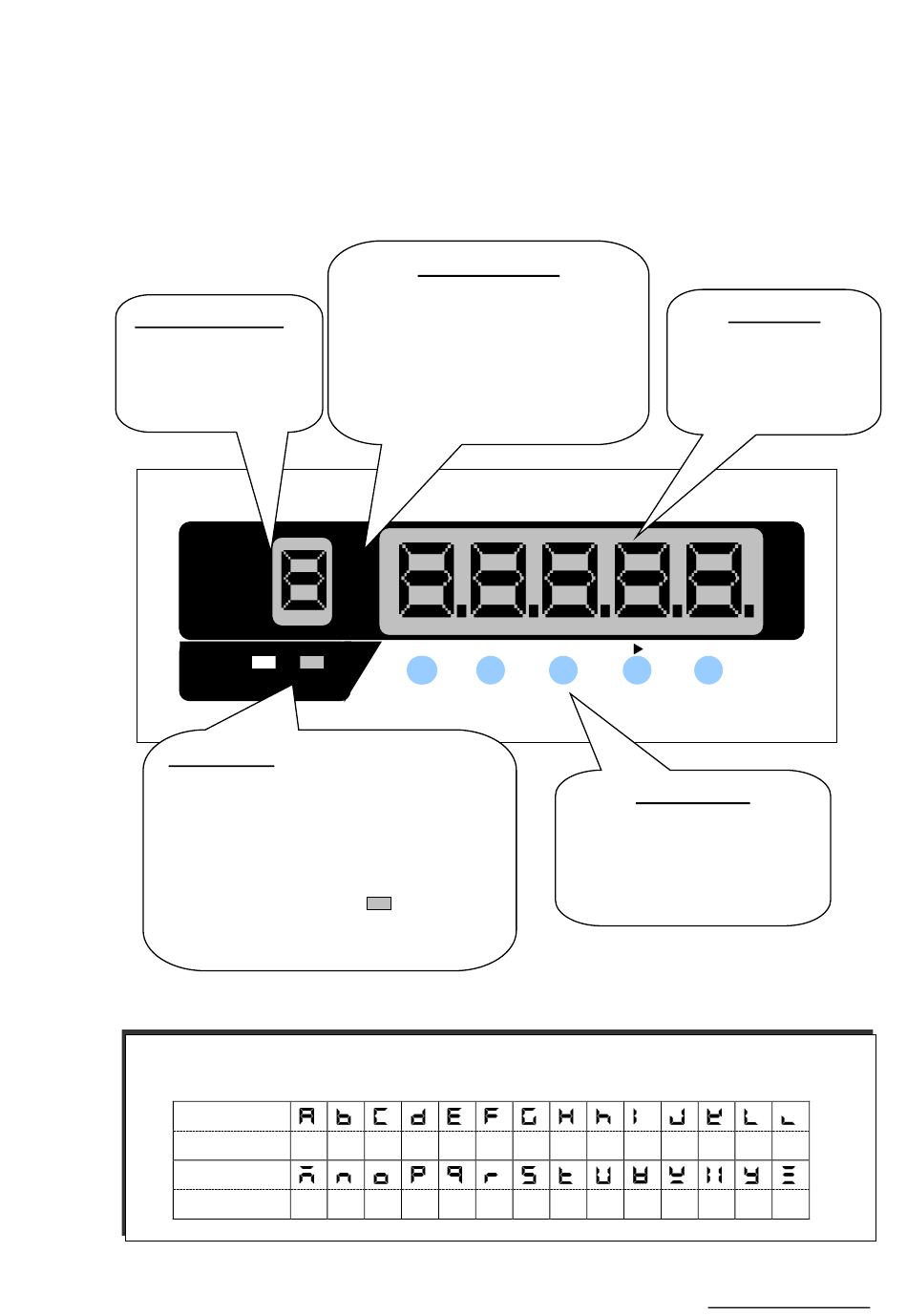

Fig. 2.2 Display
A B C D
M N O P
DATA
▲
ESC
MENU PRINT
Use these keys for setting and
denotes
other operations.
ｈ
E F G H
Q R S T U
―10―
Data Display
Indicates the process
variable, time, setting
screen, etc. in orange.
FEED ENT
Operation Keys
I J K L
V W X Y Z
