10.1.7 When the Chart Paper is not fed at All

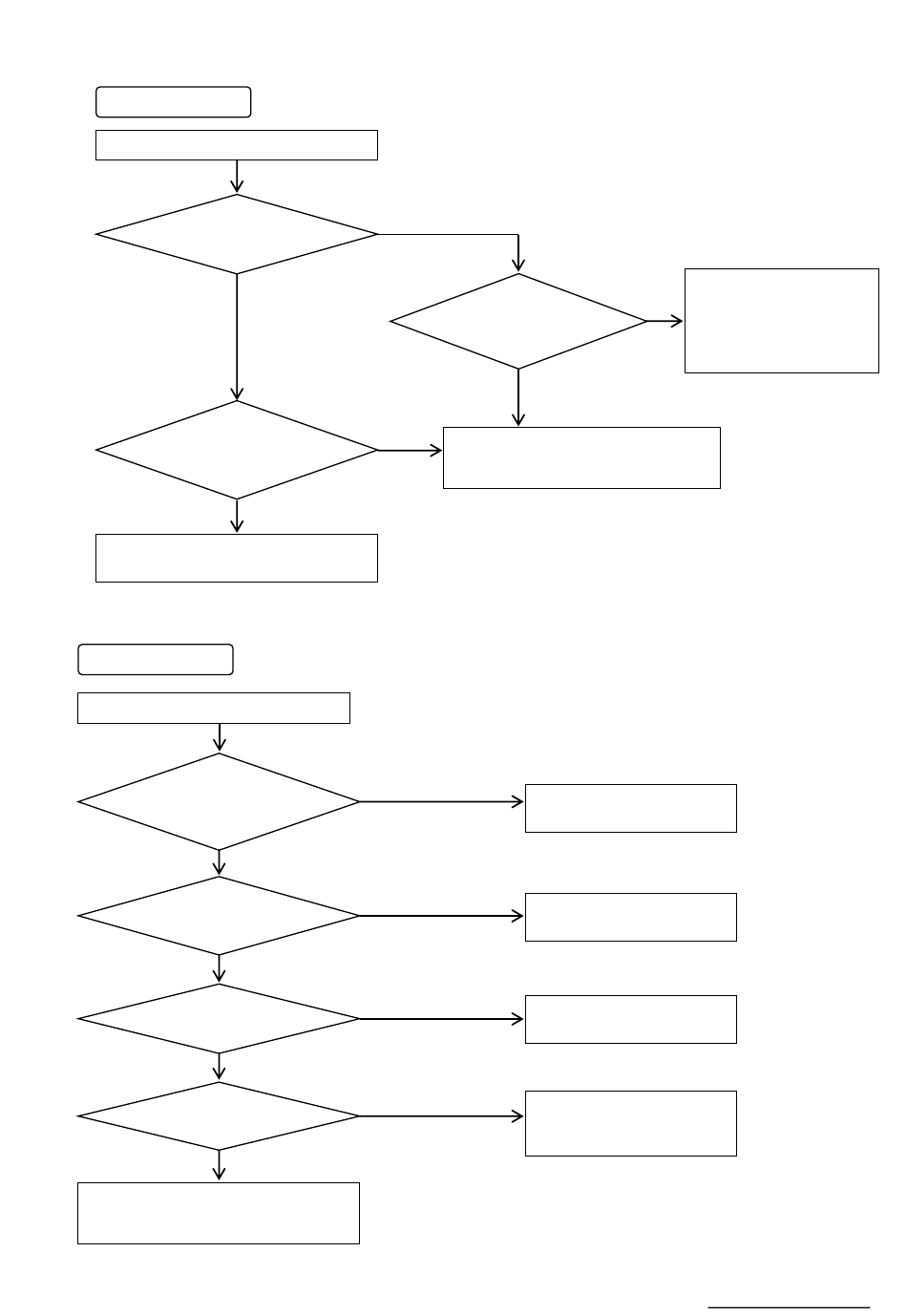

Flow chart 6
No chart paper feed at all
Chart paper fed by
FEED key?
ＮＯ
Chart holder
attached properly?
ＮＯ
Attach properly
(See 5.1 on Page 23)

10.1.8 When the Chart Paper is not fed Properly

Flow chart 7
Chart paper feed improper
Chart guide
attached properly?
ＹＥＳ
Chart cover locked
properly?
ＹＥＳ
Chart paper set
properly?
ＹＥＳ
Used in adequate
environment?
ＹＥＳ
Contact our dealer where you
purchased the instrument, or our
sales representative.
ＹＥＳ
DI contact for
remote operation
OFF?
ＹＥＳ
Contact our dealer where you
purchased the instrument, or our
sales representative.
ＮＯ
ＮＯ
ＮＯ
ＮＯ
―105―
Alter chart paper feed
start/stop setting.
ＹＥＳ
Turn on the DI contact
(See 7.2.9 on Page 79)
ＮＯ
Attach properly
(See 5.1 on Page 23)
Attach properly
(See 5.1 on Page 23)
Attach properly
(See 5.1 on Page 23)
Secure an adequate
environment
(See 11.1.5 on Page 109)
