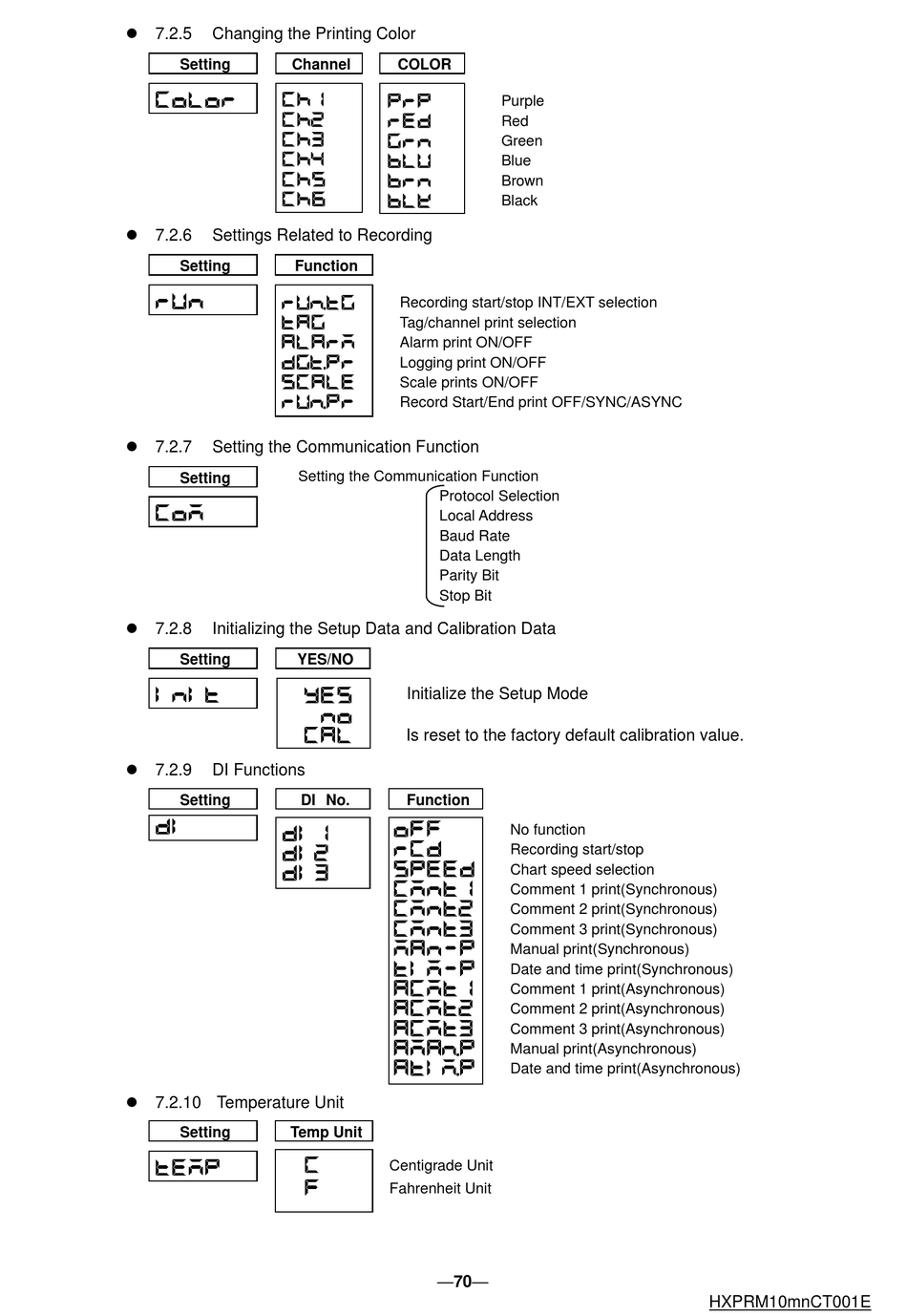

Toho Electronics TRM-10C Instruction Manual page 71

⚫
7.2.5 Changing the Printing Color
Setting Channel
⚫
7.2.6 Settings Related to Recording
Setting Function
⚫
7.2.7 Setting the Communication Function
Setting
⚫
7.2.8 Initializing the Setup Data and Calibration Data
Setting YES/NO
⚫
7.2.9 DI Functions
Setting
⚫
7.2.10 Temperature Unit
Setting Temp Unit
COLOR
Recording start/stop INT/EXT selection
Tag/channel print selection
Alarm print ON/OFF
Logging print ON/OFF
Scale prints ON/OFF
Record Start/End print OFF/SYNC/ASYNC
Setting the Communication Function
Protocol Selection
Local Address
Baud Rate
Data Length
Parity Bit
Stop Bit
Initialize the Setup Mode
Is reset to the factory default calibration value.
DI No. Function
Centigrade Unit
Fahrenheit Unit
―70―
Purple
Red
Green
Blue
Brown
Black
No function
Recording start/stop
Chart speed selection
Comment 1 print(Synchronous)
Comment 2 print(Synchronous)
Comment 3 print(Synchronous)
Manual print(Synchronous)
Date and time print(Synchronous)
Comment 1 print(Asynchronous)
Comment 2 print(Asynchronous)
Comment 3 print(Asynchronous)
Manual print(Asynchronous)
Date and time print(Asynchronous)
HXPRM10mnCT001E
