10.1 Troubleshooting

10.1.1 Trouble Items

Trouble
Dose not work at all
Big error
Recording
error
Chart paper
feed error

10.1.2 When the Recorder Dose not Work at All

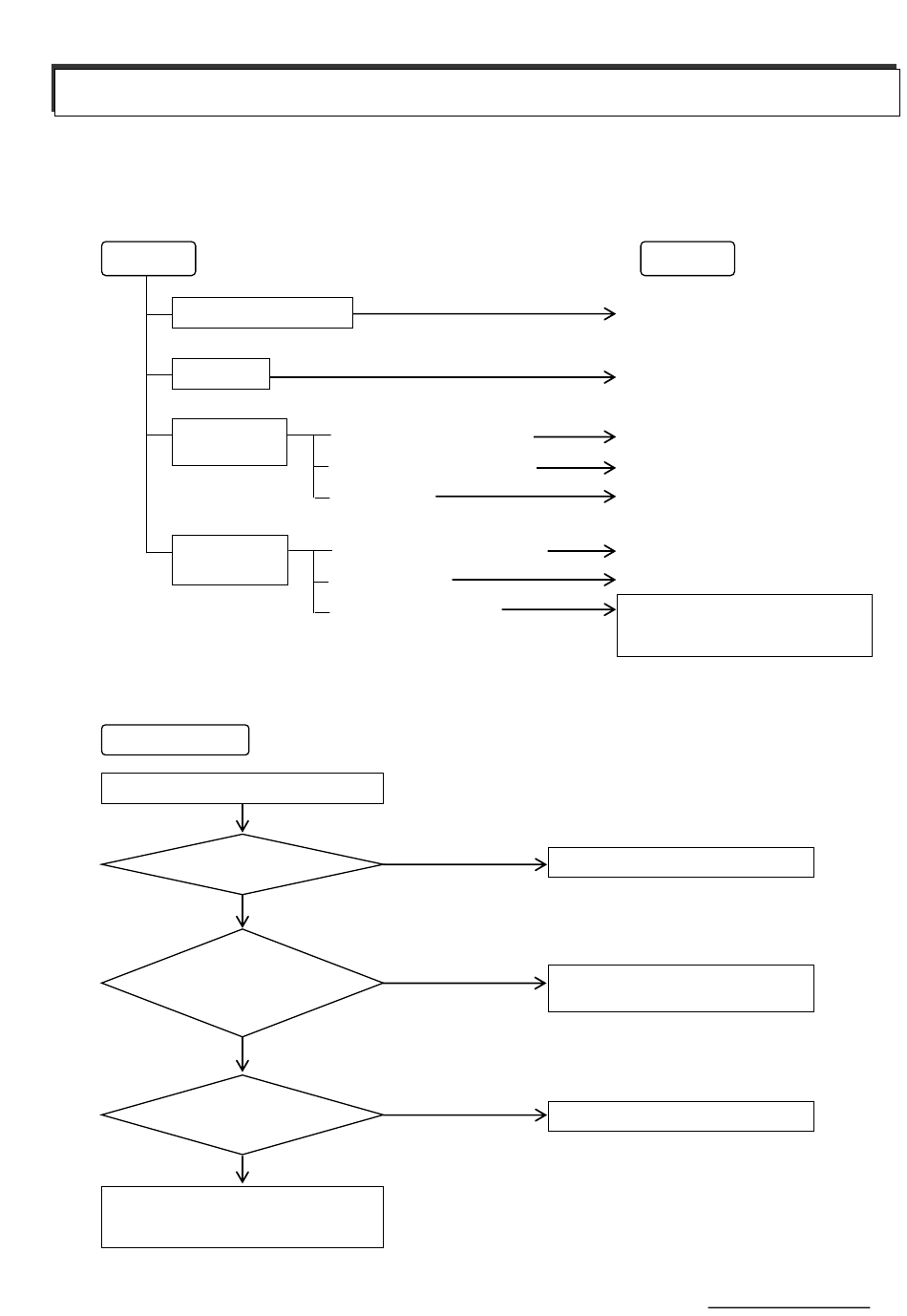

Flow chart 1
Dose not work at all
Power turned on?
ＹＥＳ
Power terminal
connected
properly?
ＹＥＳ
Power supplied
properly?
ＹＥＳ
Contact our dealer where you
purchased the instrument, or our
sales representative.
10.
Trend recording deflected
Nothing is recorded at all
Faint printing
Chart paper is not fed at all
Improper feed
Inaccurate feed rate
ＮＯ
ＮＯ
ＮＯ
―102―
TROUBLESHOOTING
Remedy
Flow chart 1 (Page 102)
Flow chart 2 (Page 103)
Flow chart 3 (Page 103)
Flow chart 4 (Page 104)
Flow chart 5 (Page 104)
Flow chart 6 (Page 105)
Flow chart 7 (Page 105)
Contact our dealer where you
purchased the instrument, or
our sales representative.
Turn on the power
Connect properly
(See 4.1 on Page 15)
Supply properly
85 to 264VAC
45 to 65Hz
