Toho Electronics TRM-10C Instruction Manual page 27

(7) Aligning the Chart Paper with the Sprocket Drum
Align the holes in the chart paper with the sprocket drum teeth. Set the chart paper along the
sprocket drum. Put the first ply of the chart paper into the chart receiver.
Chart Paper
Chart Receiver

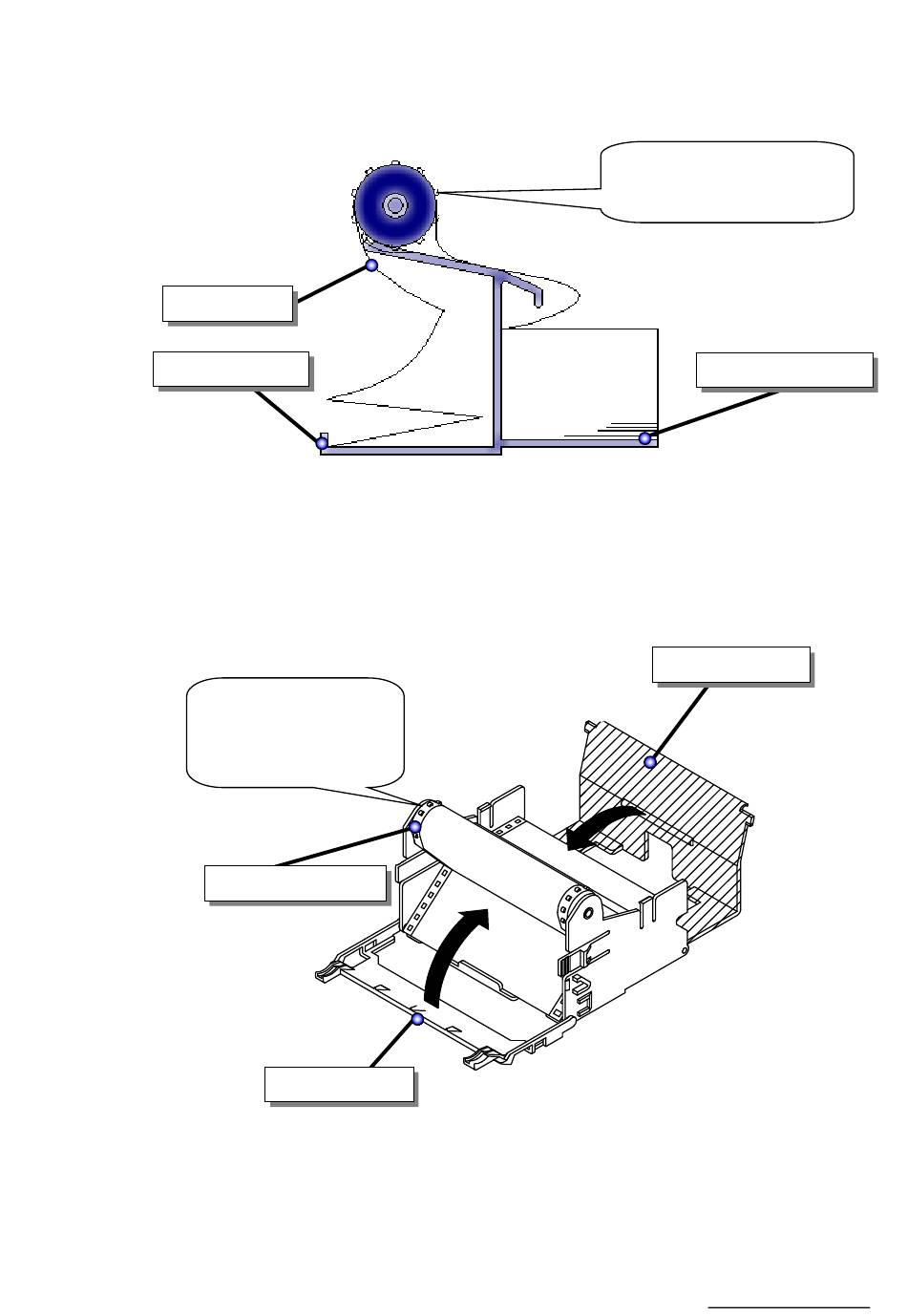

Fig. 5.7 Aligning the Chart Paper with Sprocket Drum (Chart Holder Sectional View)
(8) Closing the Chart Cover and Chart Guide
Close the chart cover and the chart guide in the arrow directions.
Align the holes in the
paper properly with the
sprocket drum teeth.
Sprocket Drum Teeth
Chart Guide
Fig. 5.8 Closing the Chart Cover and Chart Guide
Chart Paper
―26―
Make the left and right holes
parallel with each other.
Storage Chamber
Chart Cover
HXPRM10mnCT001E
