5.3 Setting the Ribbon Cassette

CAUTION
If the chart holder is taken out with recording operation being activated, the ink ribbon may be
damaged. To replace the ribbon cassette, be sure to press the "RUN" key to stop recording.
Be sure to move up the cartridge pen. Otherwise, it will be damaged.
(1) Pressing the "RUN" key for 3 seconds or more
Stop recording. With the power turned on, press the "RUN" key for 3 seconds or more.
Once recording stops, the RUN lamp goes off. (See Fig. 5.1 on Page 25)
The pen and printer automatically move, discontinuing paper feed. The No. 1 pen (red) records the
left side (approx. 15 %) and No. 2 pen (green) records the right side (approx. 85 %), respectively.
(See Fig. 5.2 on Page 25)
(2) Opening the Door
Push the door hook to unlock the door. Pull the door to this side to open it. (See Fig.5.3 on Page 26)
WARNING
Because you may be hurt when you put fingers at the time of the opening and closing of the door,
please be careful.
CAUTION
Maximum angle of the door in opened-state is 135 degree. Do not further open the door otherwise
hinge will be broken.
(3) Moving up the Pen
Push up the pen-up lever to move a pen tip away from the chart paper. (Move up the pen; see
Fig.5.4 on Page 26)
(4) Taking out the Chart Holder
Put your fingers onto the levers at both sides of the chart holder and pull it out to this side. (See
Fig.5.5 on Page 27) The guide shaft, printer, and the main shaft are laid out as shown in the figure
below. (The main shaft is invisible if the ribbon cassette has been set.)
Main Shaft

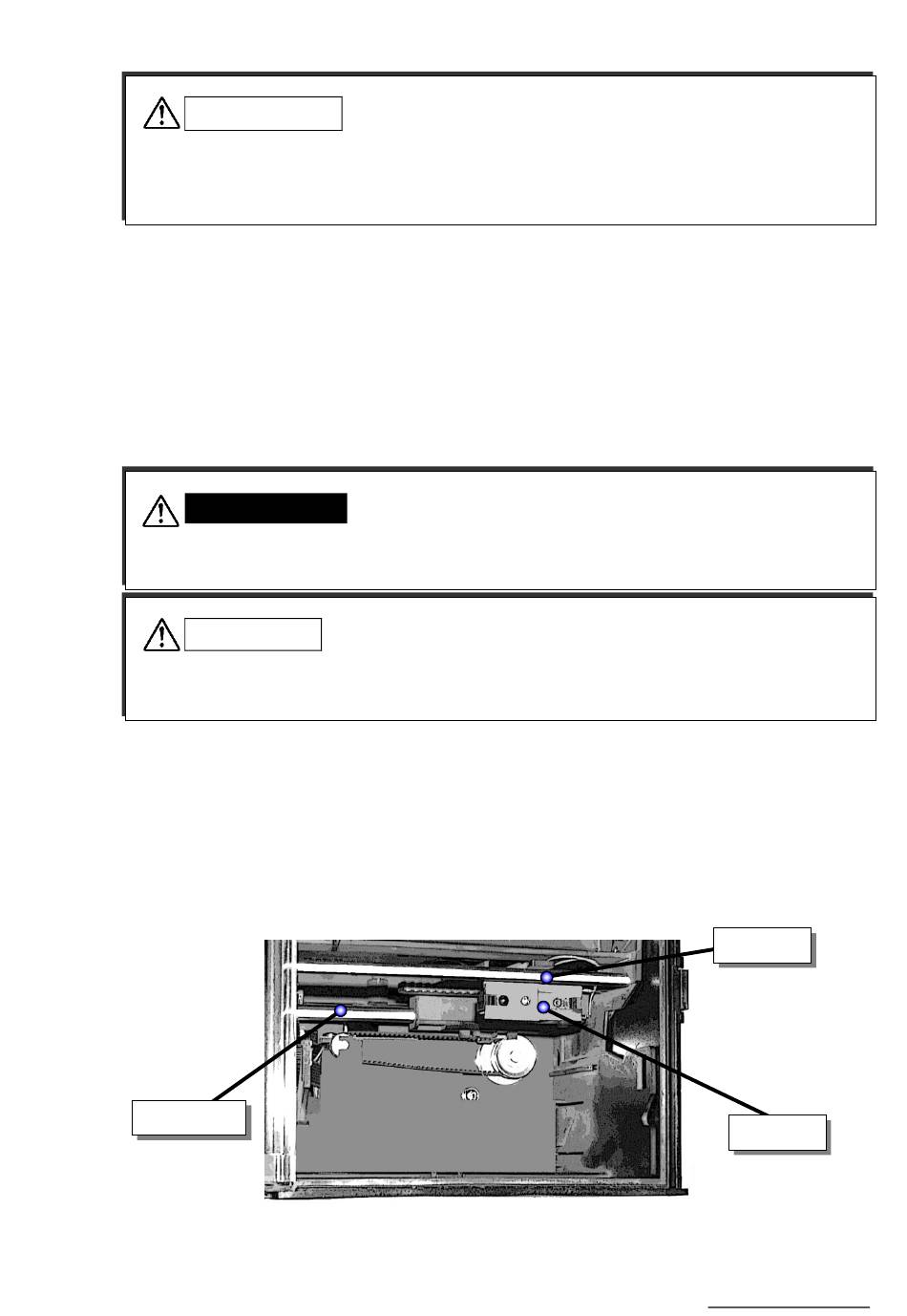

Fig. 5.17 Layout of Guide Shaft, Printer and Main Shaft
―34―
Guide
Shaft
Printer
