PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
5 Double-click the PROFIBUS M

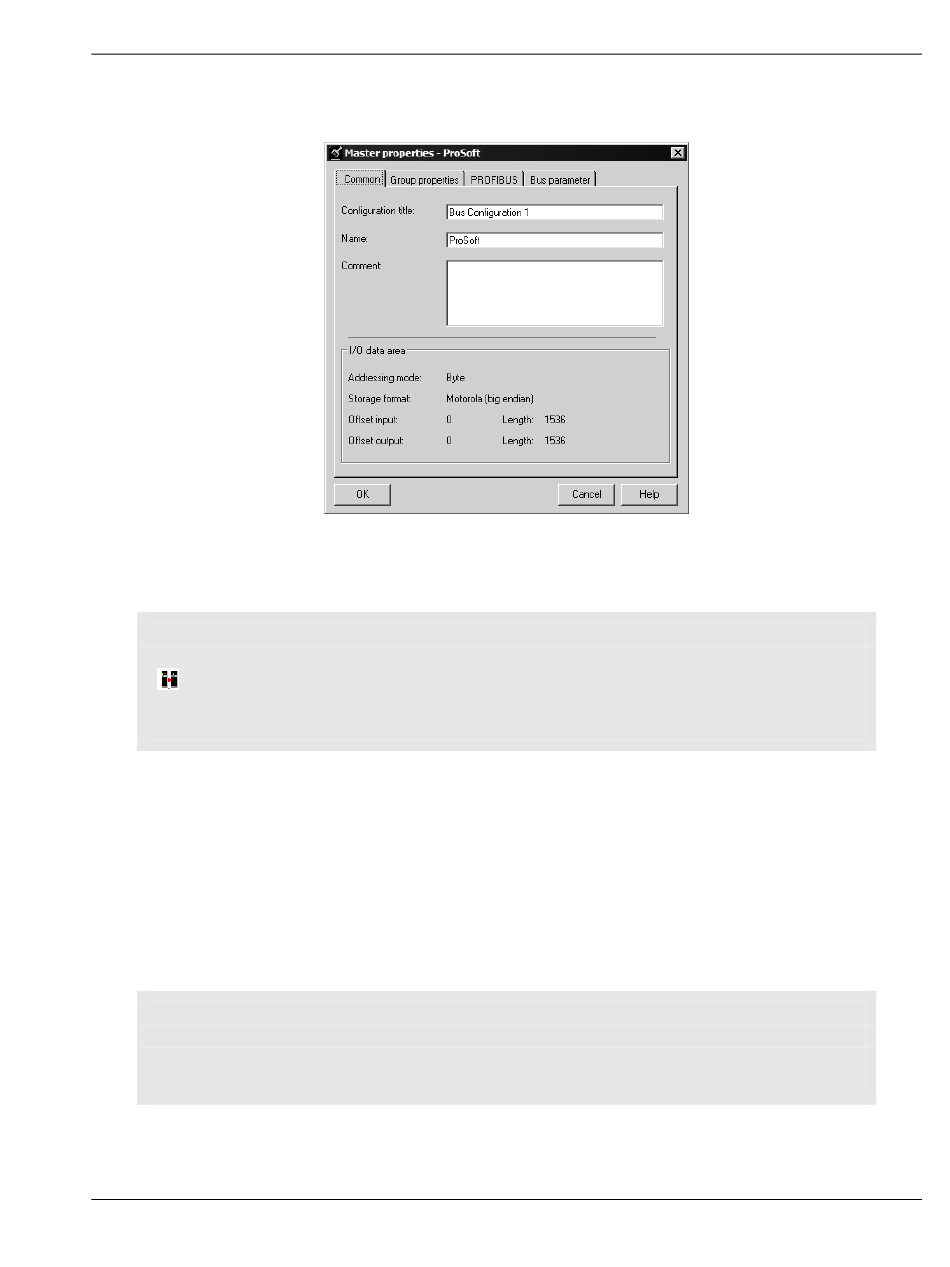

This action opens the Master Properties dialog box.
6 On the C
OMMON
the module name from step 4 in this procedure.
Note: The PROFIBUS tab contains the address setting and advanced configuration settings for the
Master. The default settings on this tab work best in most applications.
HSBY Note: The correct profile setting for HSBY Master is DP; however, the Hot Standby
check box will be checked. The minimum baud for Hot Standby module to switch over within 300
ms with an average processor scan time of 100ms, is 1500Kbits/second.
7 Click OK to save your changes and return to the Bus Configuration window.

2.3.1 Installing the GSD Files

The GSD configuration files contain information on PROFIBUS slaves that you
can configure as part of your PROFIBUS network. In order for this configuration
information to be available in ProSoft Configuration Builder, you must install the
GSD files.
Tip: GSD configuration files for popular Schneider Electric and ProSoft Technology modules are
included with the installation. If you have other GSD files for your PROFIBUS slaves, copy them
into C:\Documents and Settings\All Users\Application Data\ProSoft\GSD (Windows XP / 2000) or
C:\My Documents\ (Windows 98), and ProSoft Configuration Builder will load them automatically.
ProSoft Technology, Inc.
August 12, 2014
icon in the Bus Configuration window.
ASTER
tab, name your PROFIBUS drop. The name should match
Configuring the Module
User Manual
Page 35 of 306
