Configuring the Processor with Unity Pro
User Manual

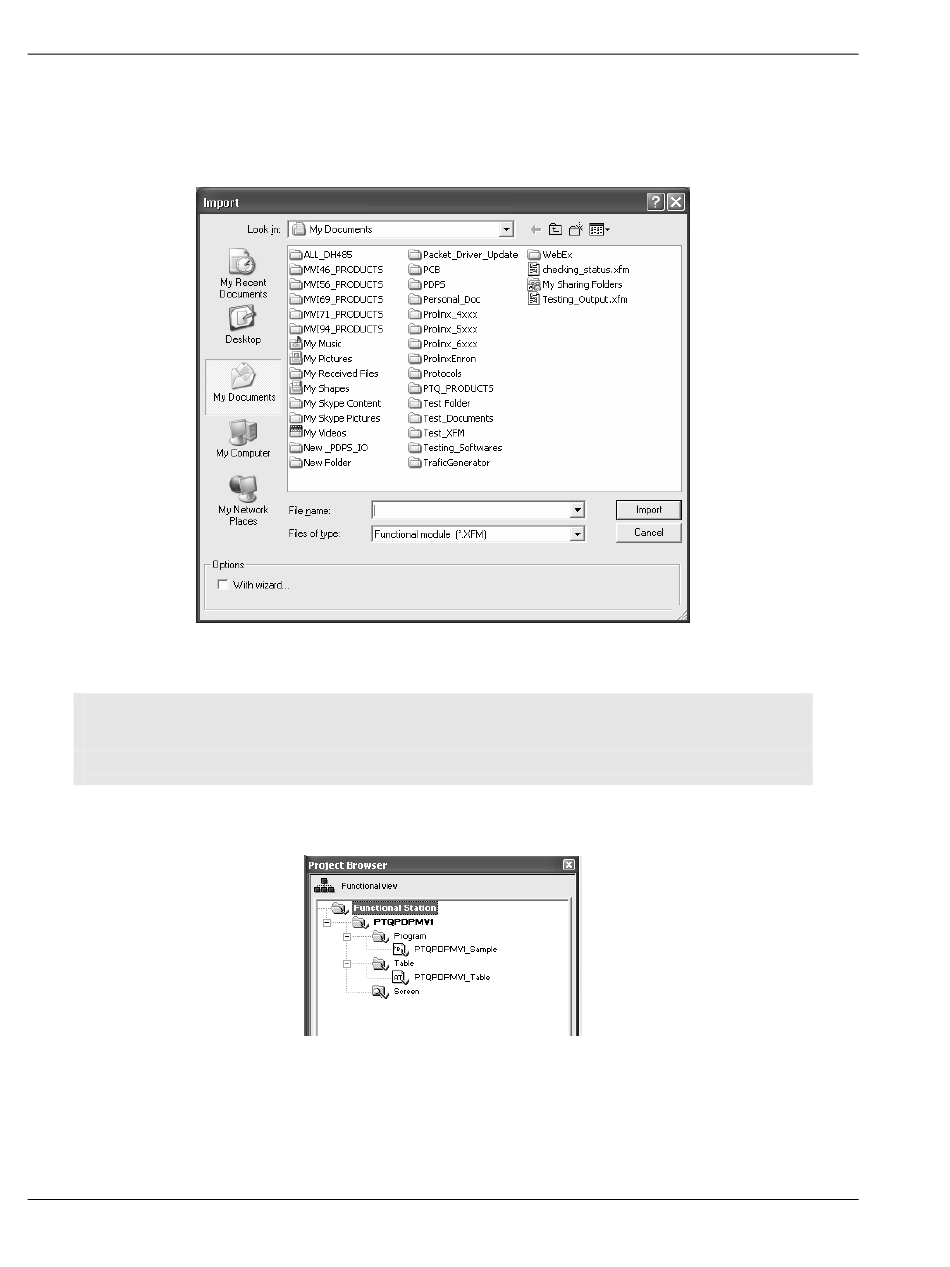

In the Import dialog box, choose F
Type dropdown list, and then select the XFM file to import. The XFM file
name matches the module name you defined in PCB and exported in step 3
of Back up the Project (page 54).
Click I
MPORT
Note: Use the XFM file created by PCB. The XFM file created by PCB is preferred, because it
contains the I/O map representing your PROFIBUS network and contains the same variable
names. This file will be created only if the Mailbox messaging parameter is set to YES.
Notice that the Project Browser is now populated with the Functional Module.
