Diagnostics and Troubleshooting
User Manual
3 Press [?] to display the Main menu.
If there is no response from the module
Verify that the cable between the module and your computer's serial or
1
Ethernet port is connected properly. A regular serial cable will not work.
2 On computers with more than one serial port, verify that your communication
program is connected to the same port that is connected to the module.
If you are still not able to establish a connection, you can contact ProSoft
Technology for assistance.
8.6.2 Navigation
All of the submenus for this module contain commands to redisplay the menu or
return to the previous menu. You can always return from a submenu to the next
higher menu by pressing [M] on your keyboard.

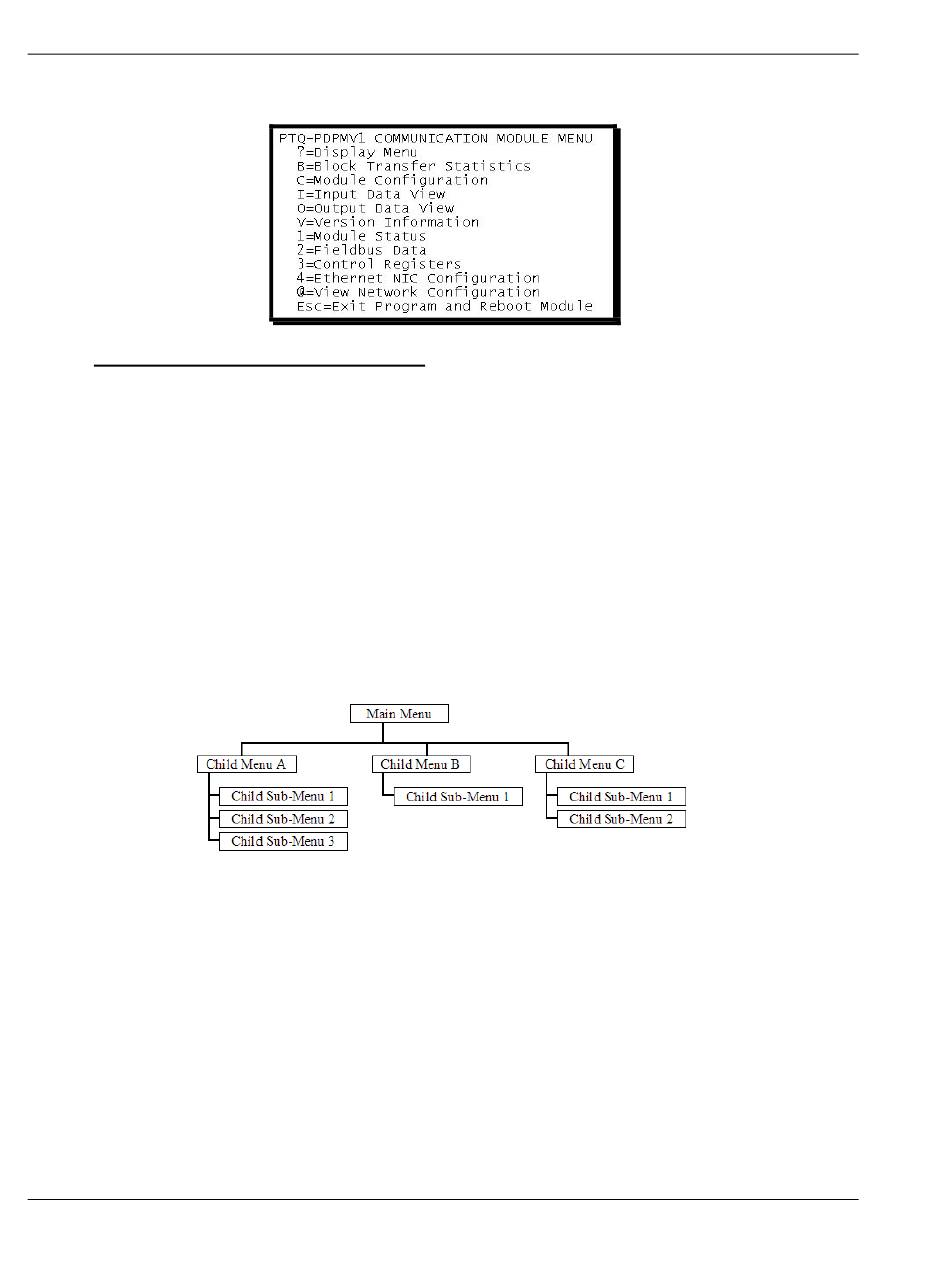

The organization of the menu structure is represented in simplified form in the
following illustration:
The remainder of this section shows the menus available for this module, and
briefly discusses the commands available to you.
