Diagnostics and Troubleshooting
User Manual

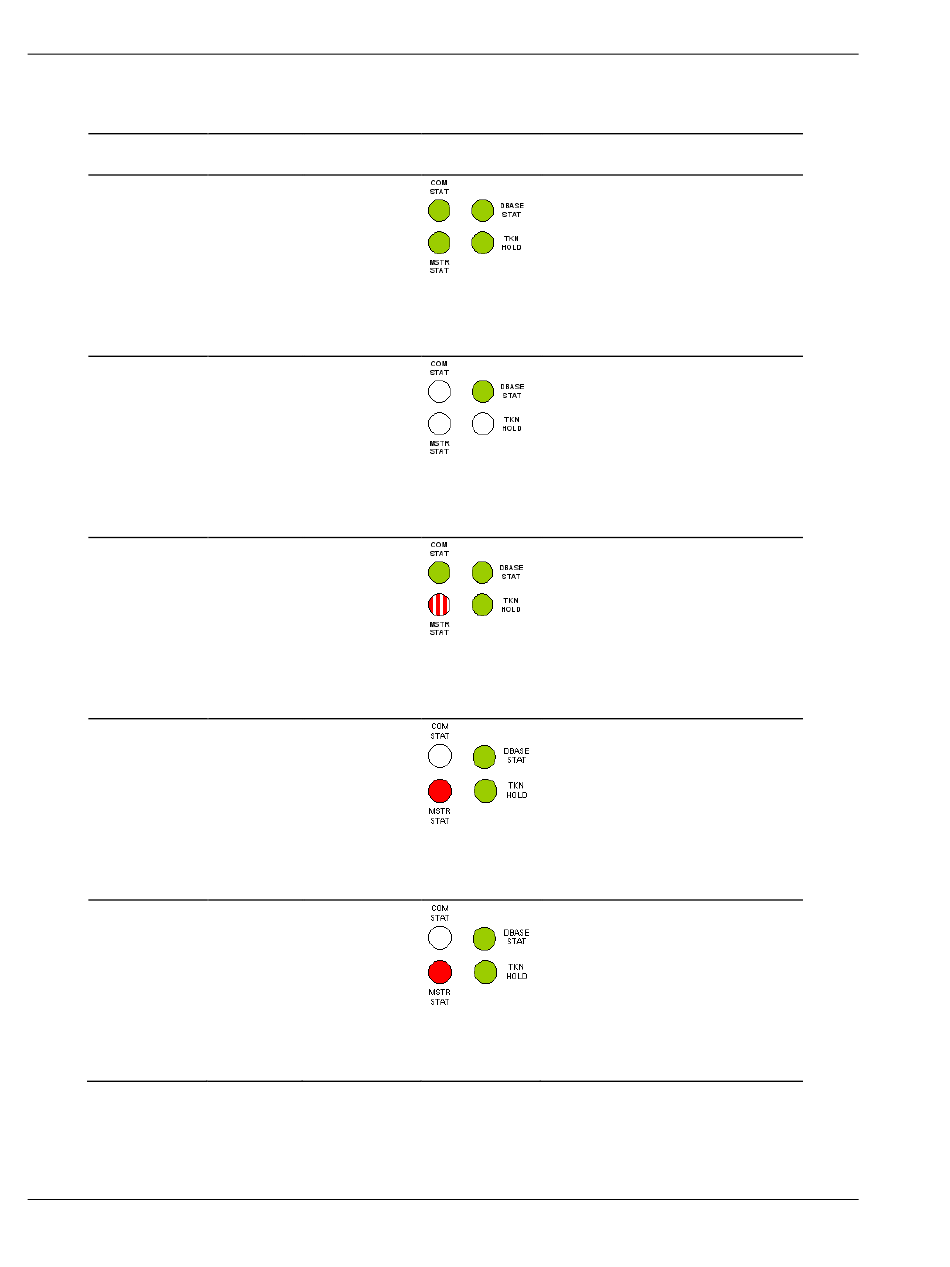

The following table shows some of the possible status indicators:
Normal Operation RUN (ON)
PTQ module not
communicating
with processor
PTQ module
rebooted for
DEBUG only
(HSBY)
HSBY: After the
hot swap of the
module, the PTQ
module is
correctly SET as
the remote
(passive) Master.
PTQ PROFIBUS
Master is stopped
CPU is stopped
Page 226 of 306
Processor PTQ Module
Status Status
ACTIVE (ON)
RUN (ON) or ACTIVE (OFF)
STOP
RUN (ON) ACTIVE (ON)
RUN or STOP ACTIVE
STOP ACTIVE
PROFIBUS DP Master Network Interface Module for Quantum
PROFIBUS PROFIBUS Master Status LED
Master Status Description
COM STAT (GREEN/Solid or Flash):
Master is communicating with slaves (Solid
GREEN) or at least one (Blinking).
DBASE STAT (GREEN):
PROFIBUS has been configured.
TKN HOLD (GREEN):
PTQ is holding the PROFIBUS token.
MSTR STAT (GREEN):
Master is in OPERATE mode.
COM STAT (OFF):
Master is not communicating with slaves.
DBASE STAT (GREEN):
PROFIBUS has been configured.
TKN HOLD (OFF):
Master does not have the token and is
inactive.
MSTR STAT (OFF):
Master is inactive.
COM STAT (GREEN/Solid or Flash):
Master is communicating with slaves (Solid
GREEN) or at least one (Blinking).
DBASE STAT (GREEN):
PROFIBUS has been configured.
TKN HOLD (GREEN):
PTQ is holding the PROFIBUS token.
MSTR STAT (RED Blinking):
Master is in remote (passive) Master mode.
COM STAT (OFF):
Master is not communicating with
configured slaves.
DBASE STAT (GREEN):
PROFIBUS has been configured.
TKN HOLD (GREEN):
PTQ is holding the PROFIBUS token.
MSTR STAT (RED):
Master is in STOP mode.
COM STAT (OFF):
Master is not communicating with
configured slaves.
DBASE STAT (GREEN):
PROFIBUS has been configured.
TKN HOLD (GREEN):
PTQ is holding the PROFIBUS token.
MSTR STAT (RED):
Master is in STOP mode.
