Step 2: Converting The Function Blocks - ProSoft Technology ProTalk PTQ-PDPMV1 User Manual

PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
4.5

Step 2: Converting the Function Blocks

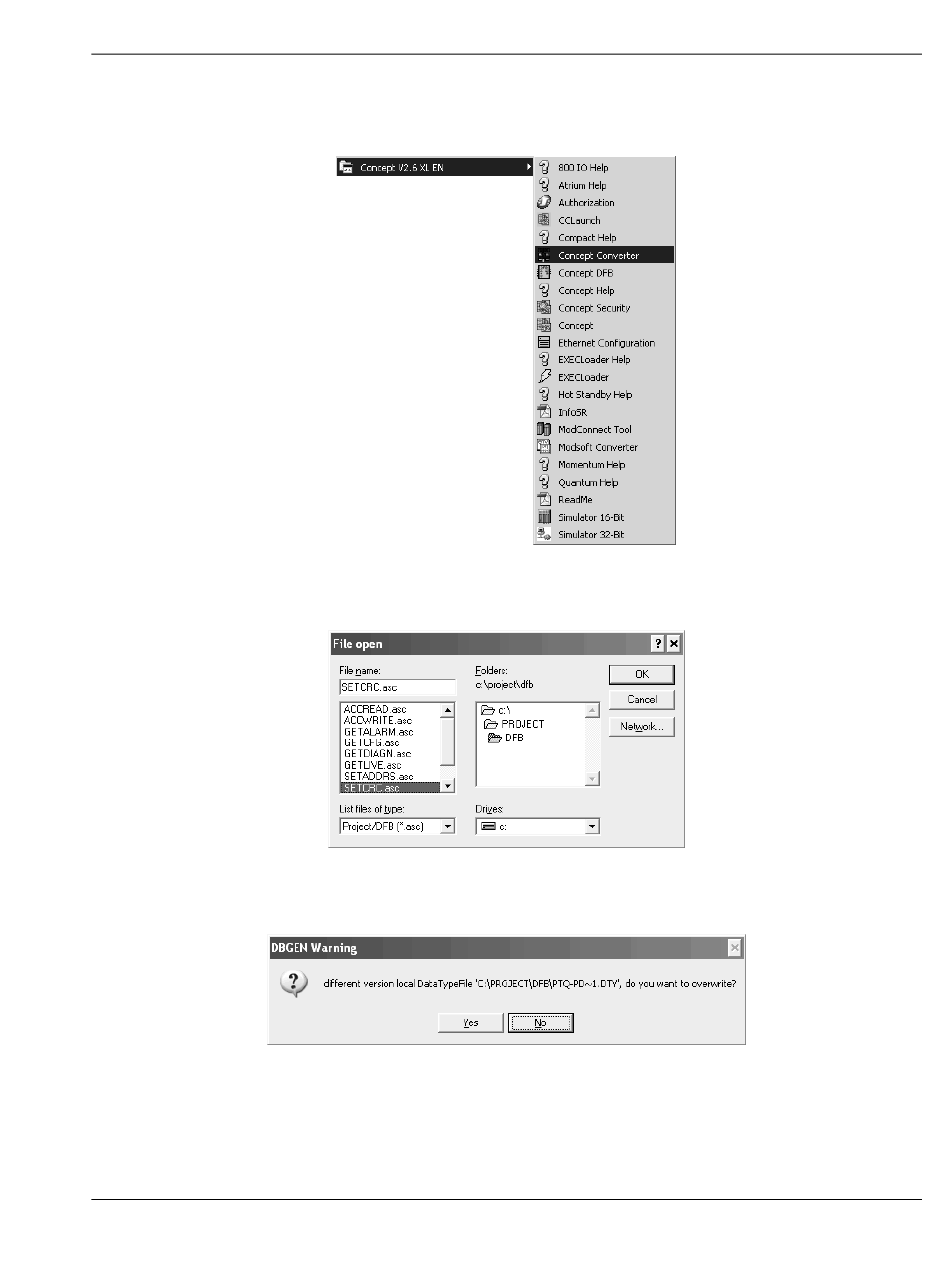

1 Run the Concept Converter tool as follows:
2 Click F
ILE
folder.
After you click OK, the following warning message will be displayed. Click
N .
O
ProSoft Technology, Inc.
August 12, 2014
-I . Browse the SETCRC.ASC file at the C:\project\DFB
MPORT
Configuring the Processor with Concept 2.6
Page 109 of 306
User Manual
