Configuring the Module
User Manual

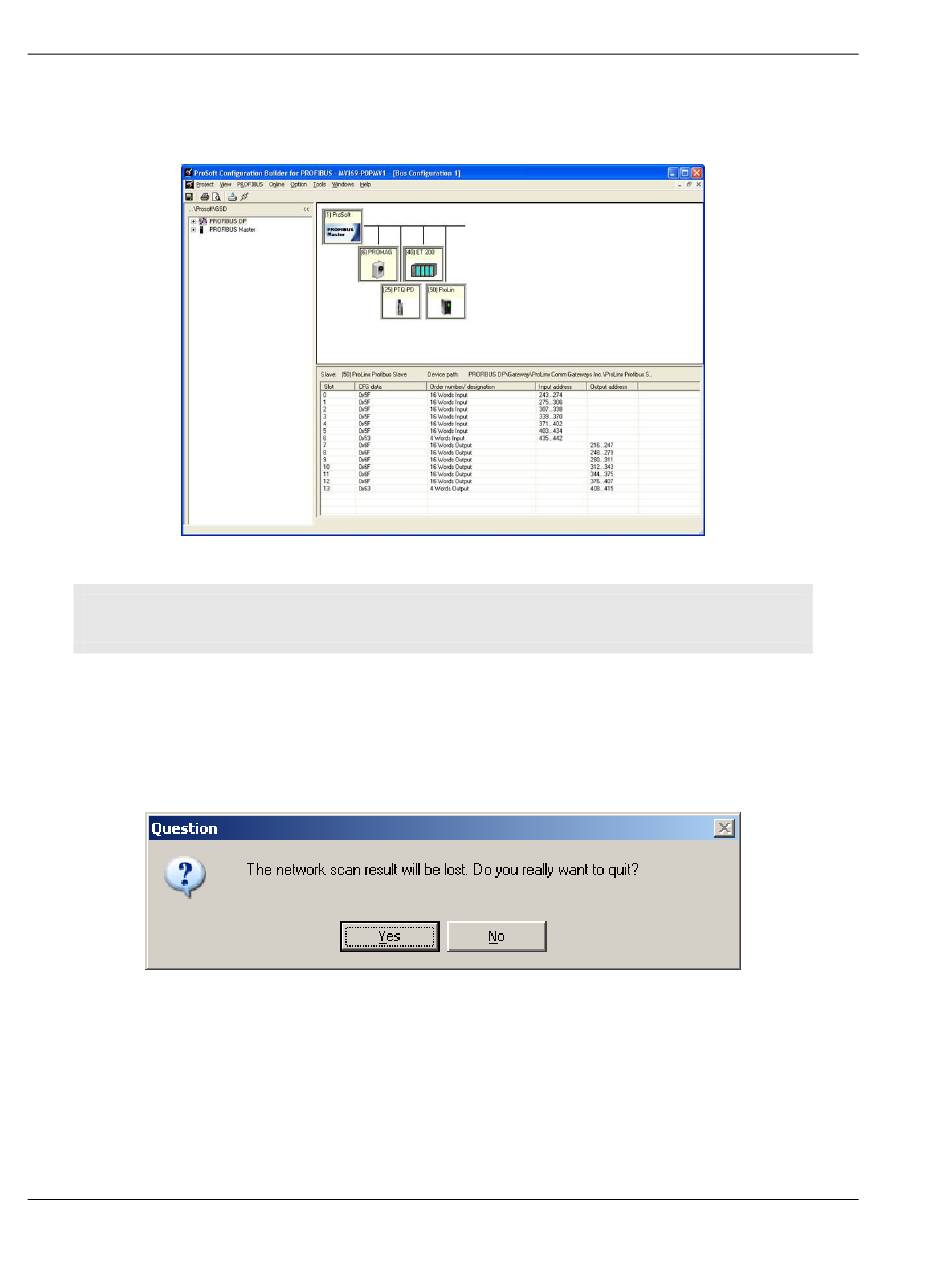

If accepted, the network scan window will close and the PROFIBUS Master
Configuration window will be populated with the slaves that were found during
the network scan.
Note: Slave: is equal to the Ident number and that the Device path: and Order number/designation
fields are left empty.
Cancel and Help
If the C
ANCEL
If the H button is pressed the online help will start.
ELP
Page 48 of 306
button is pressed a message similar to the one below will appear.
