ProSoft Technology ProTalk PTQ-PDPMV1 User Manual page 227

PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
CPU is running
ProSoft Technology, Inc.
August 12, 2014
Processor PTQ Module
Status Status
RUN ACTIVE

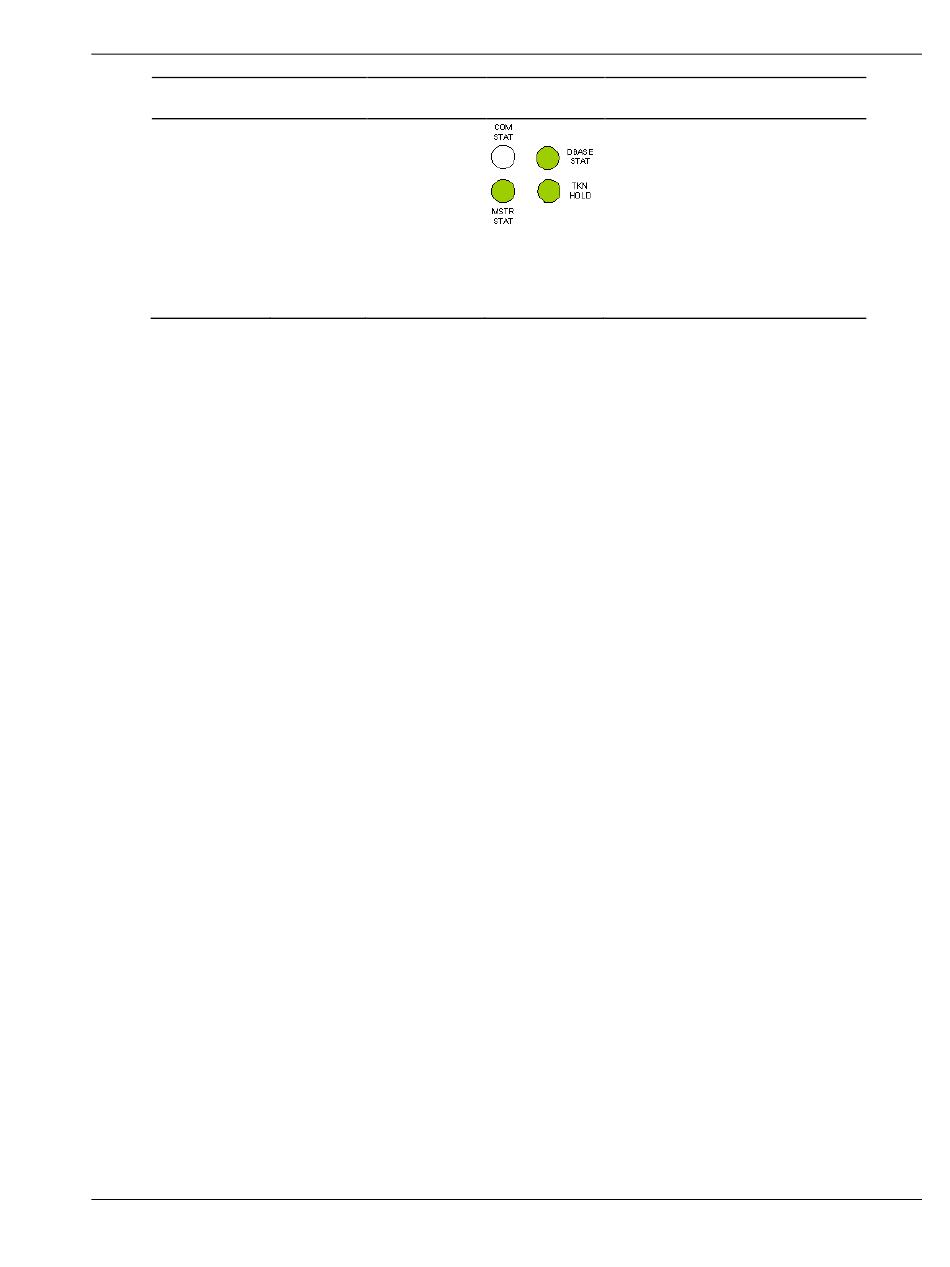

PROFIBUS PROFIBUS Master Status LED
Master Status Description
COM STAT (OFF):
Master is operating, but there is no
communication with slaves, or PROFIBUS
cable is disconnected.
DBASE STAT (GREEN):
PROFIBUS has been configured.
TKN HOLD (GREEN):
PTQ is holding the PROFIBUS token.
MSTR STAT (GREEN):
Master is in OPERATE mode.
Diagnostics and Troubleshooting
User Manual
Page 227 of 306
