PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
4.6

Step 3: Setting up the Concept Project

1 Start Concept Version 2.6.
2 Open the F
3 Open the F

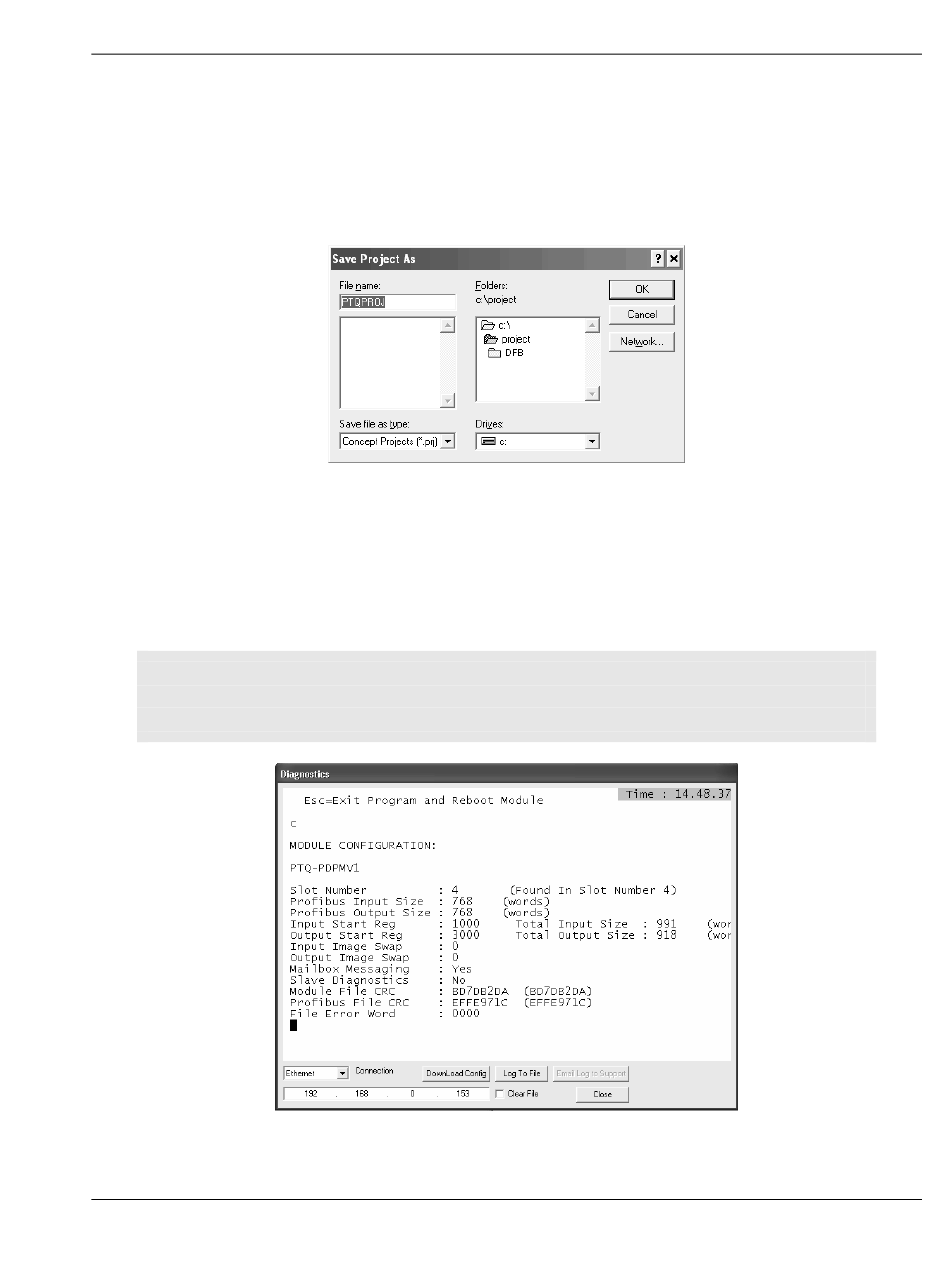

4 Navigate to C:\project, and enter PTQPROJ as the file name. Click OK to
save the file.
5 Configure the general settings for your application. Select the correct
Quantum processor type (PLC Selection) and other modules that will be
located in the Quantum rack.
6 In PLC Configuration, double-click PLC M
number of input registers and output registers are sufficient for your
application.
Note: You can view the number of input and output words required for your PTQ-PDPMV1
application in the Diagnostics window in ProSoft Configuration Builder. From the module's
configuration/debug menu, press [B] to open the Block Transfer Statistics menu.
ProSoft Technology, Inc.
August 12, 2014
menu, and then choose N
ILE
menu again, and then click S
ILE
Configuring the Processor with Concept 2.6
P .
EW ROJECT
P A .
AVE ROJECT S
P . Verify that the
EMORY ARTITION
User Manual
Page 113 of 306
