7.1.3 System Components

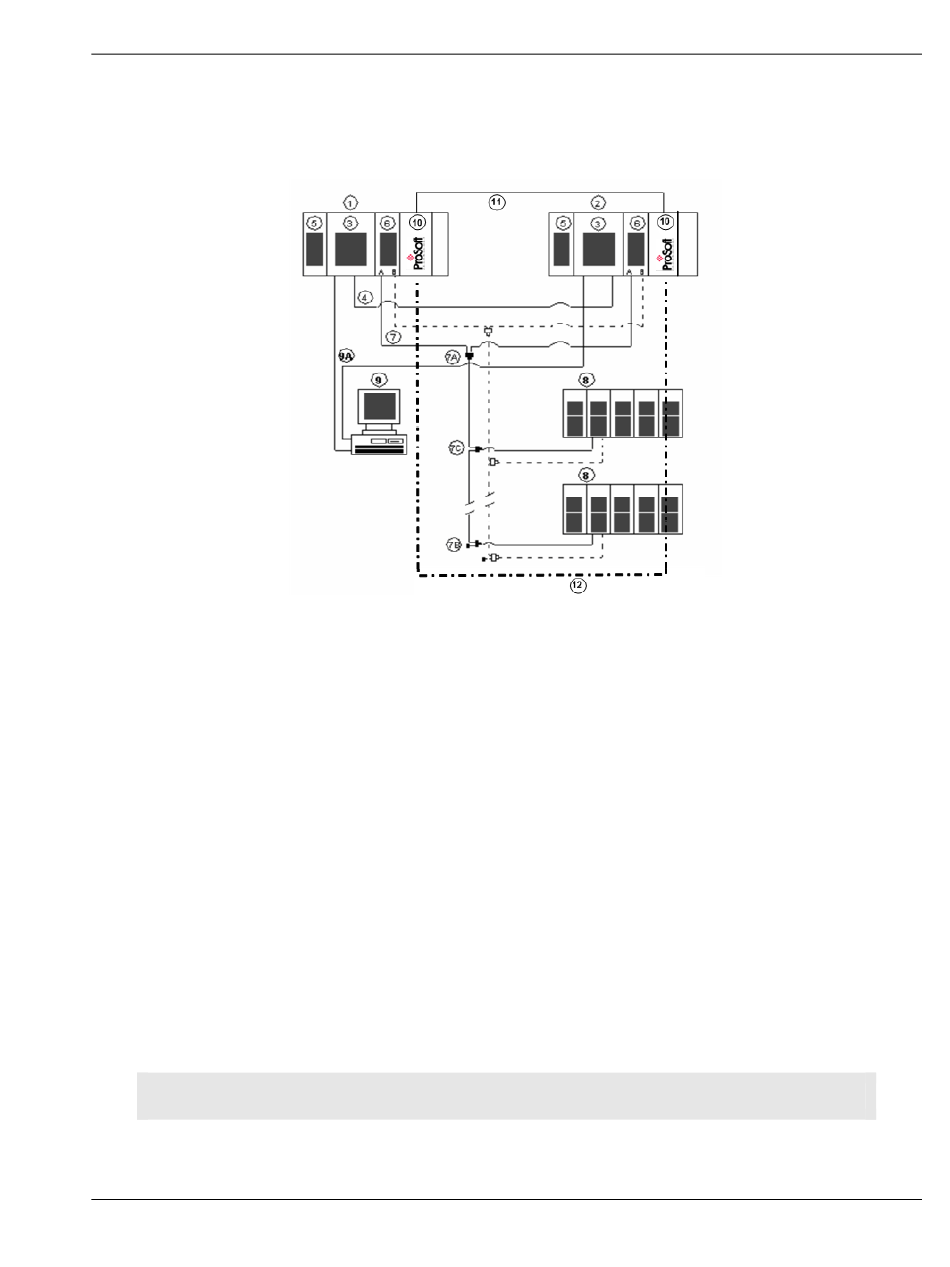

The following illustration shows the components required for a Modicon Quantum
Hot Standby with Unity system.
1 Primary PLC
2 Standby PLC
3 Modicon Quantum Hot Standby with Unity controller with integrated
coprocessor
4 Fiber Optic Cable to connect to both controllers
5 Modicon Quantum power supply module: Install power supply in first slot for
better rack layout.
6 Modicon Quantum RIO head
7 Coaxial cable with splitters (7A) (MA-0186-100), trunk terminators (7B) (52-
0422-000), and tap (7C) (MA-0185-100) for connecting the RIO heads (6)
with the RIO drops (8). The dashed connections represent a redundant
connection in the RIO network, which is not required for the Modicon
Quantum Hot Standby with Unity system.
8 Modicon Quantum RIO drop
9 Unity Pro computer connected to both controllers via Modbus or Modbus Plus
(9A)
10 PTQ-PDPMV1 HSBY modules
11 PTQ-PDPMV1 Ethernet redundancy communication cable
12 PROFIBUS network. Each PTQ-PDPMV1 placed at each network end.
Note: The 140 CRP 932 00 RIO Head unit is required for Hot Standby System to work.
