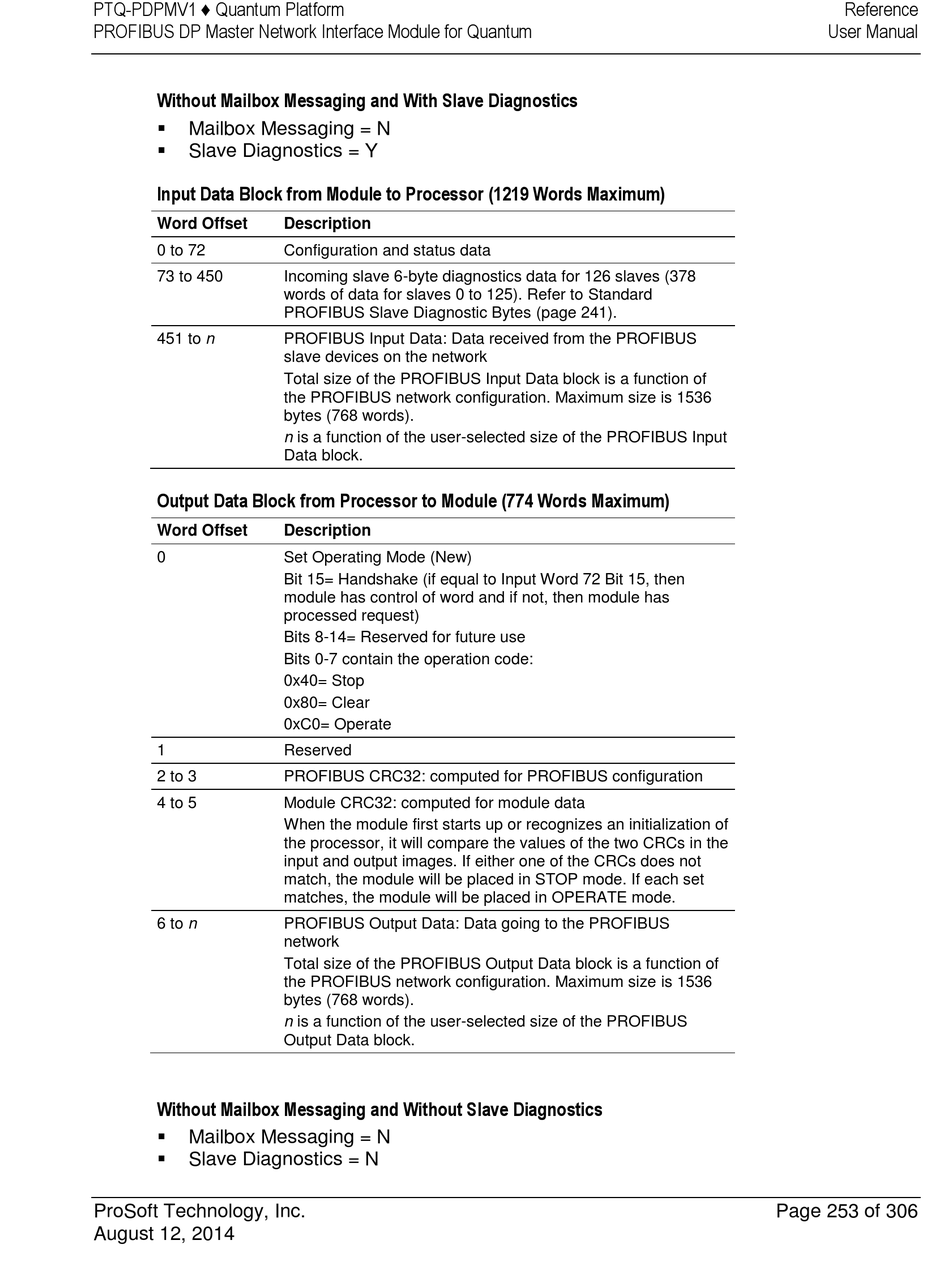

PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
Without Mailbox Messaging and With Slave Diagnostics

Mailbox Messaging = N

Slave Diagnostics = Y
Input Data Block from Module to Processor (1219 Words Maximum)
Word Offset
0 to 72
73 to 450
451 to n
Output Data Block from Processor to Module (774 Words Maximum)
Word Offset
0
1
2 to 3
4 to 5
6 to n
Without Mailbox Messaging and Without Slave Diagnostics

Mailbox Messaging = N

Slave Diagnostics = N
