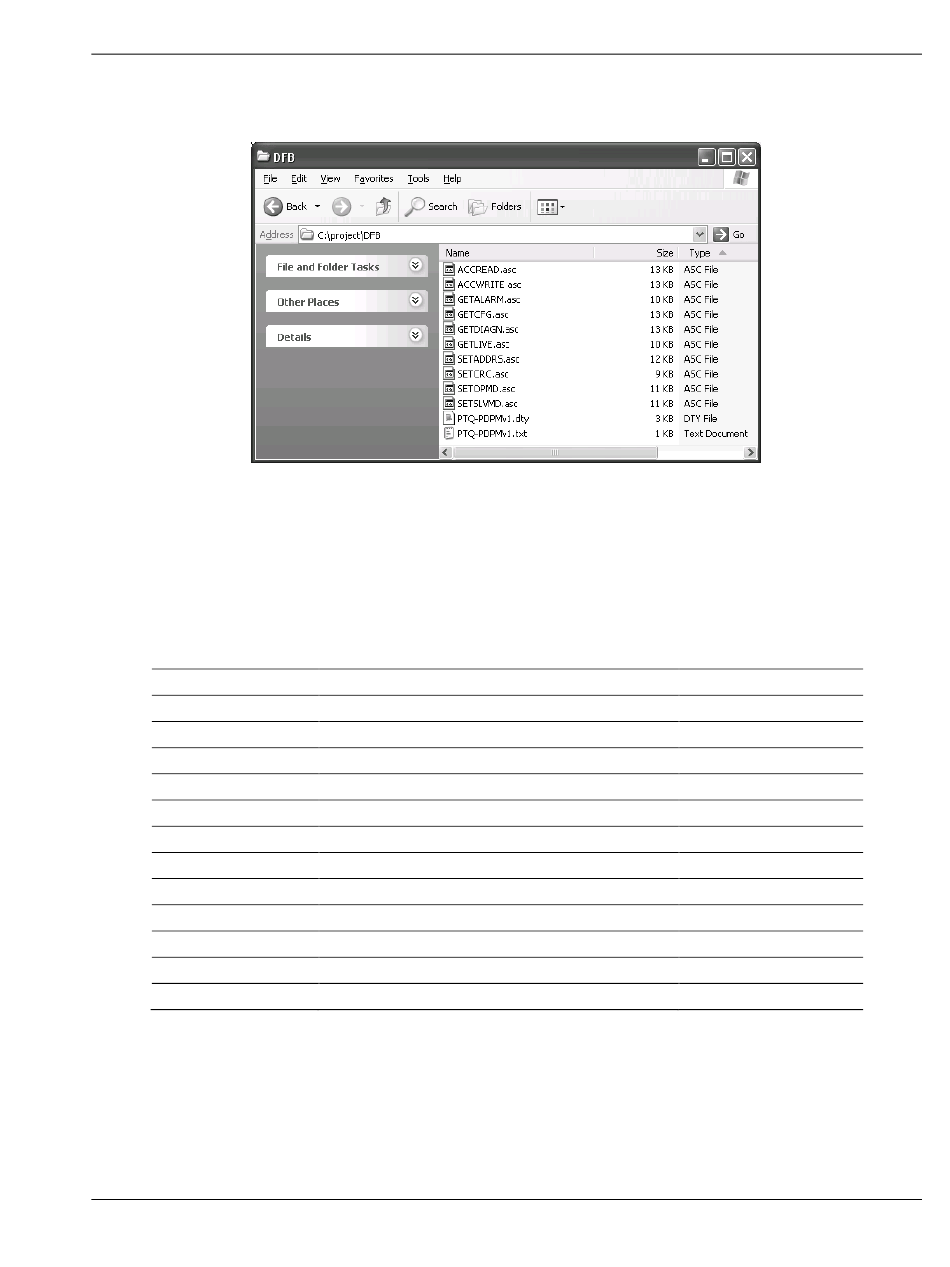

5 All the files required for your Concept application will be now located at
C:\project\DFB.
The following section provides a general overview of the files that were exported.

4.4.1 -.ASC files

Each function block is available in ASCII format. These files can be converted
through the Concept Converter tool in order to be used in the Concept project.
Refer to Backing Up the Project (page 54) for file locations.
File Name
ACCREAD.ASC
ACCWRITE.ASC
GETALARM.ASC
GETCFG.ASC
GETDIAGN.ASC
GETLIVE.ASC
SETADDRS.ASC
SETCRC.ASC
SETOPMD.ASC
SETSLVMD.ASC
SETSLVS.ASC
ColdBT.ASC
1
Optional means that you should import this function block only if your application
requires that specific mailbox. The status and PROFIBUS data will be available
even if no optional mailbox function blocks are imported into your project. The
SETCRC.ASC function block is required to synchronize the input and output
CRCs (page 128) while configuring the module.
ProSoft Technology, Inc.
August 12, 2014
Description
Acyclic Read Mailbox
Acyclic Write Mailbox
Alarm Mailbox
Get Configuration Mailbox
Get Diagnostics Mailbox
Get Live List Mailbox
Set Slave Address Mailbox
Set CRC (not mailbox - used to sync CRCs)
Set Operating Mode Mailbox
Set Slave Mode Mailbox
Start/Stop Slaves Dynamically
Remote Coldboot from PLC
Configuring the Processor with Concept 2.6
Required/Optional
Optional
Optional
Optional
Optional
Optional
Optional
Optional
Required
Optional
Optional
Optional
Optional
