PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
4 List all optional mailbox functions that will be required for your application.
Repeat steps 2 and 3 for each required mailbox. This setup procedure will
consider (as an example) that only the Set Operating Mode mailbox is
required. So the following steps (5 and 6) will repeat the same procedure for
the Set Operating Mode mailbox function block:

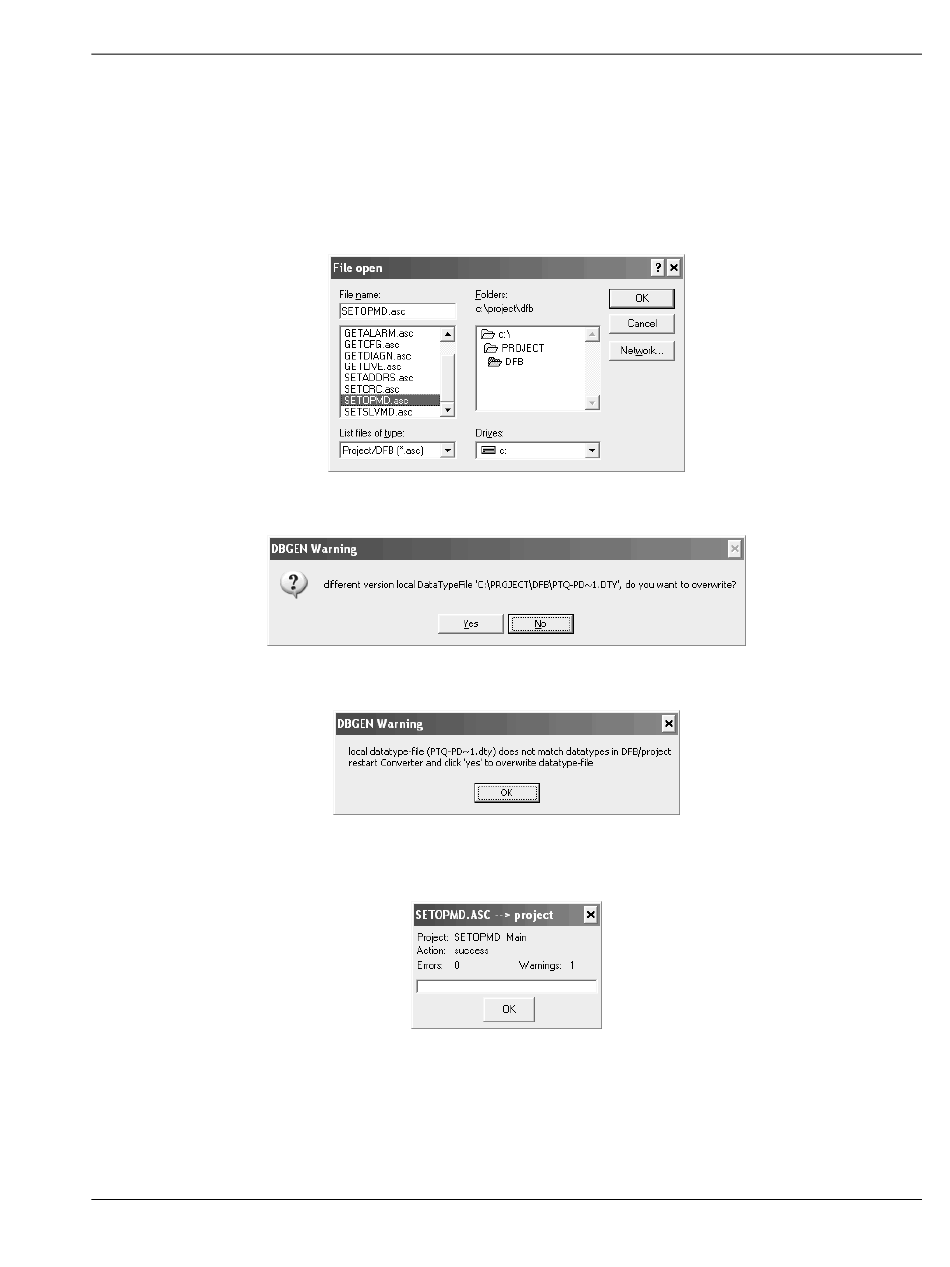

5 Click F
ILE
folder.
After you click OK the following warning message will be displayed. Click N
Then the following warning message is displayed. Click OK.
6 After the import procedure is concluded the following window is displayed.
Click OK.
ProSoft Technology, Inc.
August 12, 2014
-I . Browse the SETOPMD.ASC file in the C:\project\DFB
MPORT
Configuring the Processor with Concept 2.6
Page 111 of 306
