PTQ-PDPMV1 ♦ Quantum Platform
PROFIBUS DP Master Network Interface Module for Quantum
You may also view the network configuration using a PC serial port connection
and an ASCII terminal program (like Windows HyperTerminal) by selecting [@]
(Network Menu) and [V] (View) options when connected to the Debug port. For
more information on serial port access, see the chapter on Diagnostics and
Troubleshooting (page 223).
9.4.2 RS-232 Configuration/Debug Port
This port is physically an RJ45 connection. An RJ45 to DB-9 adapter cable is
included with the module. This port permits a PC-based terminal emulation
program to view configuration and status data in the module and to control the

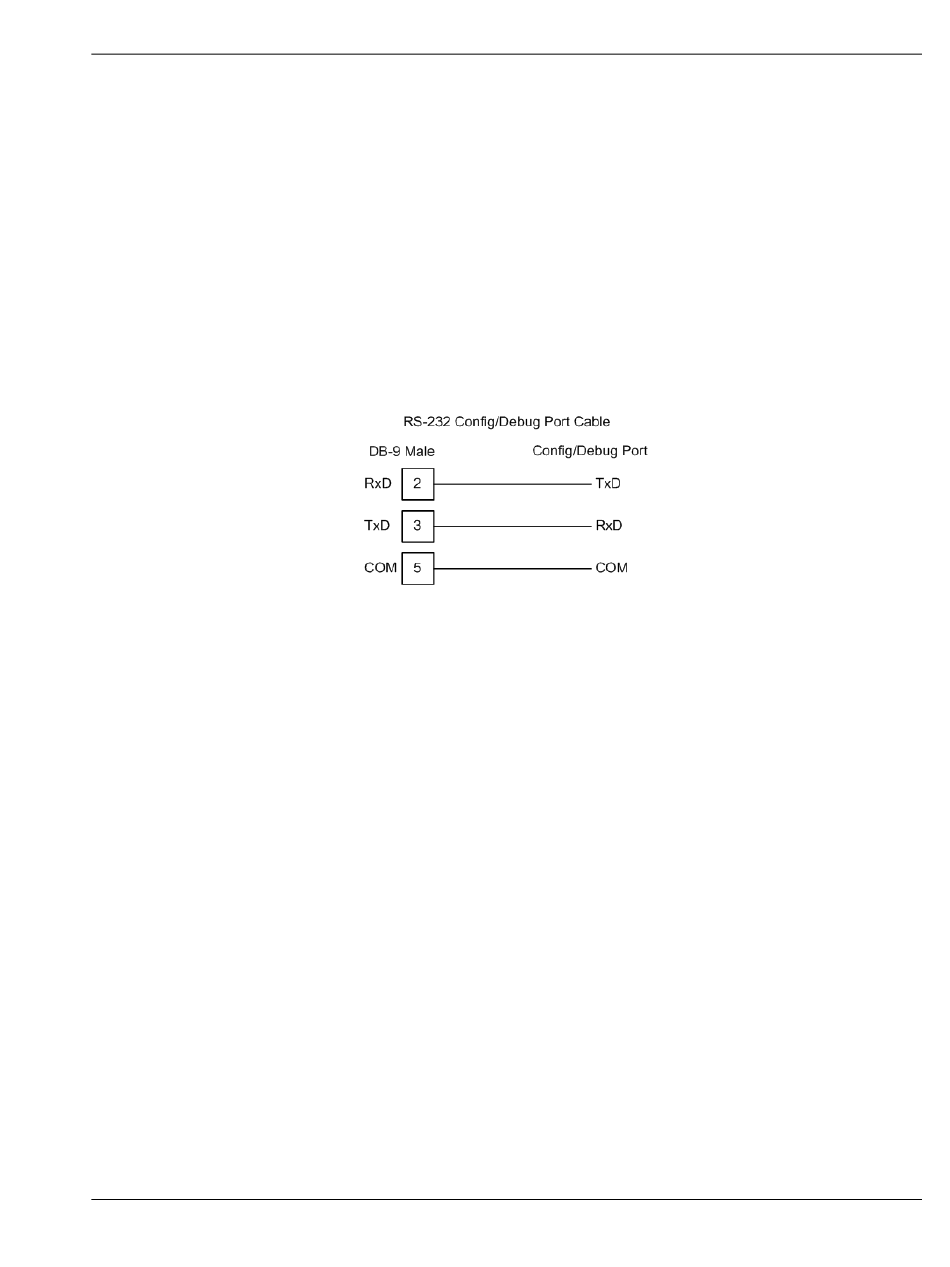

module. The cable pinout for communications on this port is shown in the
following diagram.
